6. Gently pull on the wire until you can grab the flexible wire with your fingers.
This will be easier if you turn the stick shaft on the side opposite the point
where the wire exits.
7. Slide the stick top onto the stick shaft, simultaneously pulling the flexible wire
completely through.
8. Tighten the grub screw on the stick top.

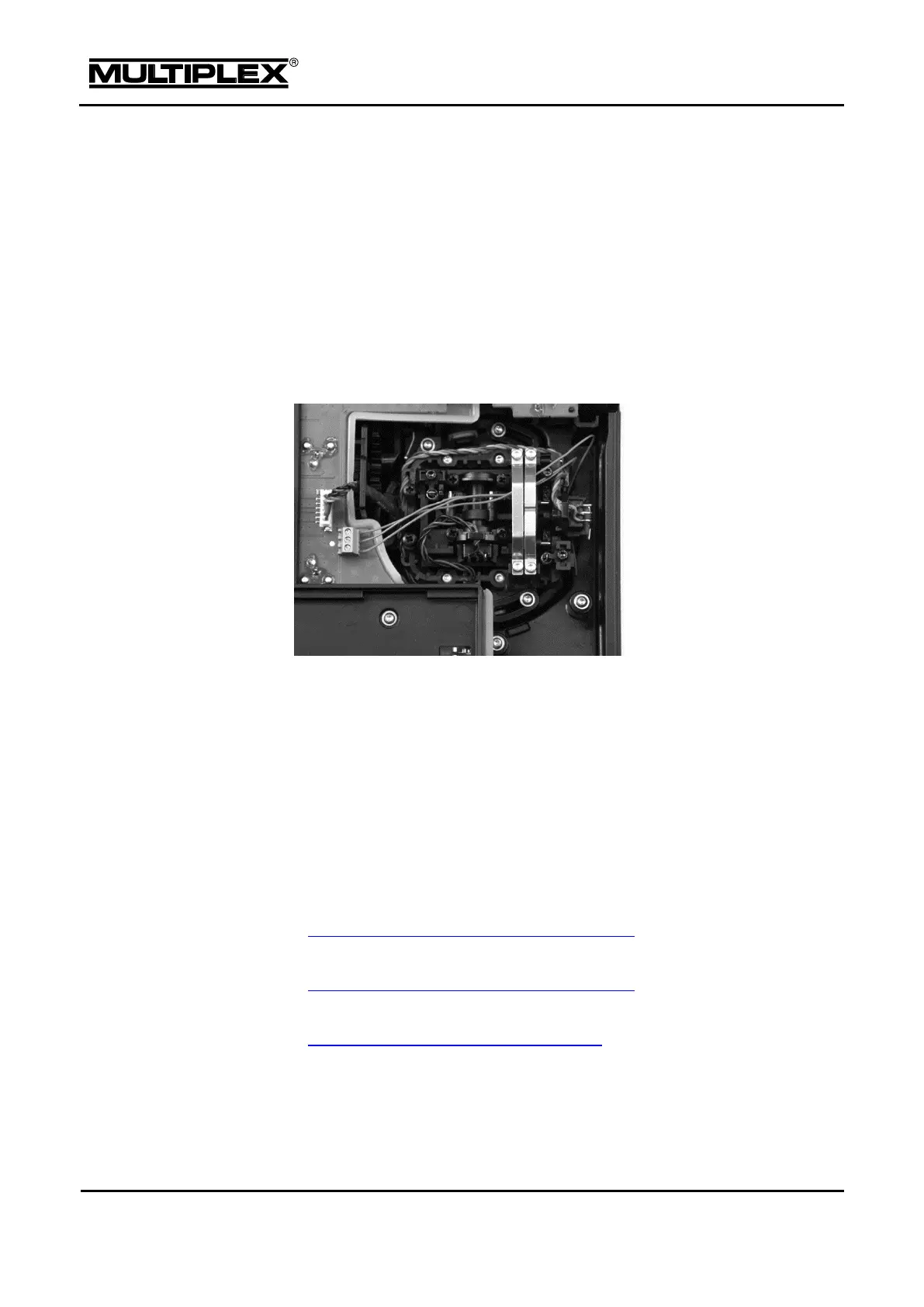

9. You can see one three-pin terminal clamp next to every stick unit on the main
circuit board of the transmitter. Remove the wire.
Clamp the blue flexible wire to the centre terminal and the red wire(s) to the
output terminal(s).
10. Insert the battery and close the transmitter.
11. Switch on the transmitter.
12. Verify that the switch operates correctly.
To test this, assign the new stick switch to any switched function in the Setup >
Switch menu.
Stick tops
The standard tops can be replaced with the following stick tops (see also section
10.2 "Accessories" on page 213):
Aluminium stick top, long, with 2-position switch
Item No. 85940
Aluminium stick top, long, with 3-position switch
Item No. 85941
Aluminium stick top, long, with push-button
Item No. 85942
