ROYAL evo
Page 84

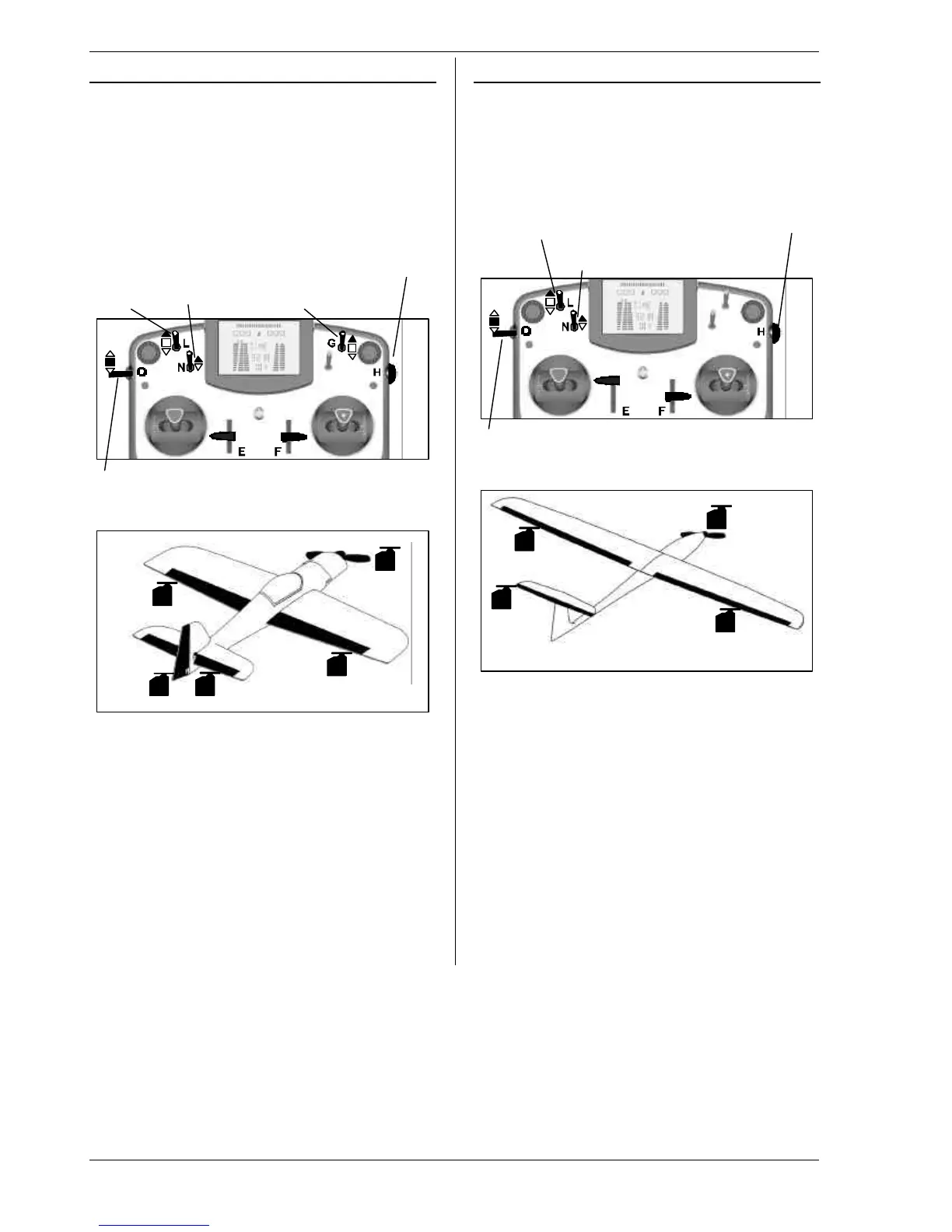

12.6. Template: ACRO
suitable for:
Power models such as F3A (formerly RC1), F3AX
Fun-fly models
Typical models:
Sky Cat (fig. 12.5.2.)
12.6.1. Assigned transmitter controls and switches
Assignment used: POWER
not used: Spoiler (E), Flap (F)
A : Sum timer ´ controlled by throttle (‡)
Dual-Rates Combi- Mix-1 Throttle-cut
A/E/R Switch Snap-Flap (button)
OFF OFF OFF
Phase 1-3
1: NORMAL
12.6.2. Assigned servos / receiver outputs
1
23
4
5
AILERON+
Rudder ELEVATR+
AILERON+
Throttle
12.6.3. Fine-tuning
(for ACRO)
!!
Steps a. and b. (è 12.4.)
c. Activate throttle - elevator mixer
select G, ELEVATR+, input Thr -Tr ,
set 10% down elevator
For fine adjustment in flight assign the value to the
3-D digi-adjustor (è 10.2.2.).
d. Activate flap - elevator mixer
select G, ELEVATR+, input Flap,
set Trvl' = 5%, Trvl# = 10%
For fine adjustment in flight assign the value to the
3-D digi-adjustor (è 10.2.2.).
12.7. Template: HOTLINER
suitable for: F5B
Typical models: Bonito, Akro, Akro Star
12.7.1. Assigned transmitter controls and switches
Assignment used: POWER
not used: Combi-Switch (N)
Spoiler (E), Flap (F)
A : Sum timer ´ controlled by throttle (‡)
Dual-Rates Combi- Throttle-cut
A/E/R Switch (button)
OFF OFF
Phase 1-3 Spoiler
1: NORMAL retracted
12.7.2. Assigned servos / receiver outputs
1
2
5
4
AILERON+
Throttle
AILERON+
ELEVATR+
12.7.3. Fine-tuning
!!
Steps a. and b. (è 12.4.)
c. Ailerons raised as landing aid
This function is already programmed in the tem-
plate, and is controlled by the Spoiler transmitter
control (slider E). You may have to adjust the pitch
compensation ratio (15%) In the ELEVATR+ mixer.
d. Activate throttle - elevator mixer
select G, ELEVATR+, input Thr -Tr ,
set 10% down elevator
For fine adjustment in flight assign the value to the
3-D digi-adjustor (è 10.2.2.).
