tion. The corresponding channel number is dis-
played (e.g. K3 for aileron).
Check the movement directions for all control sur-
faces. Wrong directions can be reversed by press-
ing REV/CLR (# or ').
Attention: Quick-Select is not possible, if the
ROYALevo is switched on with “No RF”.
Repeat steps 4. and 5. until all desired channels are as-
signed. Now you can return to the status display and
start the training.
!
Be careful when assigning throttle if your engine
is running or the model is electrically powered!
Make sure not to endanger other modellers, spectators
or models by your engine bursting into life.
13.4.3. The ROYALevo as pupils transmitter
Important:
If the ROYALevo works as pupils transmitter,
the trims are not operative (the teacher will trim the
model).
The following transmitters can be used as “Teacher”:
ROYALevo, Commander mc, PiCOline,
PROFI mc 3010/3030/4000
Some older MULTIPLEX transmitters can also be used as
teacher transmitter. If your teacher transmitter is not
mentioned above, please ask our after sales service.
1. Select the sub-menu training.
2. Select
Mode = Pupil M, if the teacher transmitter needs
signals in MULTIPLEX format.
Servo centre = 1,6 ms
Mode = Pupil U, if the teacher transmitter needs
signals in UNIVERSAL format.
Servo centre = 1,5 ms
NOTE:
If the ROYALevo is switched OFF without setting the
training mode to OFF, it will directly go to the Training
menu when you switch ON for the next time (safety).

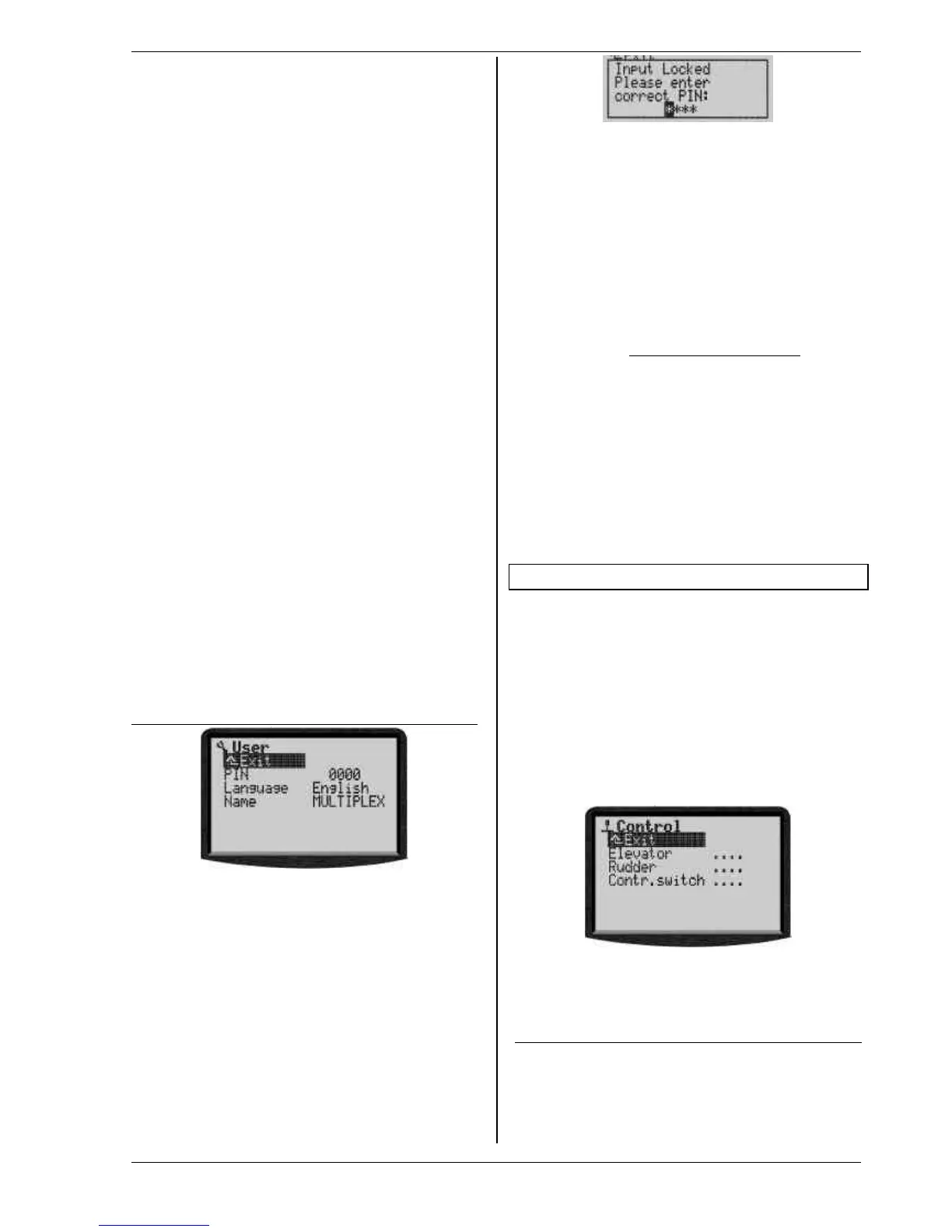

13.5. Sub-menu “User”
13.5.1. Parameter „PIN“
ü global effect
The PIN can be used to protect the settings stored in
your transmitter. If the PIN is activated, the operator can
view the set values, but not change them.
PIN=0000
If you enter this PIN, the values in the transmitter are
not protected against changes.
PIN = **** (four digits)
The PIN must contain at least one digit which
is not „0“!
If you enter a PIN, the lock takes effect next time you
switch the transmitter on. You can leaf through all the
menus, but as soon as you attempt to change a setting,
the following message appears:
If you enter the PIN correctly, the block is lifted. It is only
activated again when you next switch the transmitter
on.
13.5.2. Parameter „Language“
ü global effect
As standard the ROYALevo contains two language sets
for use in display texts. The default for the primary lan-
guage is ENGLISH, and this is selected as active lan-
guage.
The second default language is GERMAN.
In the menu L, USER you can invoke the LANGUAGE
parameter to select either of these two languages.
On the Internet (http://www.multiplex-rc.de/ you will
find a link to the page ROYALevo INFO. On this page we
will make alternative language sets available for you to
download. These files can be installed in the transmitter
using the ROYALevo PC program, and take their place as
the second language.
13.5.3. Parameter „Name“
ü global effect
If your transmitter is new, you will find the name MUL-
TIPLEX in this field. You can enter your own name of up
to 16 characters. Your name then appears in status dis-
play 1 (è 9.2.).
14. Main menu „Controls“ H
By transmitter control we mean all the physical control
elements on the transmitter which are assigned to a
model function. These may include sticks, sliders and
switches. For instance, if you assign a switch for operat-
ing the tow-release, this constitutes a transmitter con-
trol. Which transmitter controls are present, and which
elements are to be used to operate them, is determined
in the menu L -Assignment, Controls.
The Assignment Controls menu is dynamic, i.e. it dis-
plays only those controls which are used in the active
model. If you are operating a simple model which only
features rudder and elevator controls, the menu will
look like this:
Section 14.2. informs you first which programmable
characteristics (parameters) are possible for the individ-
ual transmitter controls. Paragraphs 14.2.1. to 14.2.10.
describe the individual parameters in detail.
14.1. Sub-menu „Control switch“
I Affects active model only
Range -100% to 100%
Default 0% (control centre)
always appears at the end of the controls list
