Disassembling and replacing modules

User manual 57106_hdb_en_13 37 / 94

Installing the new mod-

ule group

1 | Flap the locking levers of the module group upwards.

2 | Plug the module group in the gap between the modules.

3 | Slide the module group with the help of the guide strips at both sides onto

the DIN rail.

4 | Flap the locking levers of the module group downwards.

5 | Plug in the electronic module.

6 | Wire the new module group.

Now you can bring your system back into operation.

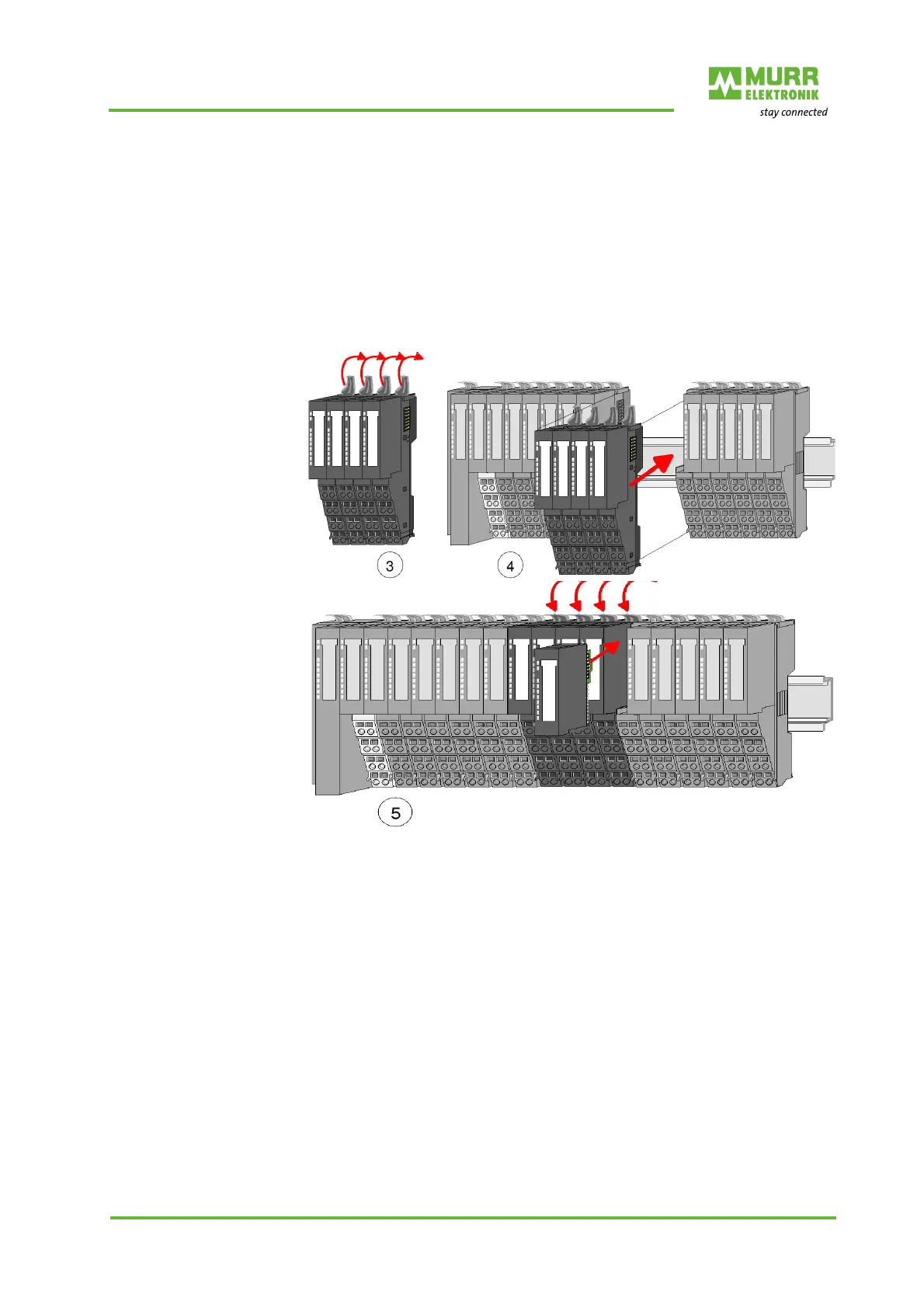

Fig. 7-7: Mounting of the module group
