Installation
User manual 57106_hdb_en_13 39 / 94
Cable data
power module
U
max.
: 30 V
I
max.
: 10 A
Cross-section: 0.08 – 1.5 mm
2
(AWG 28 – 16)

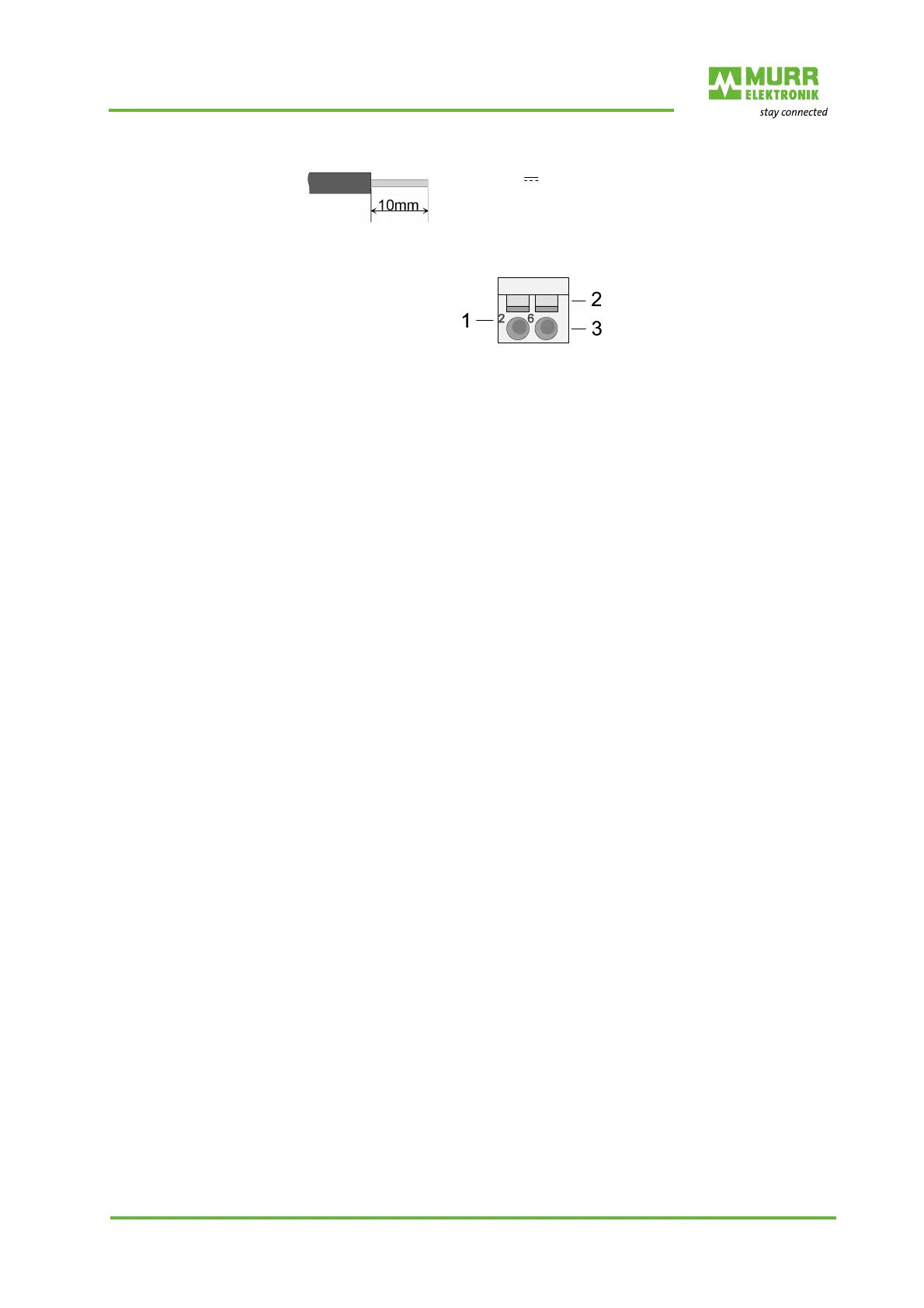

Stripping length: 10 mm
1 Pin no. on the plug connector
2 Unlocking device for screwdriver
3 Connection opening for wire
