Configuration/settings
User manual 55170_hdb_en_13 114 / 145
Creating project 1

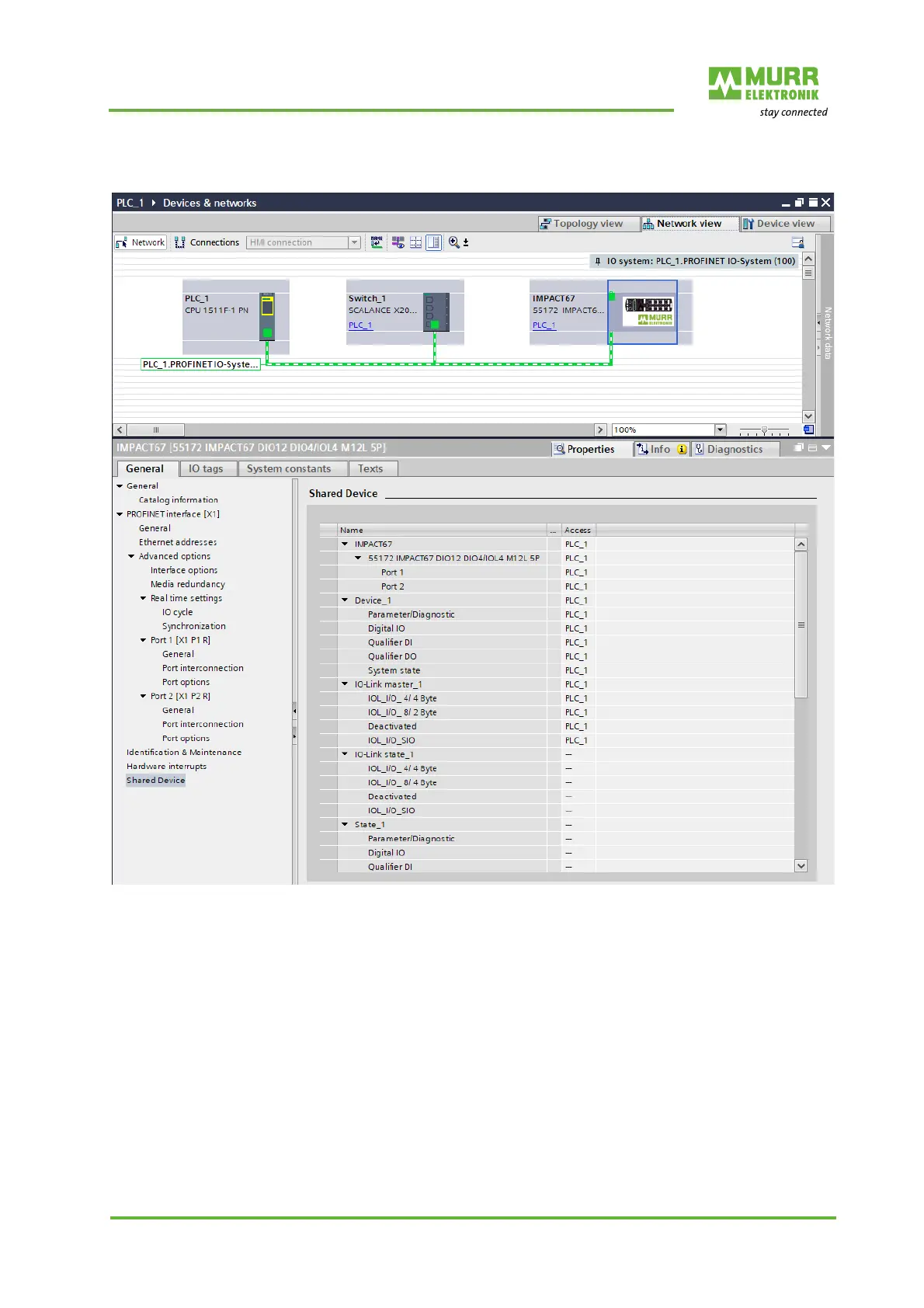

Fig. 8-42: Setting PLC_1 access
1 | Set up a project in the TIA portal with the name of “PLC_1”.
2 | Add a controller.
3 | Add the IMPACT67 module as well as an IO-Link state and a State.
4 | Assign the name “PLC_1“ to the controller.
5 | Assign the IMPACT67 module to controller “PLC_1“.
6 | Select theIMPACT67 module to navigate to the Shared Device menu item
and
7 | set access to the “PLC_1“ controller.
