Mounting

User manual 55170_hdb_en_13 36 / 145

Module fastening

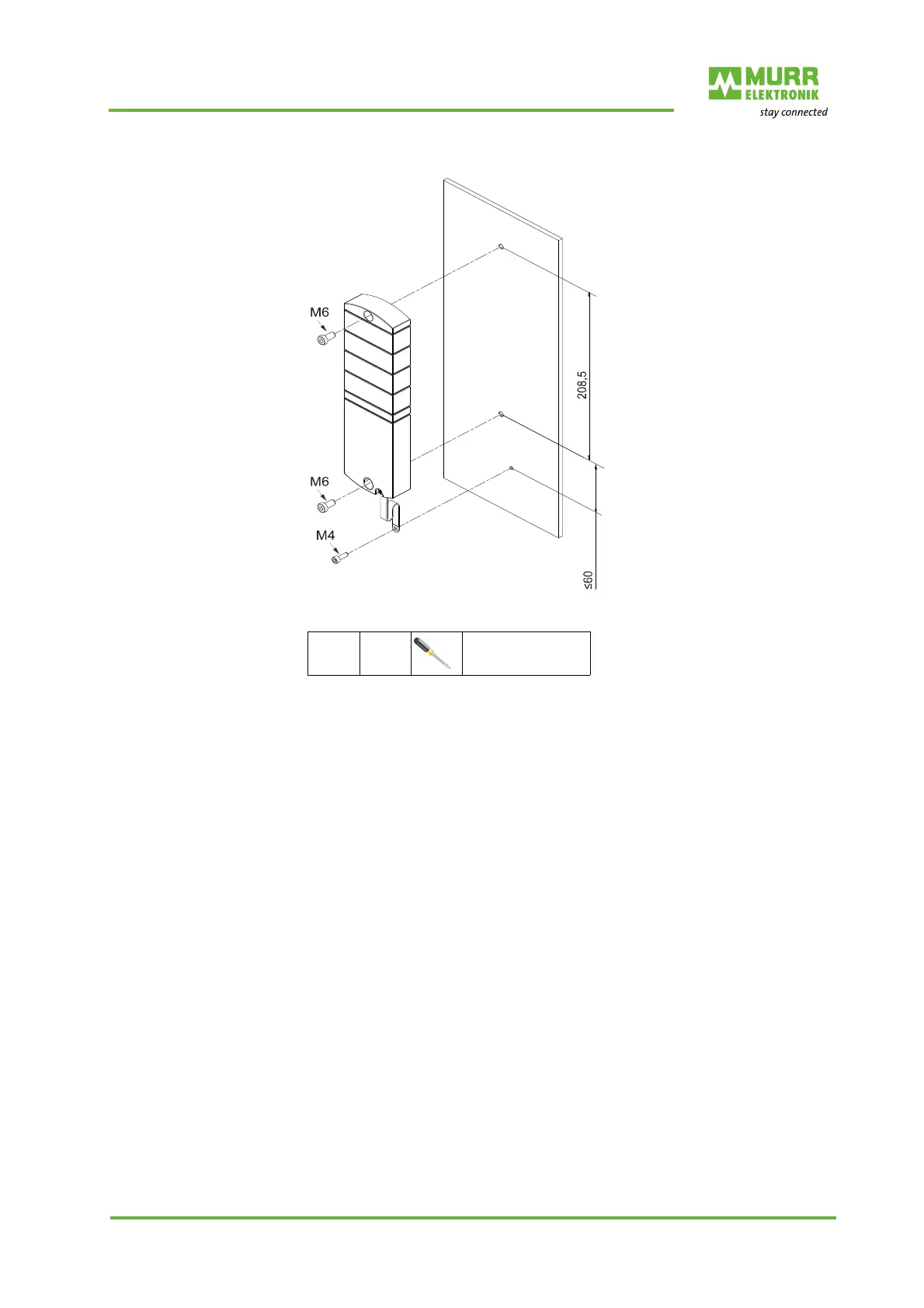

Fig. 5-3: Fastening dimensions in mm

Mounting Mount the module in the order indicated below:

1 | Slightly tighten the top M6 bolt.

2 | Align housing.

3 | Slightly tighten the lower M6 bolt.

4 | Tighten screws M6 according to the torque.

5 | Grounding the module:

Attach the grounding strap (see chap. 5.4.1 "Functional ground")

M6 3 Nm

Art.-No.

7000-98001-0000000
