The Plug-in area displaying the Instrument Form.
5.7. Sampler
When loading a sample from the Loops and One-shots tab in the Browser, the sample will be auto-
matically loaded into the Sampler so it can be played immediately. Important parameters can be
accessed via the GUI, but all parameters for the Sampler can be accessed via the Plug-in Panel or
a connected keyboard.

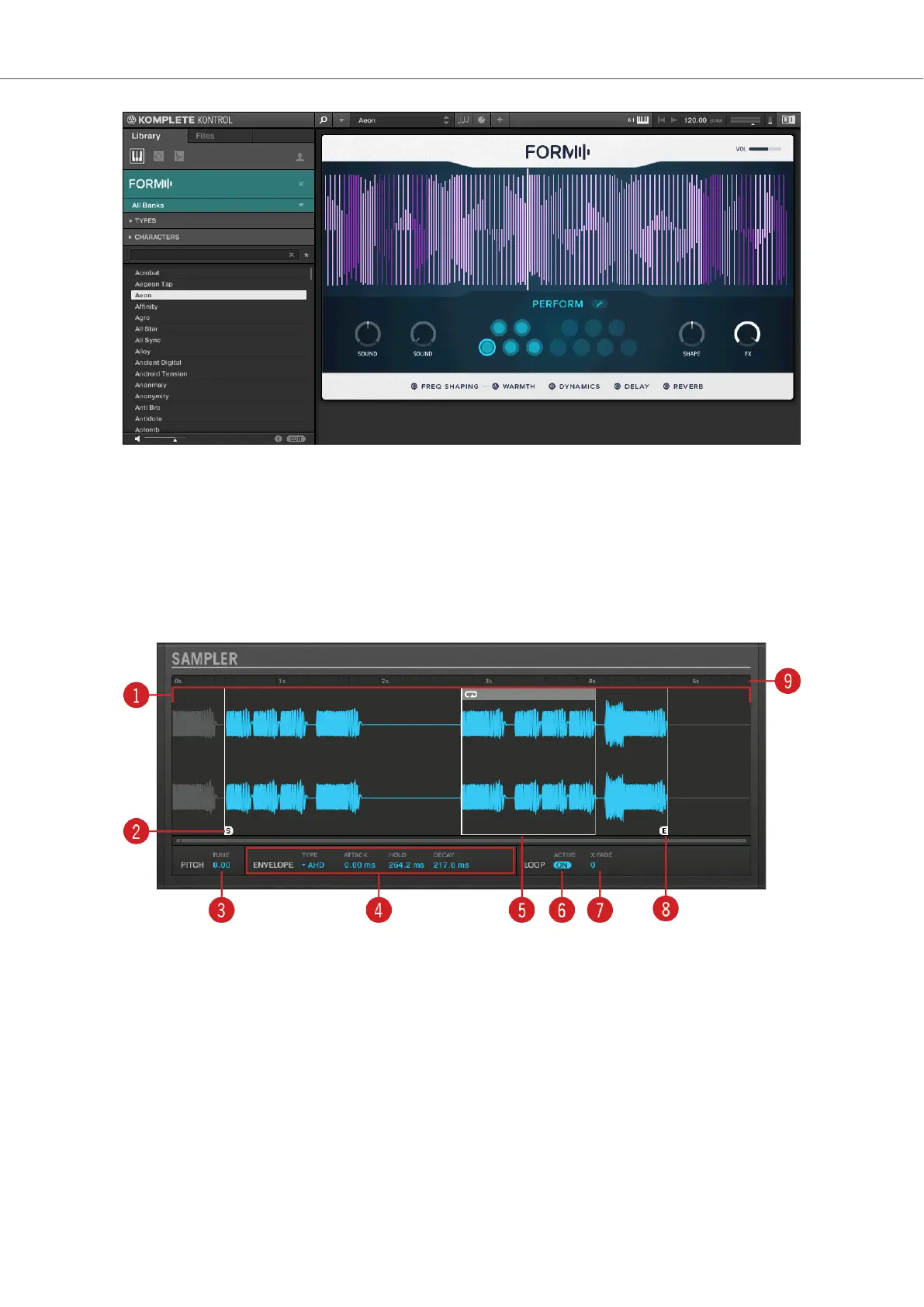

Sampler.
(1) Waveform display: Shows the waveform of the Sample.
(2) Start: Determines the Start point of the sample. When Loop is active, the Loop Point deter-
mines the start of the loop.
(3) PITCH: Defines the pitch of your sample and adjusts the pitch within three octaves up or down.
As this is a traditional sampler.
(4) ENVELOPE: Selects one of three envelope types (One-shot, AHD and ADSR). For more infor-
mation, refer to Envelopes.
(5) Loop Point: Sets the point at which the loop will start playing. The Loop Point can be set inde-
pendently of the Start Point.
Software Overview
22
