NEC NC1600C - Page 251

9-11
“Confidential, Do Not Duplicate without written authorization from NEC.”

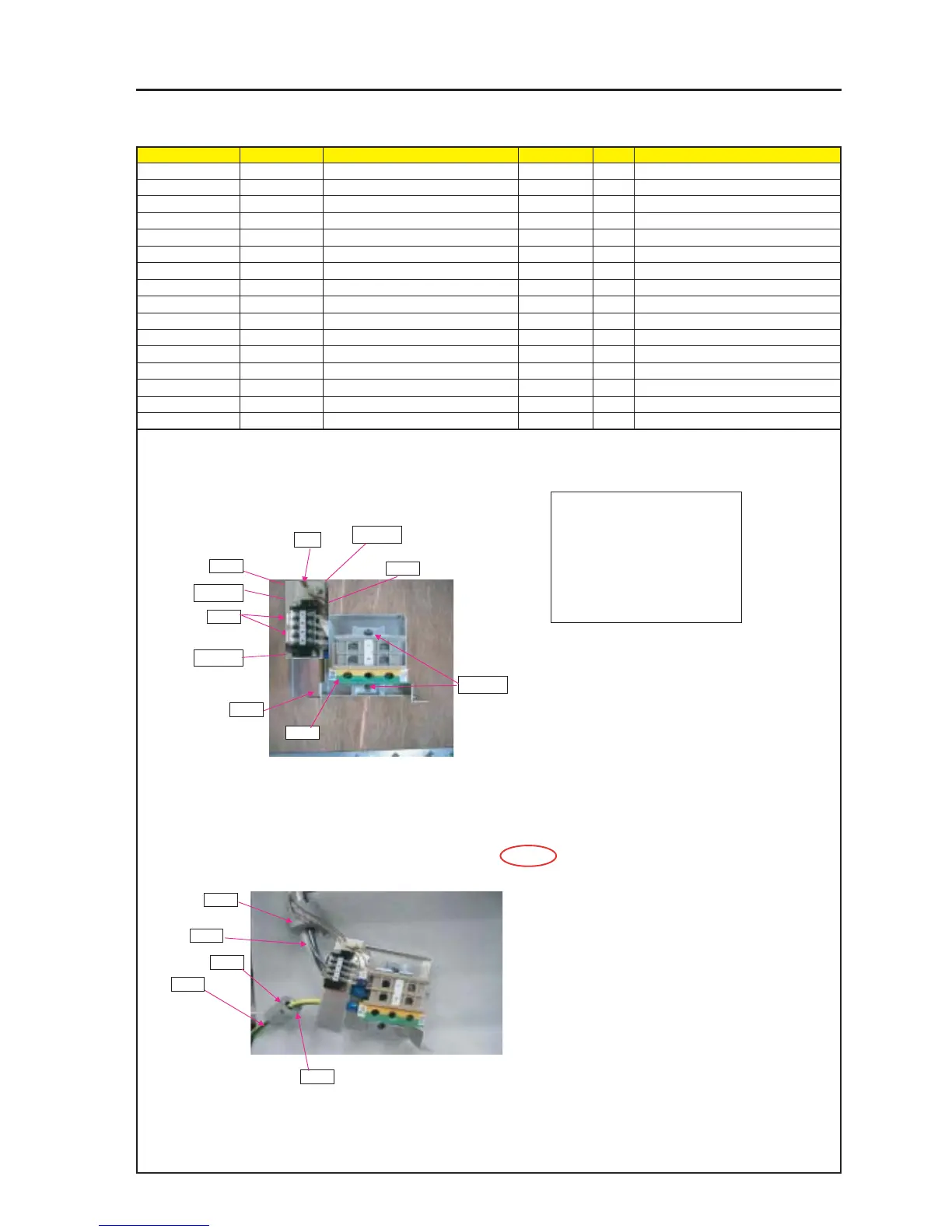

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 TERMINAL SK10-4J UL 7N120007 1
SRW112 SCREW,PL-CPIMS*3*8*3GF 24V00111 2 Torque check
PRT2 TERMINAL SK10-2S 7N120008 2
PRT3 CABLE CLIP(FCA-10) 24C02841 1
SRW011 SCREW,PL-CPIMS*3*8*3GF 24V00111 1 Torque check
IL CN4P(IL)150W,1061-26 7NW4N004 1
GND CN WIRE(E)225W,1283-8 7NN1N047 1
PRT4 MBT-60X2P+60AEX1P 7N120012 1
PRT5 BRACKET(TERMINAL BOARD) 24H60041 1
SRW136 PL-CPIMS*4*10*3KF 24V00461 2 Torque check
PRT6 CORE E04SR301334 6N160020 1
PRT7 CORE E04SR401938 6N160024 1
PRT8 BAND (L=100,T18R) 24C09121 1
TERMINAL BOARD ASSY1
Take out a SCREW from TERMINAL,
and tighten it up.
CONNECTOR (IL) ⇒ TERMINAL
1 1
2 2
3 3
4 4
8 places
Tighten Torque : 5~7kg•cm
* Tighten Torque : 50±5kgf•cm
* Check the TERMINAL COVER places the base of the
TERMINAL after mounting it.
SW
GND
PRT6
PRT7
PRT4
SRW136
PRT5
1 Mount SK10-2S after removing TERMINAL COVER, and mount it on BRACKET(TERMINAL BOARD) after
placing REAR COVER back.
2 Mount CABLE CLIP on BRACKET(TERMINAL BOARD)
4 Mount CABLE SW and GND on TERMINAL BOARD ASSY
5 Fasten the ferrite core to the CABLE (GND) by means of a wire harness band.
The surplus part shall be cut off.
3 Mount TERMINAL on BRACKET(TERMINAL BOARD)
PRT1
PRT2
PRT3
IL
SRW011
SRW112
SRW112
PRT8
SAFETY
Mounting the CABLE should be used Specified Torque.
