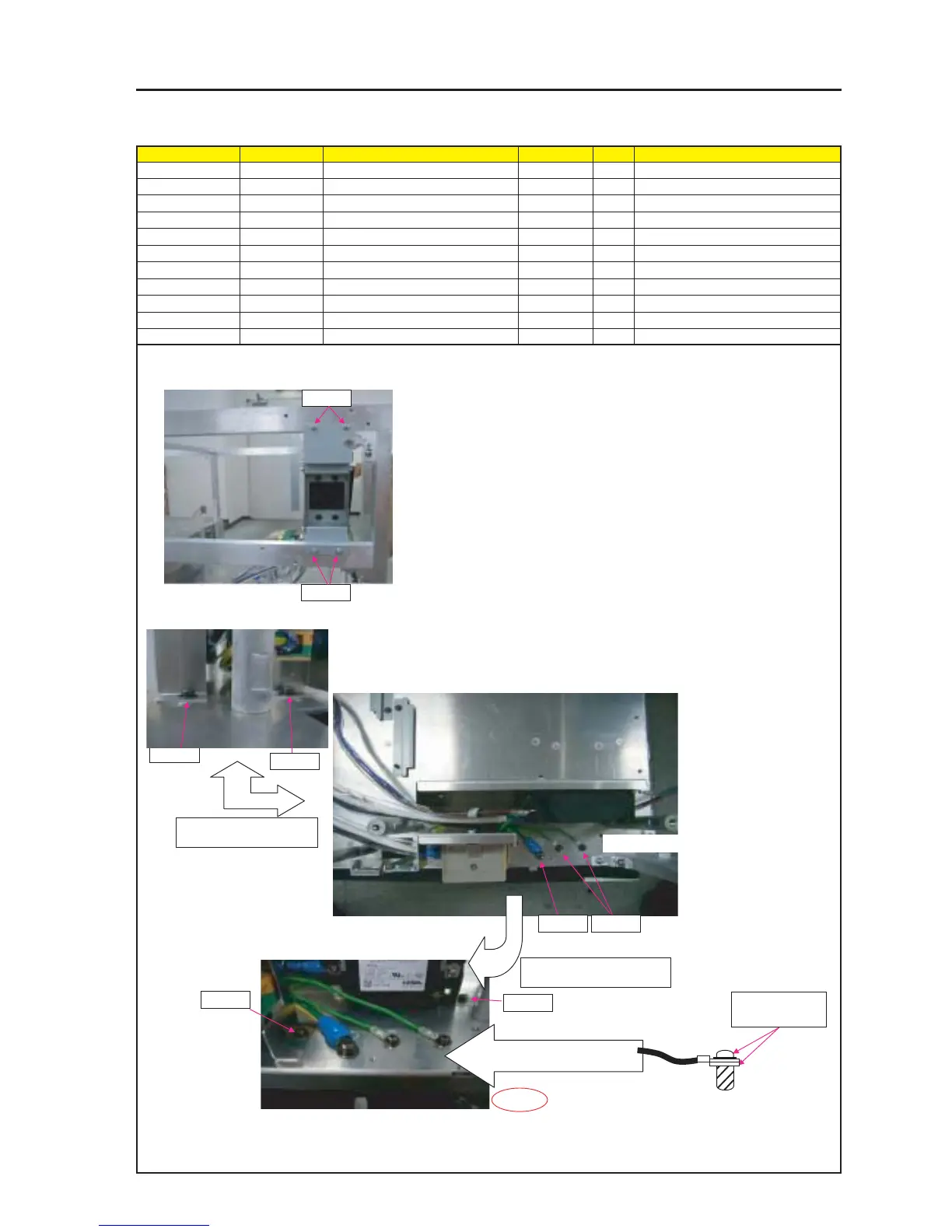

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
SRW052 SCREW,PL-CPIMS*3*8*3GF 24V00111 4 Torque check
SRW037 PL-CPIMS*4*10*3KF 24V00461 2 Torque check
SRW036 PL-CPIMS*4*10*3KF 24V00461 2 Torque check
SRW146 PL-CPIMS*6*14*3KF 24N02981 1 Torque check
SRW147 WASHER,PIWA*6*3KF 24V00871 1
SRW145 PL-CPIMS*4*10*3KF 24V00461 2 Torque check
SRW134 PIWA*4*3GF 24V00661 2
TERMINAL BOARD ASSY2
1 Attach CIRCUIT BREAKER ASSY on FLAME.
SRW052
SRW036
3 Attach TERMINAL BOARD ASSY on FLAME.
2 Attach FILTER ASSY on FLAME.
SRW052
SRW037
SRW146 SRW145
4 Attach the GND on FLAME ASSY.
SRW036
SRW037
* On the left hand side viewed
form the LENSE side.
* On the right hand side
viewed form the LENSE side.
SRW146/SRW147
SRW145/SRW134
Nipping WIRE CONNECTOR
betweem WASHER and SCREW.
SAFETY
* Check the CABLE loosess.
