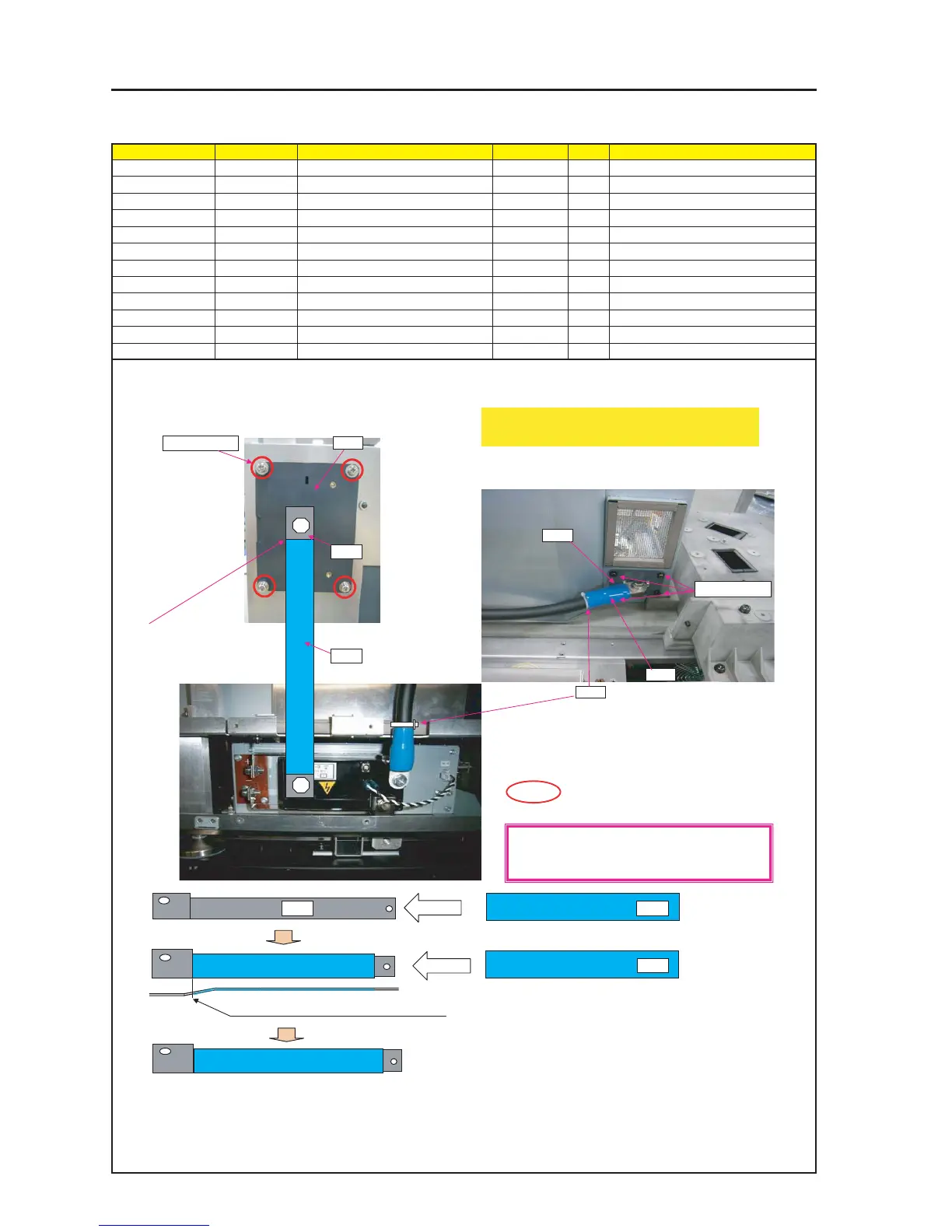

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 TERMINAL PLATE(PA67) 24BS7801 1
SRW010 PL-CPIMS*4*16*3GF 24V00471 4 Torque check
PRT2 TERMINAL PLATE(PA67) 24BS7801 1
SRW009 PL-CPIMS*4*10*3KF 24V00461 4 Torque check
L+ CN WIRE(L+)525W,1284-2/0 7NN1N049 1
PRT3 BAND (L=100,T18R) 24C09121 2
PRT4 PLATE(LPS) 24H61311 1
PRT5 TUBE(ST-110DG UL) 9R050007 2 245±5mm
LAMP2
PRT1
PRT2
1 Attach TERMINAL PLATE on LAMP COVER S ASSY.
SRW010 X4P
SRW009 X4P
L+
PRT3
3 Put "L+" INSULATION COVER over the TERMINAL, and band
them. Cut the excess off.
4 Cover the plate (LPS) with a tube (ST-110DG UL).
Put an item, which has been shrunk by a drier (a heater),
in between the cathode side terminal and the igniter.
Use various accessory screws (M10) for fixing.
Tightening torque : 250±10kgf•cm
PRT4
PRT5
PRT4
Deflate it using drier.
Be careful not to burn yourself.
PRT5
PRT5
Deflate it using drier.
Be careful not to burn yourself.
Deflate it using drier.
Be careful not to burn yourself.
The TUBE (ST-110DG UL) shall be used in advance to
cover the PLATE (LPS). After this tube has been made
to shrink, Use another tube to cover the plate and shrink
this tube. (Double coverage)
Attach CABLE using the specified torque.
SAFETY
INSERT
INSERT
Shrinkage shall fit the embossments (approximately 30mm).
IGNITER
LAMP TERMINAL side
(CAUTION)
Do not nip the TUBE.
2 Attach TERMINAL PLATE on LAMP COVER S ASSY.
Remove M10, and attach CN WIRE(L+).
Torque : 250±10kgf•cm
