9-80
“Confidential, Do Not Duplicate without written authorization from NEC.”

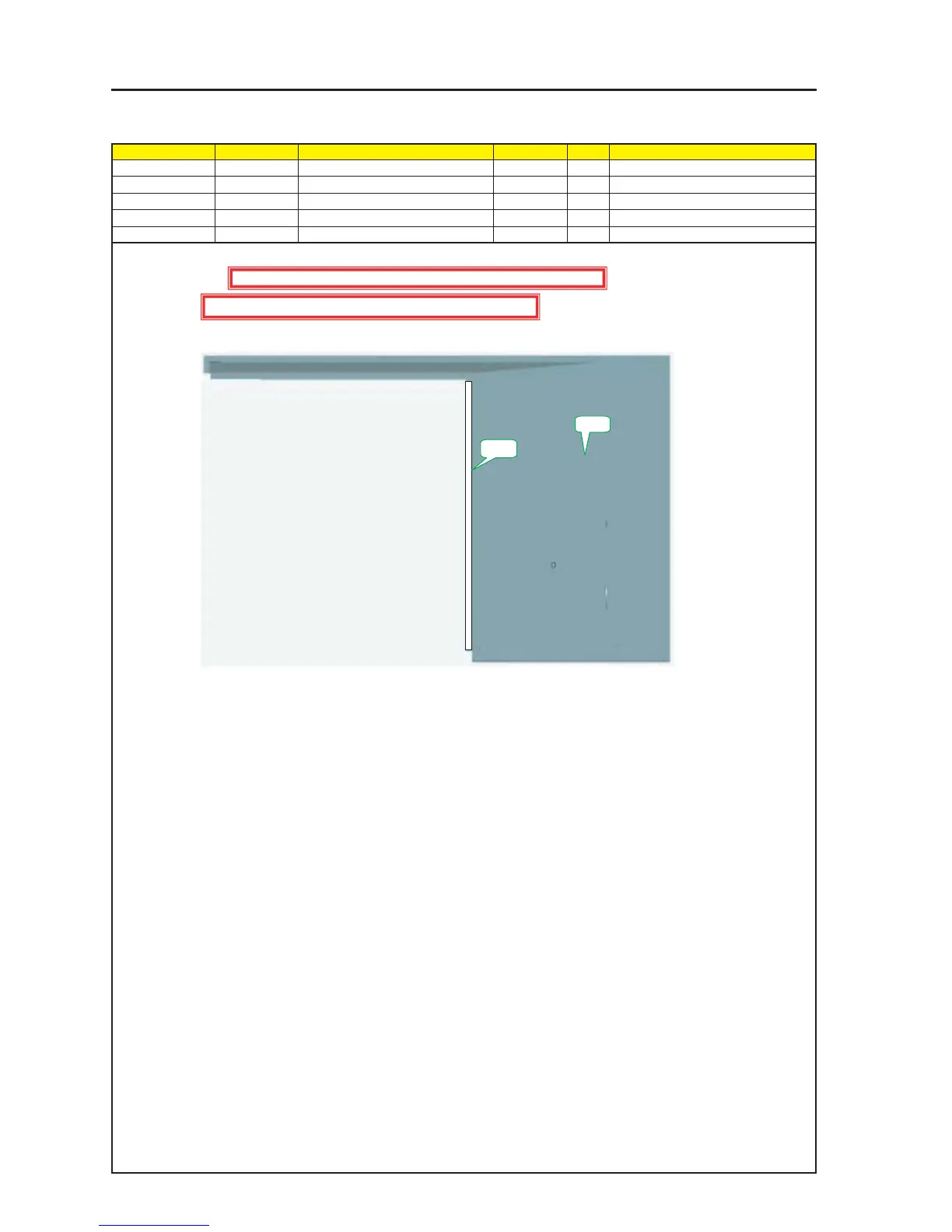

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 FRONT PANEL A ASSY 24PS5241 1
PRT2 GASKET(STG0.5-8) 24C07561 410mm
Front Panel A Sassy
1 Cut the Gasket (STG0.5-8) into a piece of 410mm and stick it to the Front Panel A Assy.
PRT2 shall be stuck to the front surface.
PRT1
PRT2
Caution : EMI (Electromagnetic Interference: Radio interference noise)
Caution : External parts shall be handled carefully so that they are not damaged.
To Next Page
