P60E 3E
PROGRAM MODE LEVEL
Installer, Remote by PC.
FACTORY DEFAULT
OFF.
NOTES
• The keyswitch always Arms Area1 only.
The keyswitch always Disarms both Area1
and Area2.
• The keyswitch option is compatible only
with 2k2 resistors. The option will NOT
work if the 3k3 Resistor option (P68E 2) is
enabled.
KEYSWITCH OPERATION
An externally fitted, normally open momentary Keyswitch can be used to Arm and
Disarm the ECO8x.
The keyswitch is wired to zone 8 (zone 8 is then no longer available as a normal alarm
input, but is still available for use as a Radio Zone).
PROGRAMMING SEQUENCE:
P60E 3E toggles the option ON and OFF
3E OFF: No keyswitch operation. Zone 8 is a normal alarm input.
3E ON: Zone 8 is the keyswitch input.
Entry beeps
Keyswitch Arm/Disarm
Tamper Siren Lockout
Auto Exclude zones
Auto off, keypad display
Option No. Description
1E 2E 3E 4E 5E 6E 7E 8E
P60E VARIOUS OPTIONS
ON ON ON
KEYSWITCH WIRING
If P60E 3E is enabled, use a momentary action keyswitch with normally open contacts.
A momentary closed circuit across the resistor will toggle panels modes. Open circuit
the resistor to trigger Panic alarm if required.
ENTRY BEEPS
The sonalert will beep during Entry Delay.
PROGRAMMING SEQUENCE:
P60E 1E toggles the option ON and OFF
OFF: Entry Beeps OFF
ON: Entry Beeps ON
P60E 1E
PROGRAM MODE LEVEL
Installer, Remote by PC.
FACTORY DEFAULT
ON.
NOTES

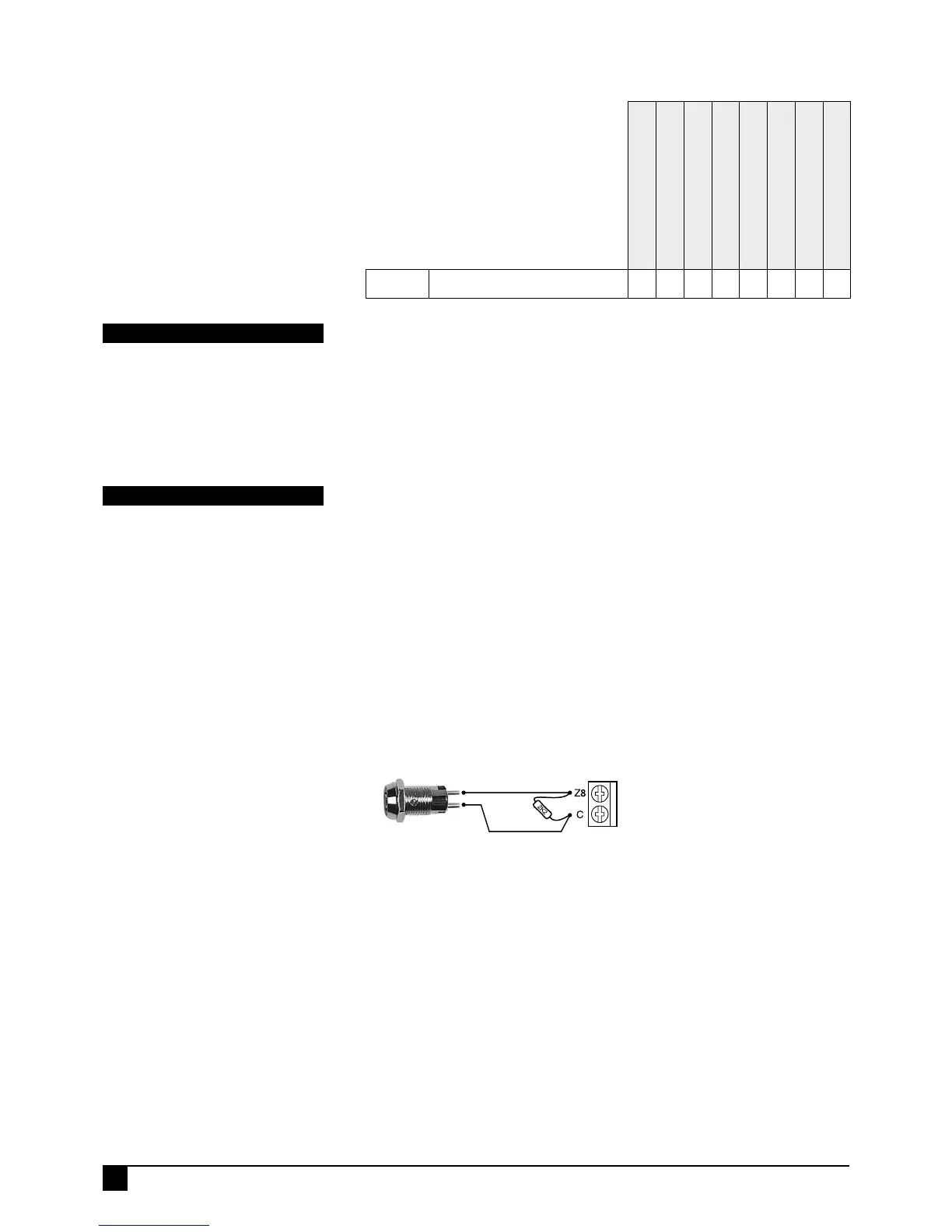

KEYSWITCH WIRING.
Connect a momentary
keyswitch as shown.
To Next Page
