Ness ECO8x Installation & Programming Manual

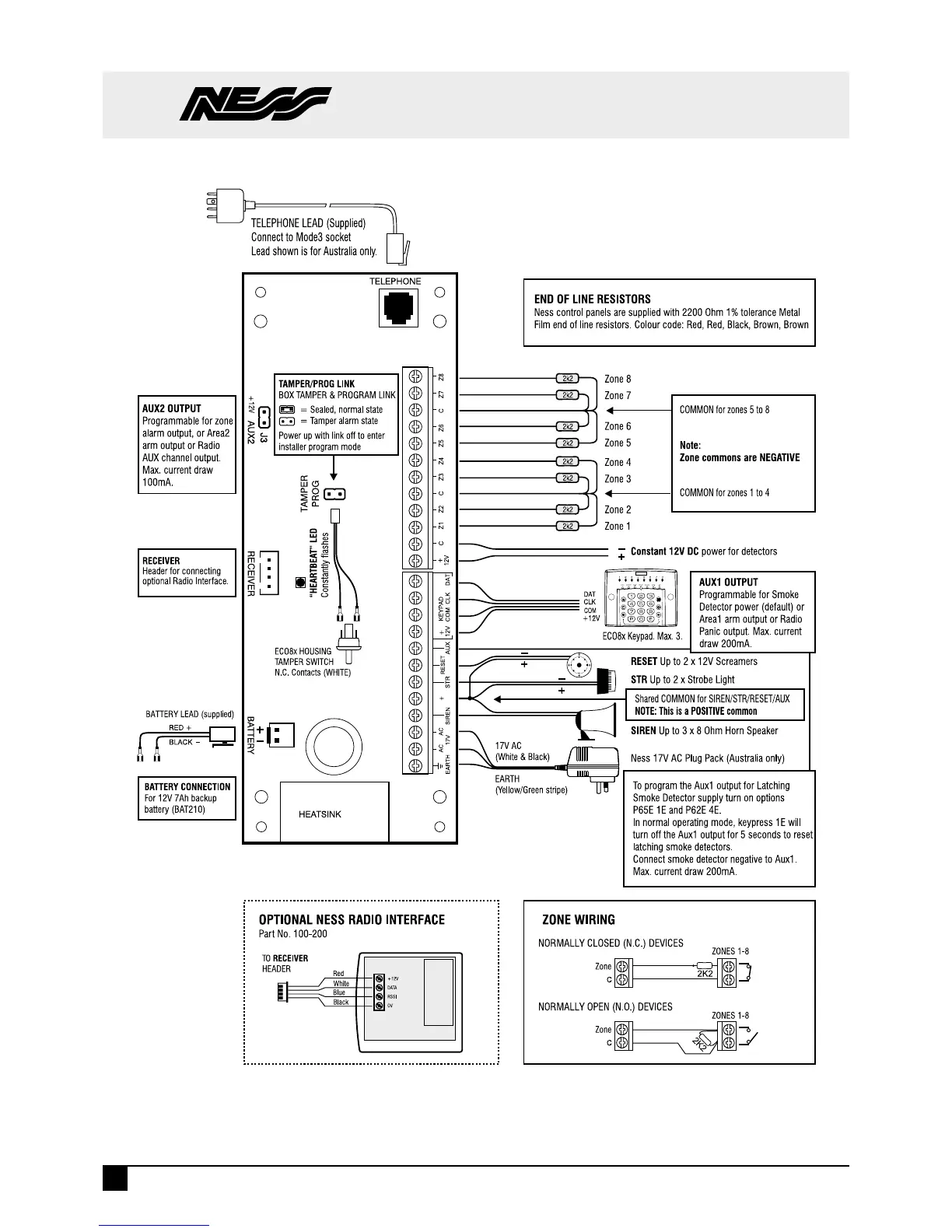

ECO8x CONNECTION DIAGRAM
NOTICE
ADSL broadband can interfere with the operation of your alarm dialler.
It is recommended that a quality ADSL filter be installed as per the filter
manufacturer's guidelines. Use Ness ADSL Filters 100-006 or 100-009.
6
Ness eCO8x CONtrOl PaNel – INstallatION MaNual

Ness ECO8x Specifications

Power

plug pack voltage	240 V AC
plug pack output voltage	17 V AC
plug pack output current	1.4 A
power supply voltage	13.8 V DC
power supply current	800 mA

Battery

battery voltage	12 V
battery capacity	7.0 Ah
battery charging current	350 mA

Inputs and Outputs

zone inputs	8
end of line resistor	2200 Ohms
maximum keypads	3

Weight and Dimensions

box width	235 mm
box height	300 mm
box depth	90 mm
