Hardware Setup
11
N600 Wireless Dual Band Gigabit VDSL2 Modem Router DGND3800B
Back Panel
The back panel has the Power On/Off button and port connections shown in the figure:
2. Gigabit port for connecting to external cable/fiber modem
5. Power On/Off button
4. USB port
6. AC power adapter input
1. ADSL line
3. Gigabit Ethernet ports

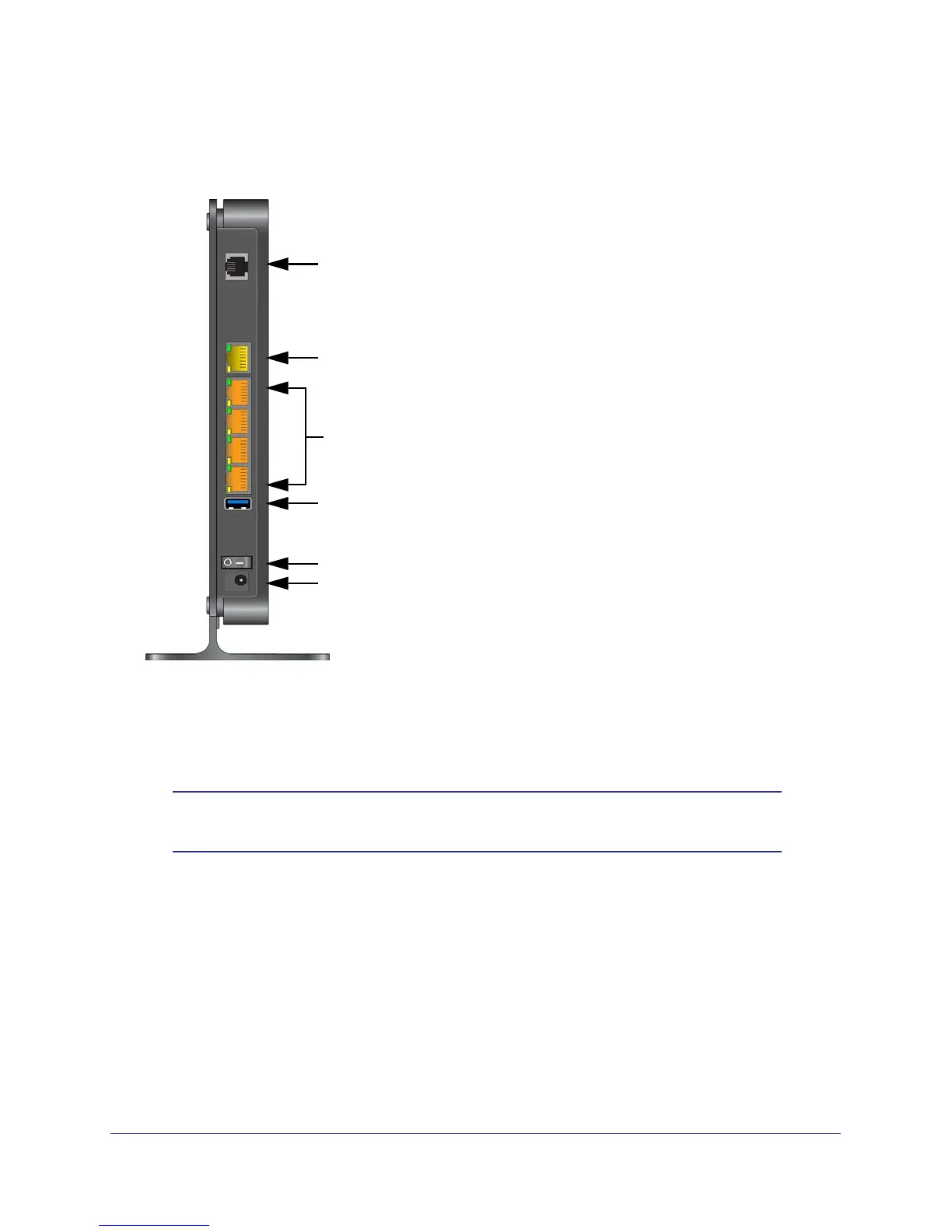

Figure 3. Back panel port connections
Viewed from left to right, the rear panel contains the following elements:
1. RJ-11 asynchronous DSL (ADSL) port for connecting the modem router to an ADSL line
Note: An ADSL port is capable of sending data over an ADSL line at one
speed and receiving it at another speed.
2. Ethernet WAN port for connecting the modem router to a fiber/cable modem
Note: You can use either the ADSL or Gigabit Ethernet port for WAN
connectivity.
3. Four Ethernet RJ-45 LAN ports for cabling the modem router to the local computers
4. USB port for connecting USB storage devices like flash drives or hard drives
5. Power On/Off button
6. AC power adapter input
