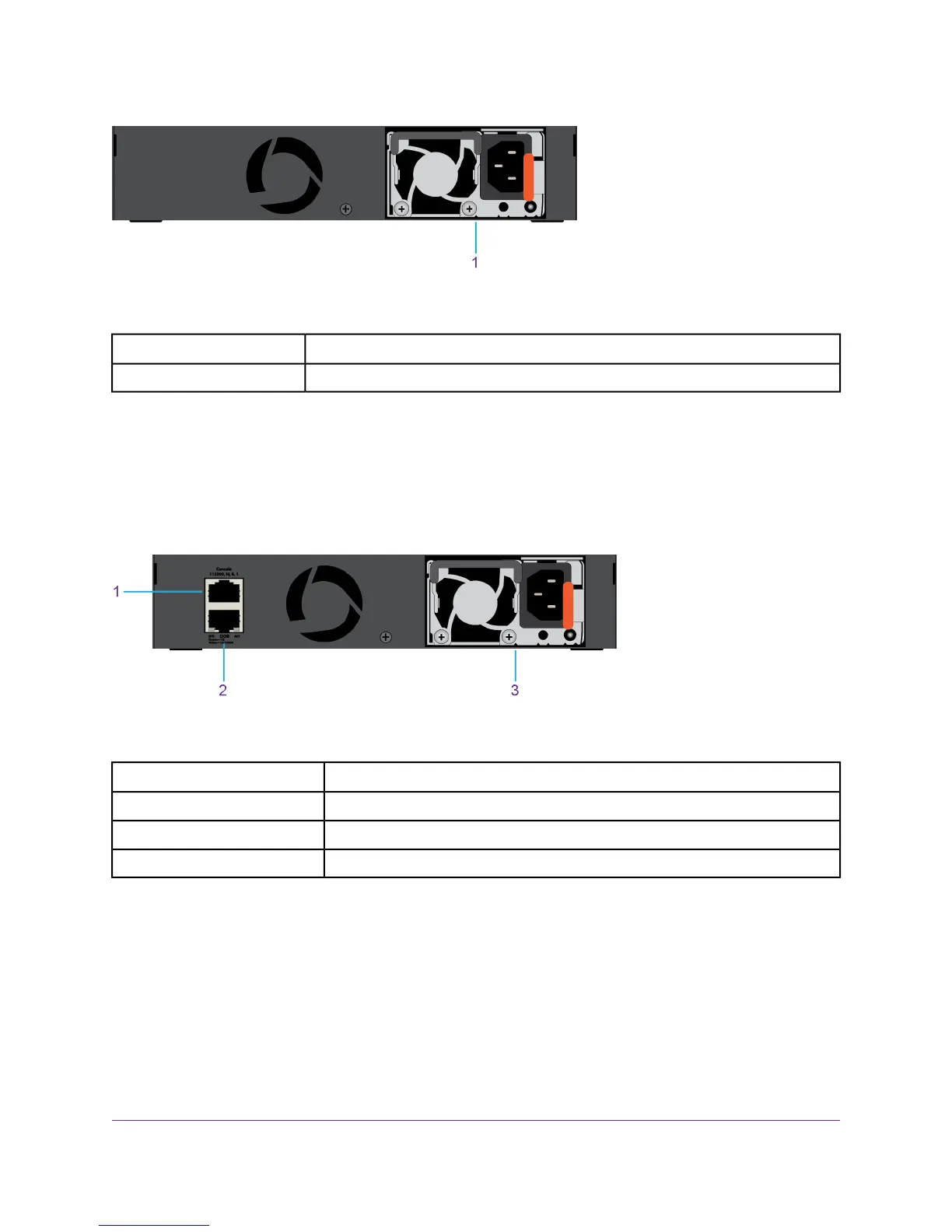

Figure 4. Back panel model M4300-8X8F
DescriptionNumber
PSU with AC connector1
From left to right, the back panel of model M4300-8X8Fprovides the following components:
• Fixed fans for front-to-back air flow
• Modular bay in which an APS250W power supply unit (PSU) is installed
The following figure illustrates the back panel of half-width model M4300-12X12F.
Figure 5. Back panel model M4300-12X12F
DescriptionNumber
RJ-45 RS232 console port1
OOB port2
PSU with AC connector3
From left to right, the back panel of model M4300-12X12Fprovides the following components:
• One out-of-band 1G Ethernet port
• One RJ-45 RS232 (115200, N, 8, 1) console port
• Fixed fans for front-to-back air flow
• Modular bay in which an APS250W power supply unit (PSU) is installed
The following figure illustrates the back panel of full-width model M4300-24X24F.
Hardware Overview
14
Managed Stackable Switch Series M4300
