Hardware Descriptions, M4300 Series Full 10G Models
This section describes the switch hardware features for the following full 10G models:
• M4300-8X8F. Switch model with eight 10G copper ports and eight 10G fiber ports
• M4300-12X12F. Switch model with twelve 10G copper ports and twelve 10G fiber ports
• M4300-24X24F. Switch model with twenty-four 10G copper ports and twenty-four 10G fiber ports
Front Panel, M4300 Series Full 10G Models
The full 10 G models provide eight, twelve, or twenty-four independent 10GBASE-T autosensing ports and
eight, twelve, or twenty-four independent 10GBASE-X SFP+ ports.

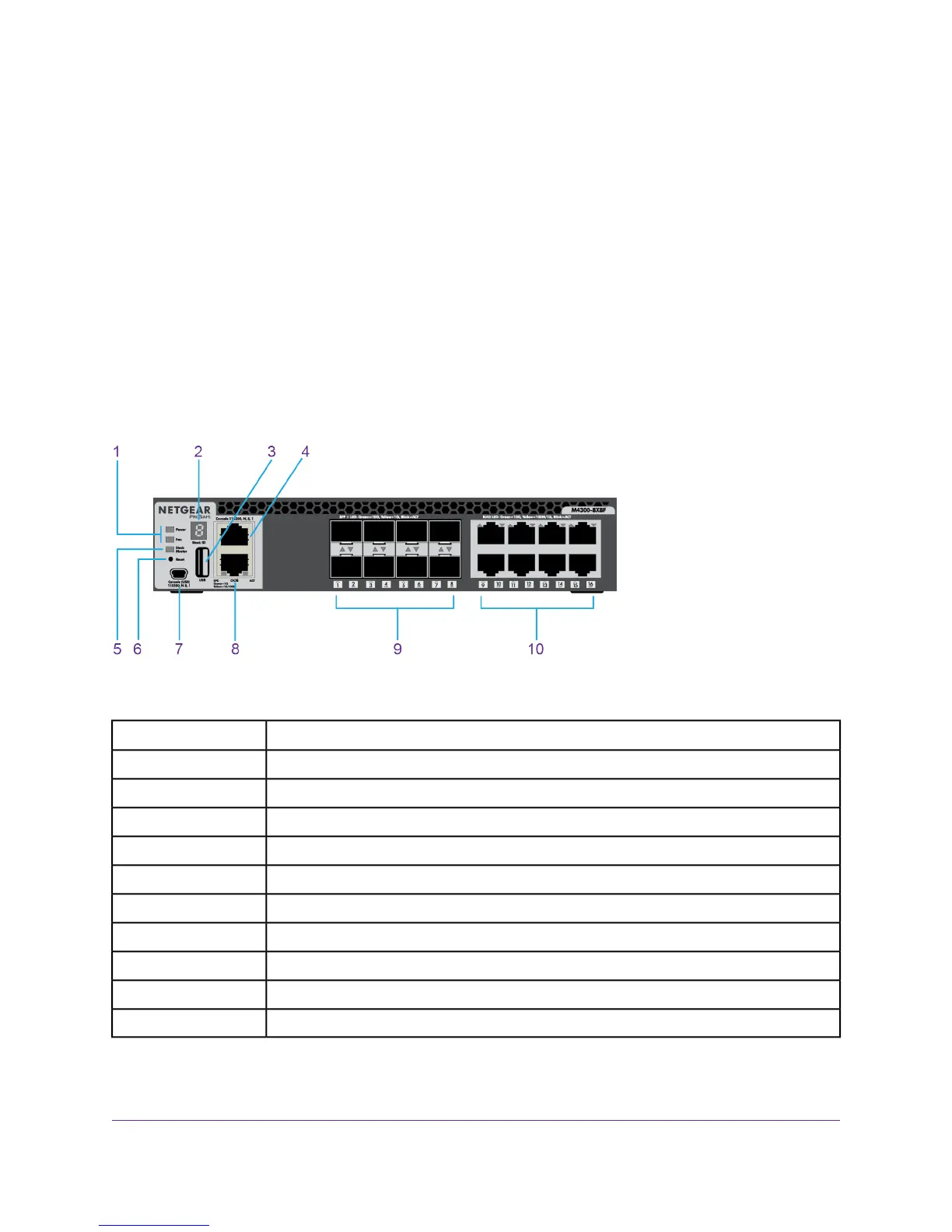

The following figure illustrates the front panel of half-width model M4300-8X8F.
Figure 1. Front panel model M4300-8X8F
DescriptionNumber
Power and Fan LEDs1
Stack ID LED2
USB port3
RJ-45 RS232 console port4
Stack Master LED5
Reset button6
Mini USB console port7
OOB port8
10GBASE-X SFP+ ports9
10GBASE-T ports10
The following figure illustrates the front panel of half-width model M4300-12X12F.
