NETGEAR ProSAFE M4300 series - Back Panel, M4300 Series Full 10 G Models with RJ45;SFP+ Combo Ports

DescriptionNumber
Reset button5
Mini USB console port6
10GBASE-T ports7
Combo ports8
From left to right, the front panel of the full 10G models provides the following components:
• Power, Fan, Stack Master, and Stack ID system LEDs (see LEDs, M4300X Series Full 10G Models
with RJ45/SFP+ Combo Ports on page 29.)
Because model M4300-48X can support two PSUs, the front panel provides both a
Power 1 LED and Power 2 LED.
Note
• Recessed Reset button
• One mini USB console port
• One USB 2.0 port
• Depending on the model, twenty or forty-four ports, each with a combined speed/activity LED (see LEDs,
M4300X Series Full 10G Models with RJ45/SFP+ Combo Ports on page 29.)
• Four combo 10GBASE-T/10GBASE-X ports, each with a combined speed/activity LED (see LEDs,
M4300X Series Full 10G Models with RJ45/SFP+ Combo Ports on page 29.)
Back Panel, M4300 Series Full 10G Models with RJ45/SFP+
Combo Ports

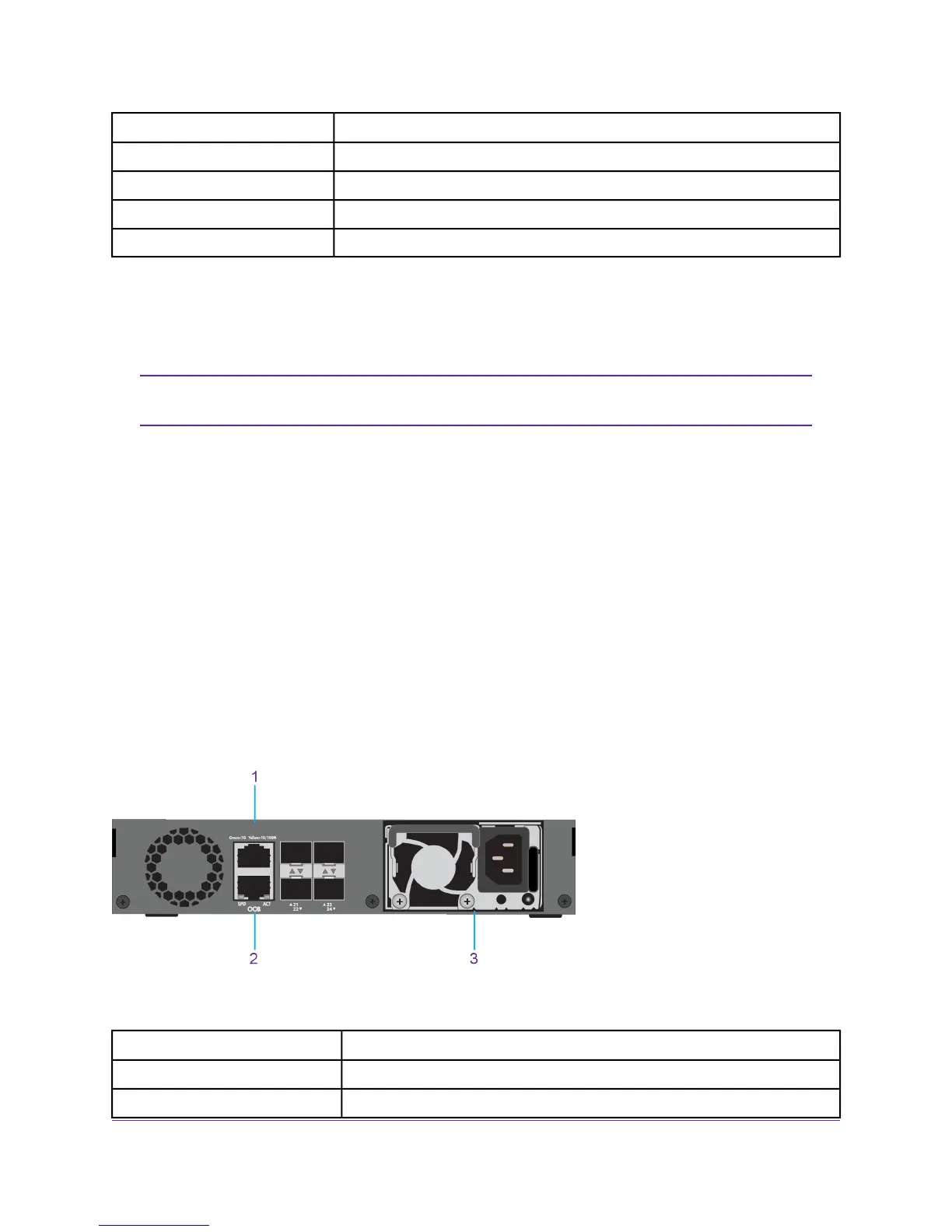

The following figure illustrates the back panel of model M4300-24X.
Figure 15. Back panel model M4300-24X
DescriptionNumber
RJ-45 RS232 console port1
OOB port2
