- On model M4300-28 and model M4300-28G-POE+, these are port numbers 25 and 26.
- On model M4300-52G and model M4300-52G-POE+, these are port numbers 49 and 50
Two dedicated 10GBASE-X SFP+ ports, each with a combined speed/activity LED (see LEDs, M4300
Series 1G Models With 10G Uplinks on page 22):
- On model M4300-28 and model M4300-28G-POE+, these are port numbers 27 and 28.
- On model M4300-52G and model M4300-52G-POE+, these are port numbers 51 and 52.
One out-of-band (OOB) 1G Ethernet port with a left LED that indicates the speed and a right LED that
indicates the activity (see LEDs, M4300 Series 1G Models With 10G Uplinks on page 22).
One USB 2.0 port
Back Panel, 4300 Series 1G Models With 10G Uplinks
The following figure illustrates the back panel of model M4300-28G, model M4300-28G-POE+, and model
M4300-52G.

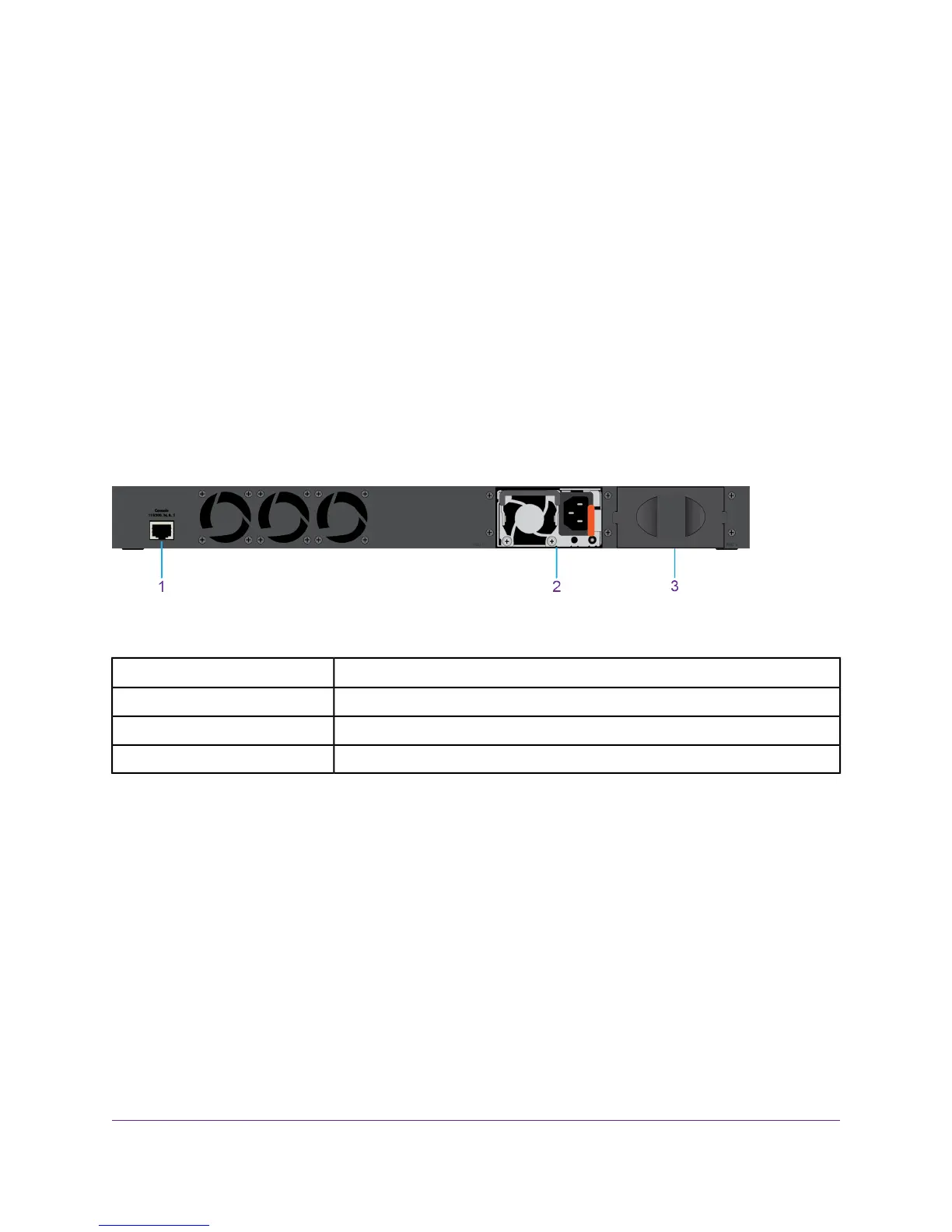

Figure 11. Back panel model M4300-28G, model M4300-28G-POE+, and model M4300-52G
DescriptionNumber
RJ-45 RS232 console port1
PSU1 with AC connector2
Bay for PSU23
From left to right, the back panel of model M4300-24X24F provides the following components:
One RJ-45 RS232 (115200, N, 8, 1) console port.
Fixed fans for front-to-back air flow
Modular bay in which for model M4300-28G and model M4300-52G an APS150W power supply unit
(PSU) is installed. For model M4300-28G-POE+, an APS550W PSU or APS1000W PSU is installed,
depending on the product ordered.
Second modular bay for an optional second PSU.
Hardware Overview
21
Managed Stackable Switch Series M4300
