5. Tighten the screws with a No. 1 Phillips screwdriver to secure each middle mount.

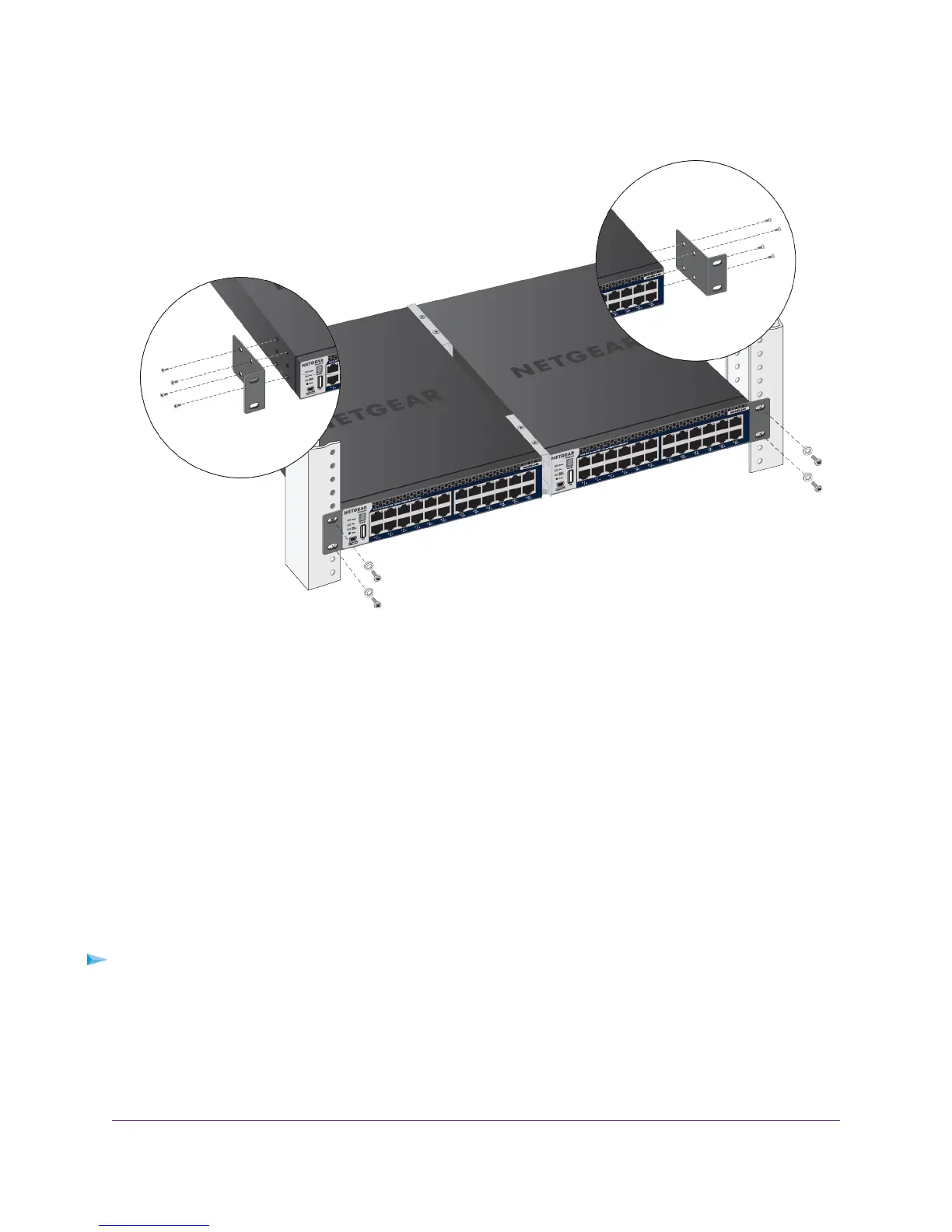

6. Attach the supplied mounting brackets to the left side of the left switch and to the right side of the right
switch.
7. Insert the screws provided in the rack-mount kit through each bracket and into the bracket mounting
holes in the switches.
8. Tighten the screws with a No. 1 Phillips screwdriver to secure each bracket.
9. Align the mounting holes in the regular brackets (on the left of the left switch and on the right of the right
switch) with the holes in the rack, and insert two pan-head screws with nylon washers through each
bracket and into the rack.
10. Tighten the screws with a No. 2 Phillips screwdriver to secure mounting brackets to the rack.
Step 5: Check the Installation
Before you apply power to the switch, perform the steps that are described in this section.
To check the installation:
1. Inspect the equipment thoroughly.
2. Verify that all cables are installed correctly.
3. Check cable routing to make sure that cables are not damaged or creating a safety hazard
4. Ensure that all equipment is mounted properly and securely.
Installation
45
Managed Stackable Switch Series M4300

NETGEAR ProSAFE M4300 series Specifications

General

Stackable	Yes
Series	ProSAFE M4300
Layer	L3
Ports	Varies by model (24, 48 ports)
PoE	Available on some models (PoE+)
Management	Web, CLI, SNMP
Redundancy	Yes (dual power supplies on select models)
Form Factor	Rack-mountable
Throughput	Varies by model
Switching Capacity	Varies by model
Jumbo Frame Support	Yes
VLAN Support	Yes
Quality of Service (QoS)	Yes
Security Features	ACLs, 802.1x
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0° to 50° C (32° to 122° F)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Humidity	95% relative humidity, non-condensing
Power Supply	Varies by model
Warranty	Lifetime
