To install an SFP transceiver module in the M4300-48X:
1. Insert the transceiver into the SFP port.
2. Press firmly on the flange of the module to seat it securely into the connector.

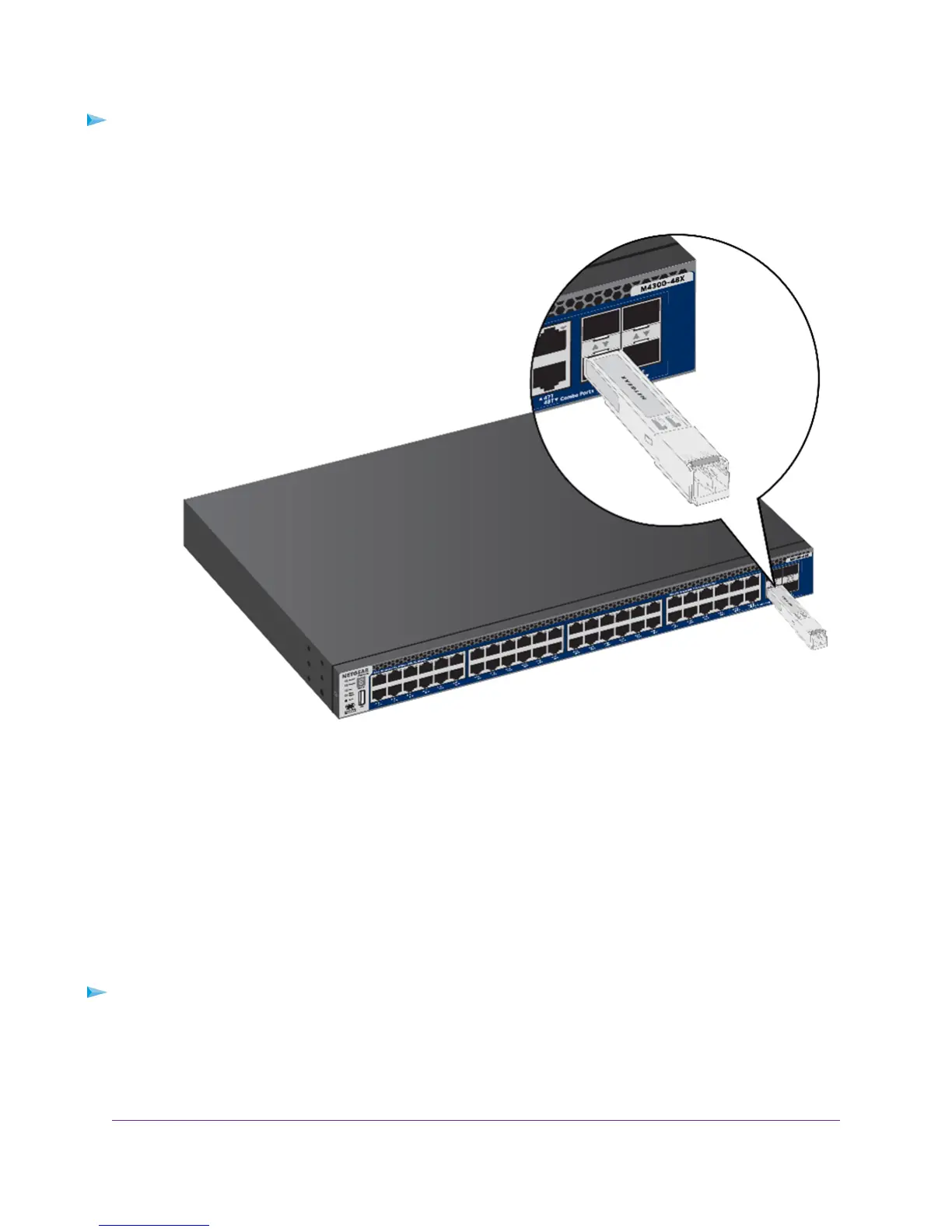

Figure 20. Installing an SFP transceiver module in the M4300-48X switch
Step 7: Apply AC Power and Check the LEDs
The switch does not provide an on/off switch.The power cord connection controls the power. Before
connecting the power cord, select an AC outlet that is not controlled by a wall switch, which can turn off
power to the switch.
To apply AC power:
1. Connect the end of the power cord to the power receptacle on the power supply unit (PSU) on back of
the switch.
2. When you apply power, the Power LED on the switch front panel lights. If your the switch provides a
second power module bay in which no PSU is installed, the Power 1 LED on the front panel lights. If
Installation
48
Managed Stackable Switch Series M4300
