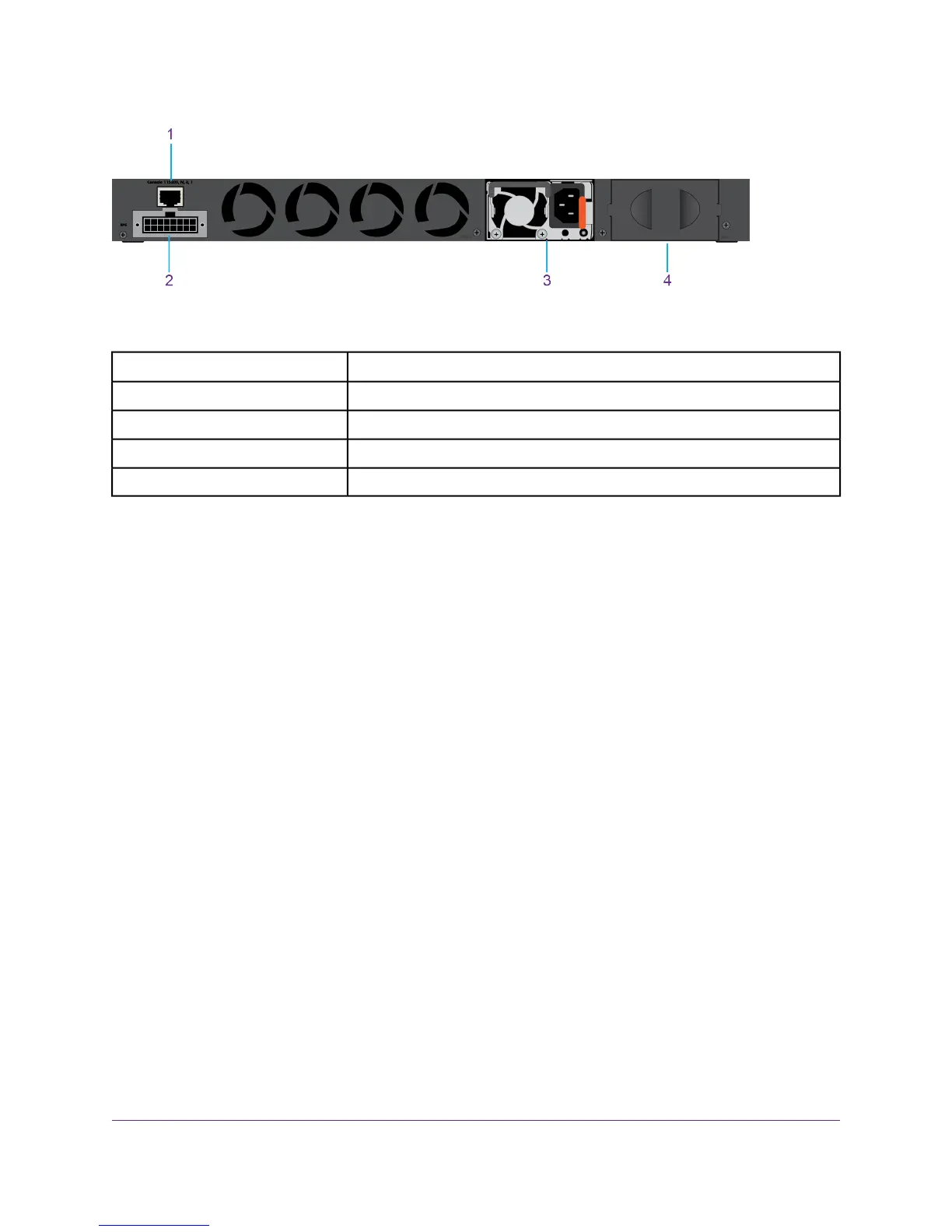

Figure 12. Back panel model M4300-52G-POE+
DescriptionNumber
RJ-45 RS232 console port1
RPS interface2
PSU1 with AC connector3
Bay for PSU24
From left to right, the back panel of model M4300-52G-POE+ provides the following components:
• One RJ-45 RS232 (115200, N, 8, 1) console port
• One redundant power supply (RPS) interface
• Fixed fans for front-to-back air flow
• Modular bay in which an APS550W power supply unit (PSU) or APS1000W PSU is installed, depending
on the product ordered
• Second modular bay for an optional second PSU
