Install an SFP Transceiver Module
This procedure describes how to install an SFP transceiver module into all M4300 models except the
M4300-48X.
To install an SFP transceiver module:
1. Insert the transceiver into the SFP port.
2. Press firmly on the flange of the module to seat it securely into the connector.The following figure shows
model M4300-12X12F. However, you install SFP transceiver modules in the SFP ports of the other
models in the same manner.

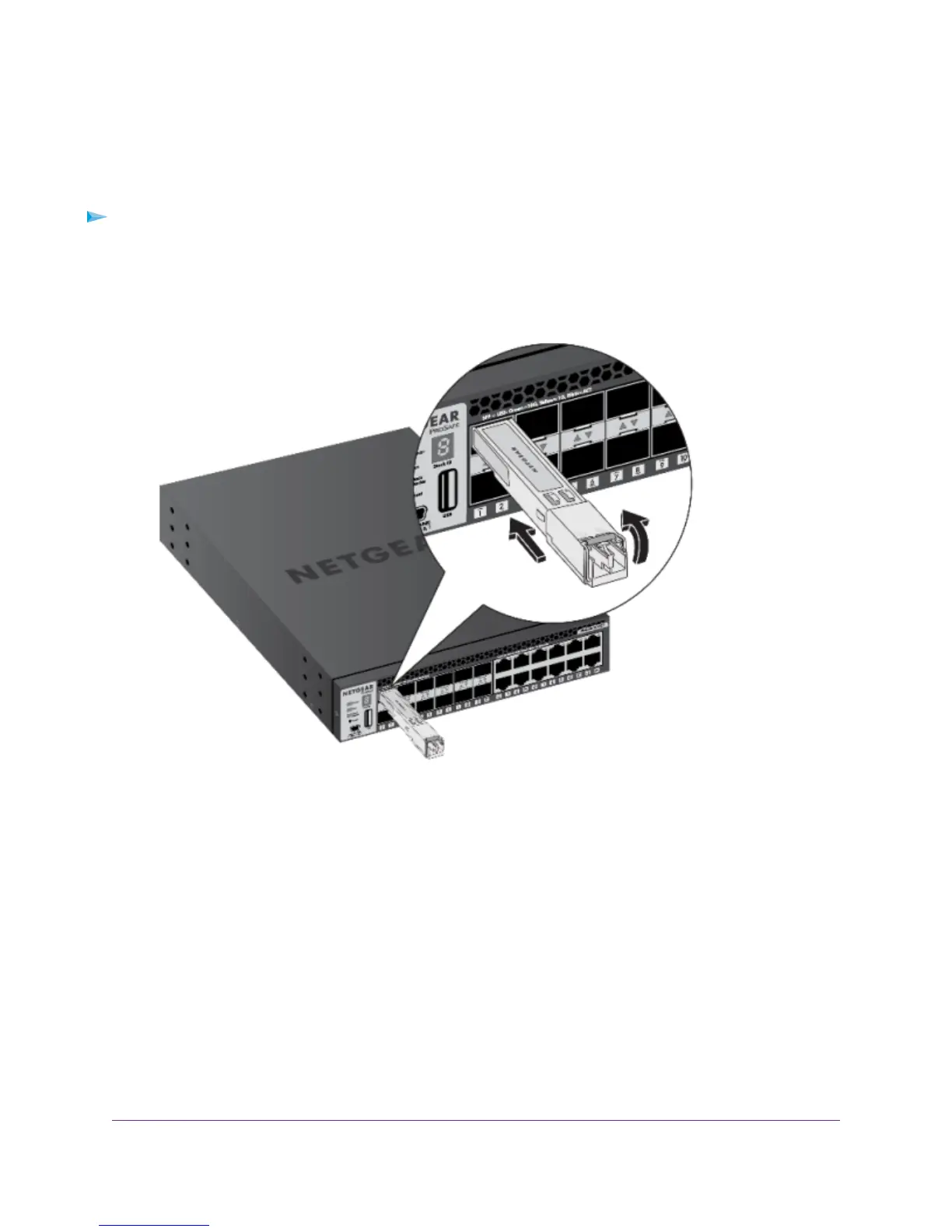

Figure 19. Installing an SFP transceiver module
Install an SFP Module into a Model M4300-48X
This procedure describes how to install an SFP transceiver module into the model M4300-48X.
Installation
47
Managed Stackable Switch Series M4300
