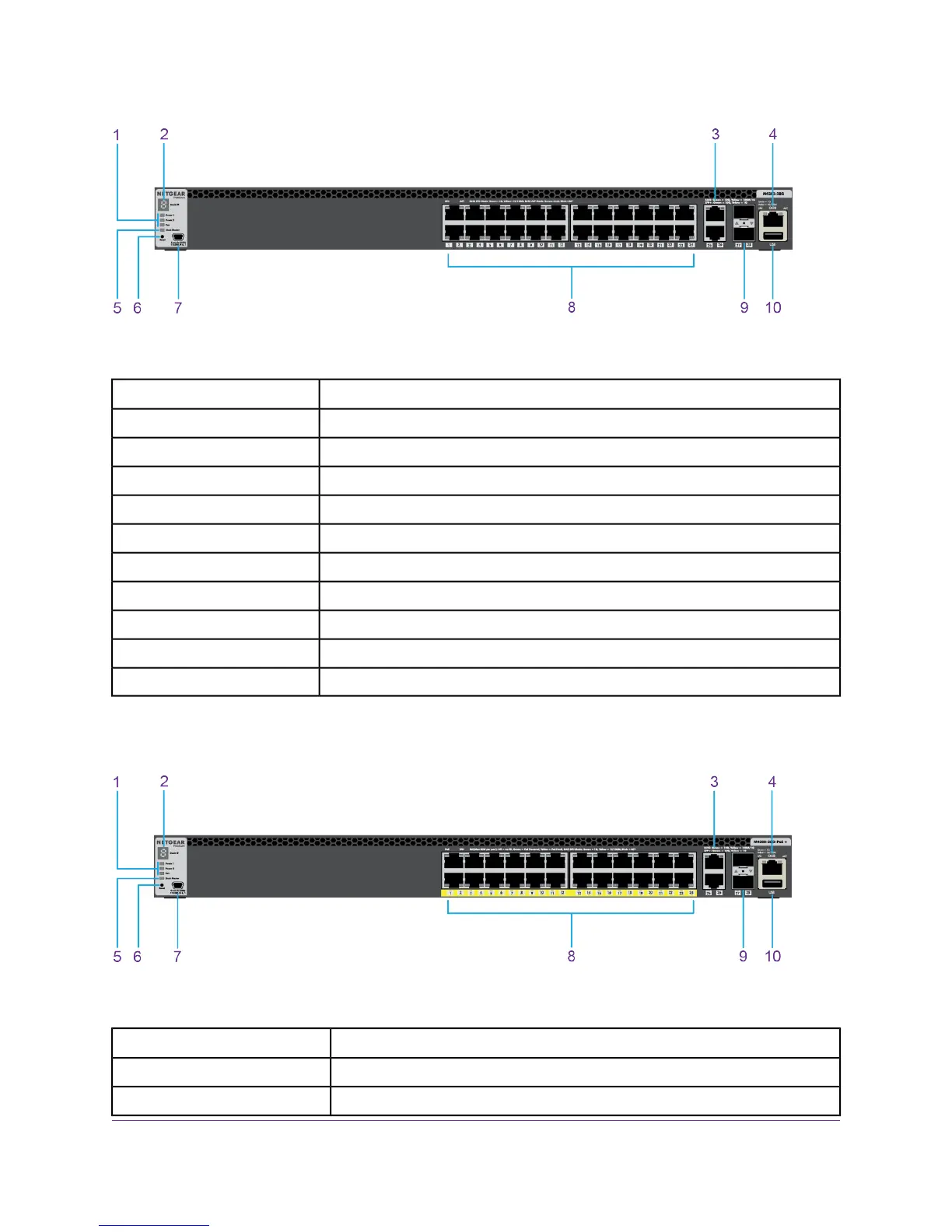

Figure 7. Front panel model M4300-28G
DescriptionNumber
Power 1, Power 2, and Fan LEDs1
Stack ID LED2
10GBASE-T ports3
OOB port4
Stack Master LED5
Reset button6
Mini USB console port7
1000BASE-T PoE+ ports8
10GBASE-X SFP+ ports9
USB port10
Model M4300-28G-POE+ supports PoE+ on ports 1 through 24. The following figure illustrates the front
panel of model M4300-28G-POE+.
Figure 8. Front panel model M4300-28G-POE+
DescriptionNumber
Power 1, Power 2, and Fan LEDs1
Stack ID LED2
Hardware Overview
