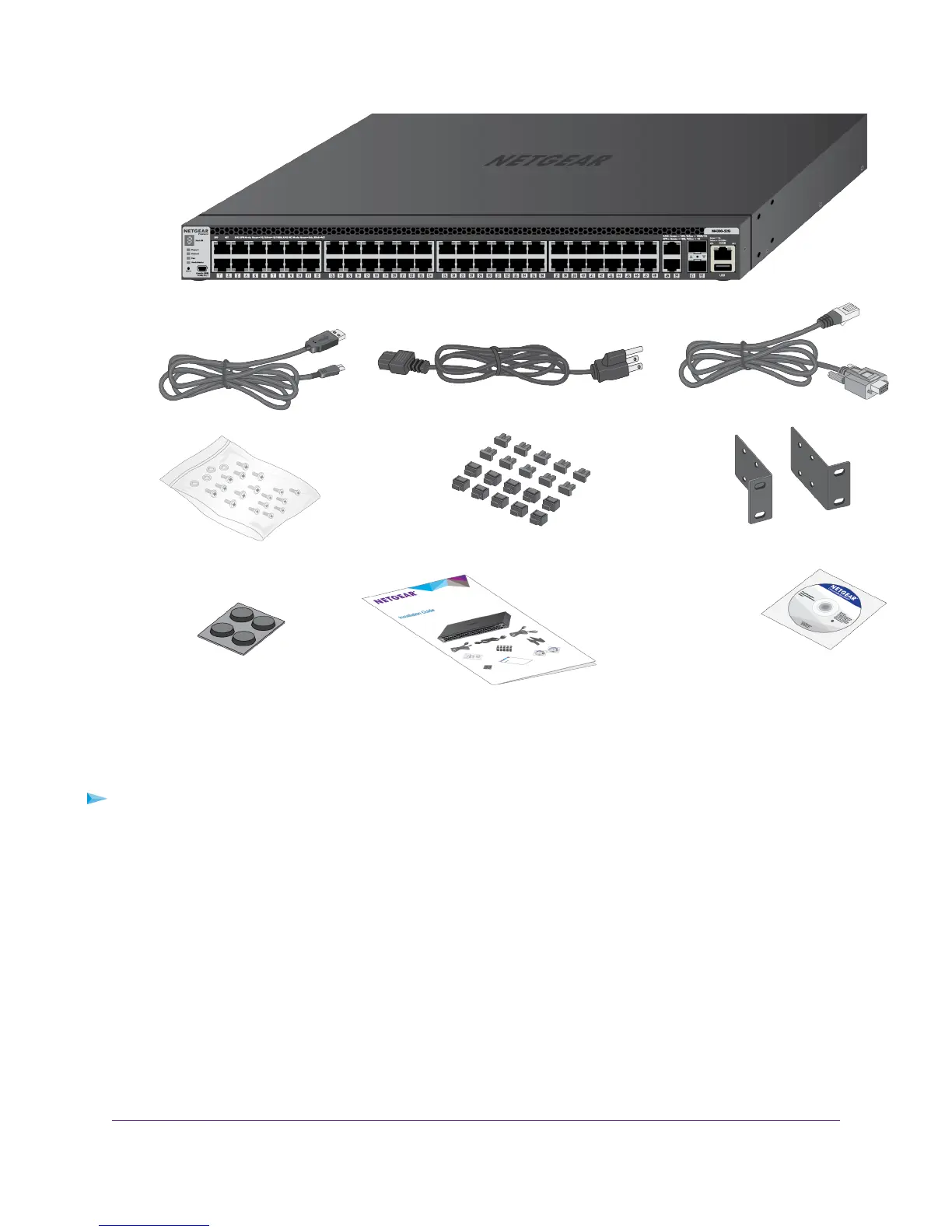

Figure 18. Switch package contents full-width models
Check the contents of the boxes to make sure that all items are present before installing the switch.
To check the package contents:
1. Place the container on a clean flat surface, and cut all straps securing the container.
2. Unpack the hardware from the boxes by carefully removing the hardware and placing it on a secure
and clean surface.
3. Remove all packing material.
4. Verify that the package contains the following items:
a. Switch of the correct model
b. Power cord
c. Console cable with one DB9 connector and one RJ-45 connector
d. USB console cable with one mini B connector and one type A connector
e. Rack-mounting kit:
Installation
39
Managed Stackable Switch Series M4300
