NETGEAR R6300v2 User Manual

Advanced Settings
102
R6300v2 Smart WiFi Router

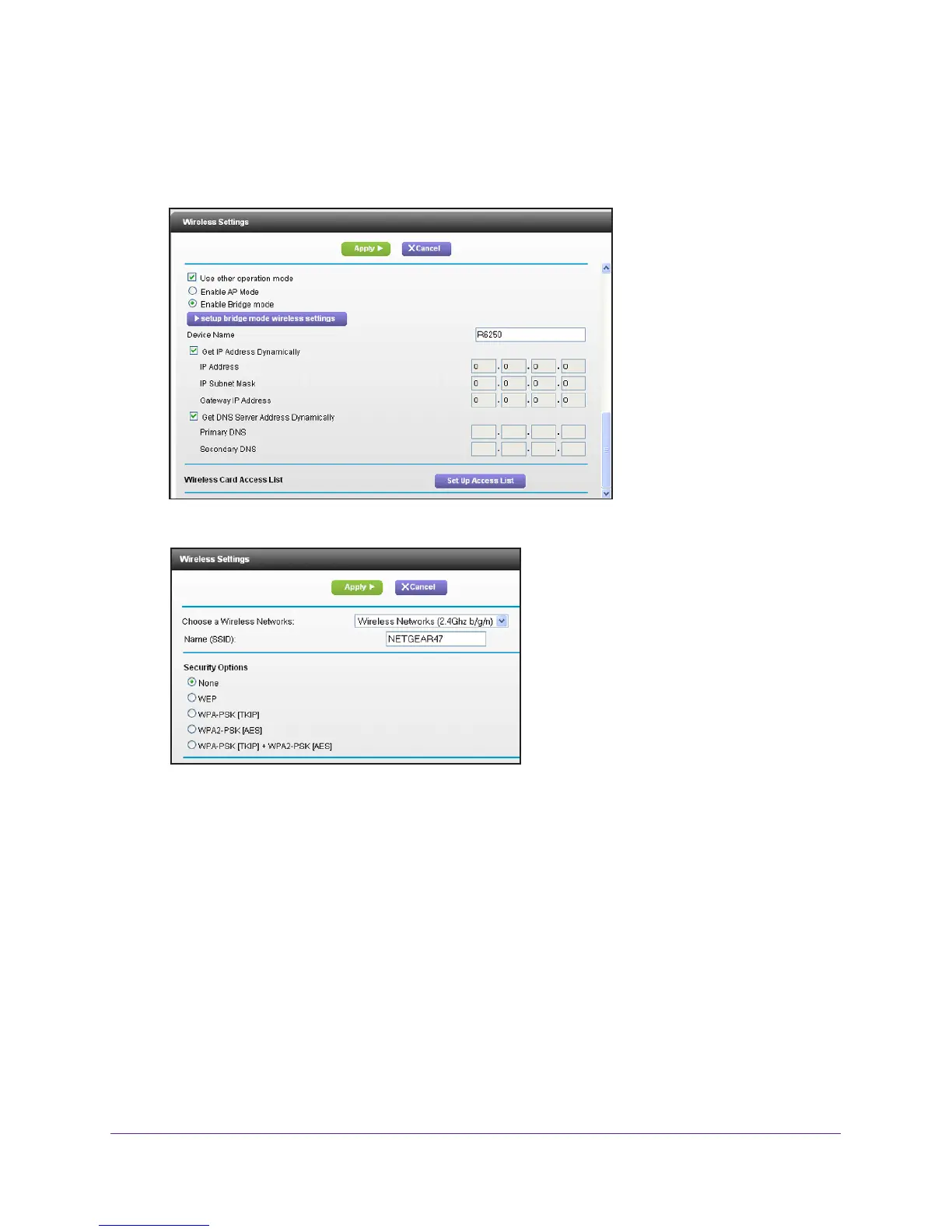

3. Scroll down and select the Use other operation mode check box and the Enable Bridge
mode radio button.
The screen adjusts.
4. Click the setup bridge mode wireless settings button.
5. Specify the settings of the other router.
a. Select the wireless network frequency (2.4 GHz or 5 GHz).
For 802.11ac mode, select 5 GHz.
b. In the Name (SSID) field, enter the wireless network name (SSID).
c. In the Security Option section, select a radio button.
d. If prompted, type the passphrase (the WiFi password that you use to connect
wirelessly to the other router).
6. Click the Apply button.
The settings for the other router are saved and the Advanced Wireless Settings screen
displays.
7. Click the Apply button on the
Advanced Wireless Settings screen.
Your changes take effect.

NETGEAR R6300v2 Specifications

General

WiFi Technology	802.11ac Dual Band Gigabit
WiFi Range	Medium to large homes
USB Ports	1 x USB 3.0, 1 x USB 2.0
Wireless Standard	802.11a/b/g/n/ac
Frequency Band	2.4 GHz and 5 GHz
Processor	800 MHz
Ethernet Ports	4 x Gigabit LAN, 1 x Gigabit WAN
Antenna	3 external antennas
Security	WPA/WPA2-PSK
Ports	1x WAN, 4x LAN, 1x USB 3.0, 1x USB 2.0
Memory	256 MB RAM, 128 MB Flash
WiFi Speed	Up to 1750 Mbps (450 Mbps on 2.4 GHz + 1300 Mbps on 5 GHz)
