Advanced Settings
107
R6300v2 Smart WiFi Router
• The Destination IP Address and IP Subnet Mask fields specify that this static route
applies to all 134.177.x.x addresses.
• The Gateway IP
Address field specifies that all traffic for these addresses should be
forwarded to the ISDN router at 192.168.1.100.
• A metric value of 1 works because the ISDN router is on the LAN.
• Private is selected only as a precautionary security measure in case RIP is activated.
To set up a static route:
1. Select ADV
ANCED > Advanced Setup > Static Routes.

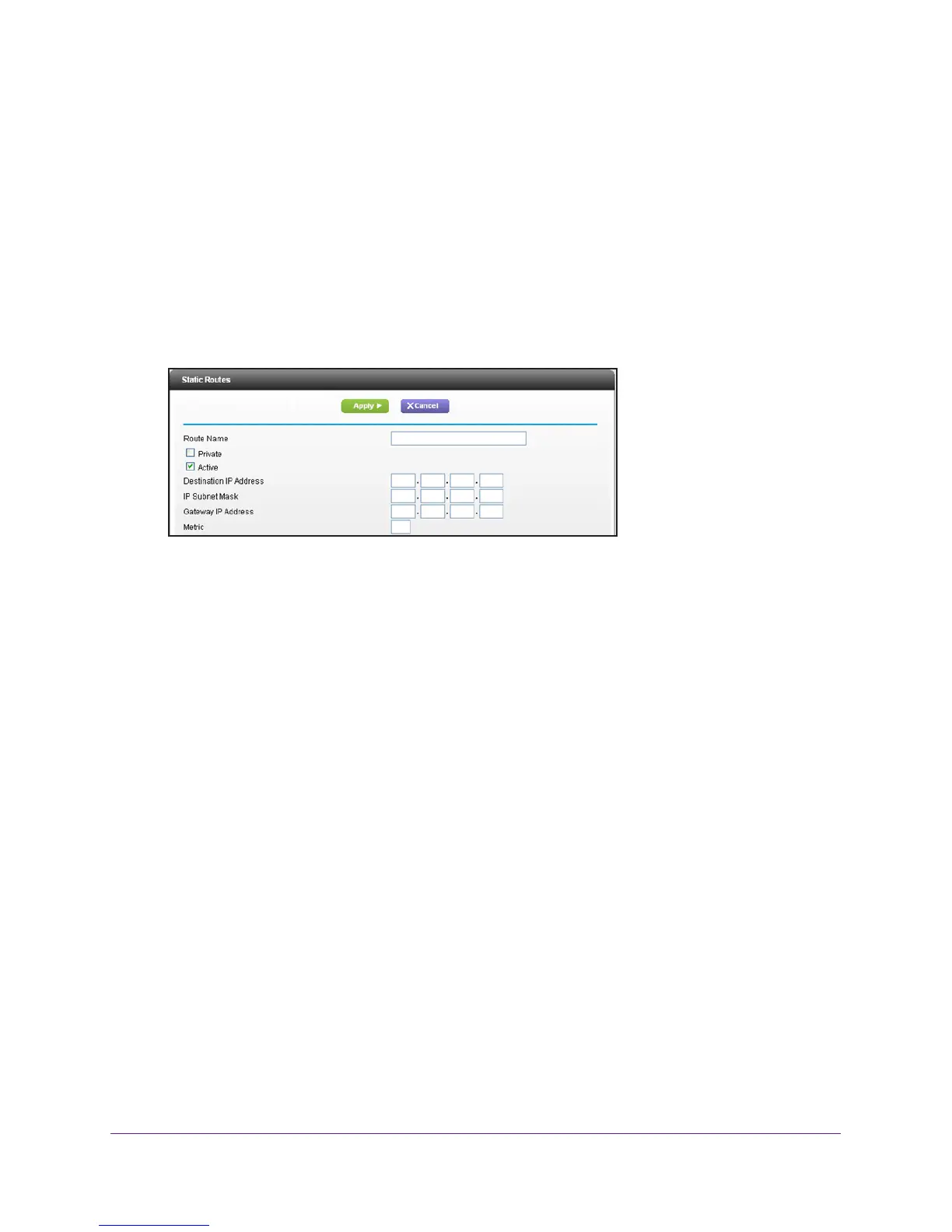

2. Click the Add button.
3. In the Route Name field, type a name for this static route (for identification purposes only.)
4. Select the Private check box if you want to limit access to the LAN only
.
If Private is selected, the static route is not reported in RIP.
5. T
o make this route effective, select the Active check box.
6. T
ype the IP address of the final destination.
7. T
ype the IP subnet mask for this destination. If the destination is a single host, type
255.255.255.255.
8. T
ype the gateway IP address, which has to be on the same LAN segment as the router.
9. T
ype a number from 1 through 15 as the metric value.
This value represents the number of routers between your network and the destination.
Usually
, a setting of 2 or 3 works, but for a direct connection, set it to 1.
10. Click the Apply button.
The static route is added.
To edit or delete a static route:
1. Select ADV
ANCED > Advanced Setup > Static Routes.
The Static Routes screen displays.
2. In the table, select the radio button next to the route that you want to edit or delete.
3. Do one of the following:
• Click the Edit button.
