NETGEAR WAX214v2 User Manual

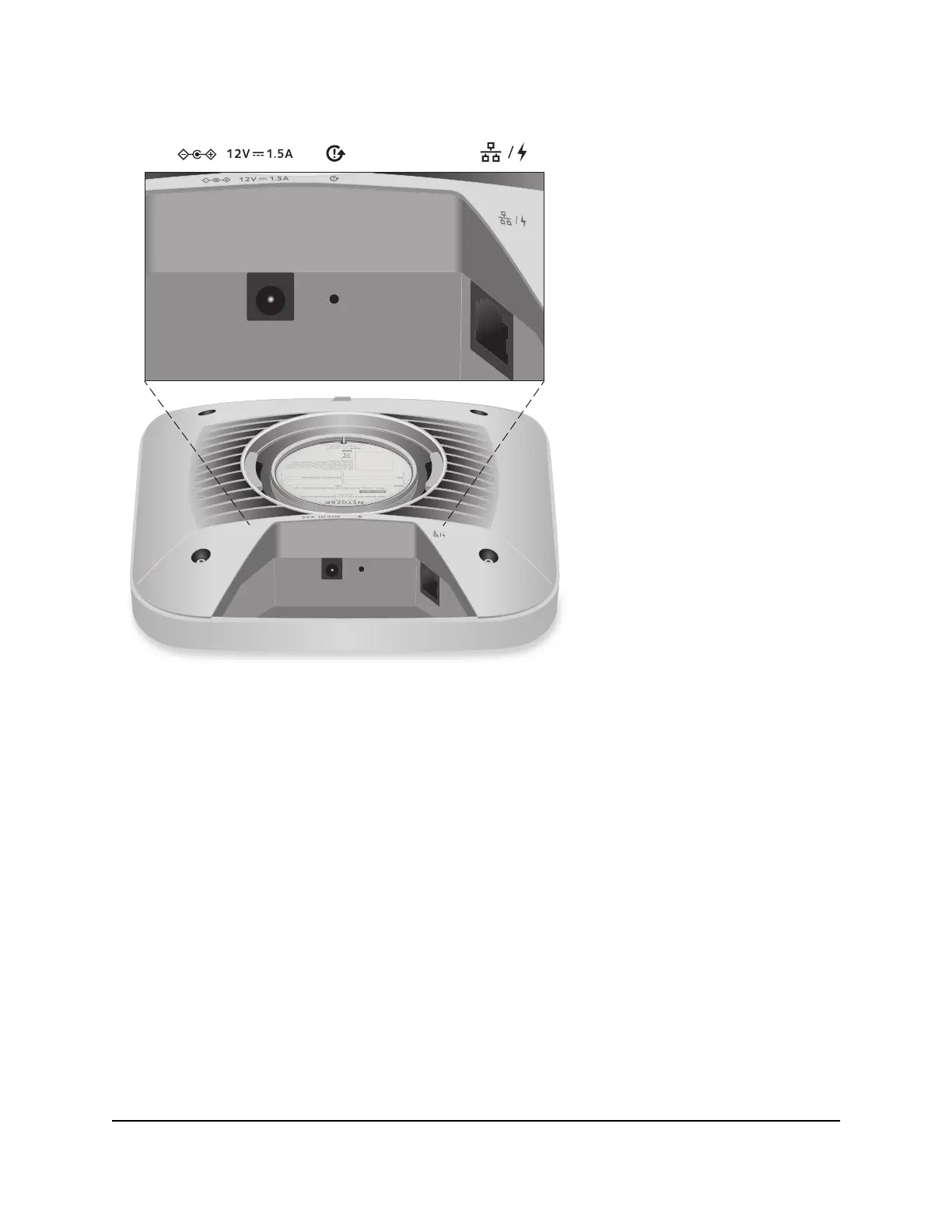

Figure 2. Hardware interfaces
The bottom panel contains the following components:
•
DC power connector. If you do not use a Power over Ethernet plus (PoE+) switch
to provide power to the AP, connect the power adapter to the DC power connector.
•
Reset button. You can use the Reset button to restart the AP or to reset the AP to
its factory default settings. To restart the AP, press the Reset button for two seconds.
Pressing the Reset button for at least 11 seconds resets the AP to factory default
settings.
•
LAN/PoE+ port. Connect the LAN/PoE+ Gigabit Ethernet RJ-45 port to a PoE+
switch, or if you use a power adapter, to a non-PoE switch (that is, a common switch).
The LAN/PoE+ port supports Ethernet speeds up to 1 Gbps.
Note: If you do not use a power adapter, use a PoE+ (803.2.at) switch. If you use a
PoE (803.2.af) switch, the AP’s 2.4 GHz radio functions with reduced transmit power.
User Manual11Hardware Overview Model
WAX214v2
Essentials WiFi 6 AX1800 Dual Band Access Point Model WAX214v2

NETGEAR WAX214v2 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Placement	Ceiling, Wall
Product color	White
Security algorithms	SSID, WPA2, WPA3
Number of SSID supported	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Antenna type	Internal
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Width	196 mm
Height	44.4 mm
Weight	523 g
