NETGEAR WAX214v2 User Manual

Label
The AP label shows the serial number, MAC address, default WiFi network name (SSID)
for the management WiFi network, and network key (WiFi password) for the management
WiFi network.
The management WiFi network provides access to the device user interface (UI) only.
That is, the WiFi network is not intended for general WiFi clients access. (The user WiFi
networks are intended for general WiFi clients access.)

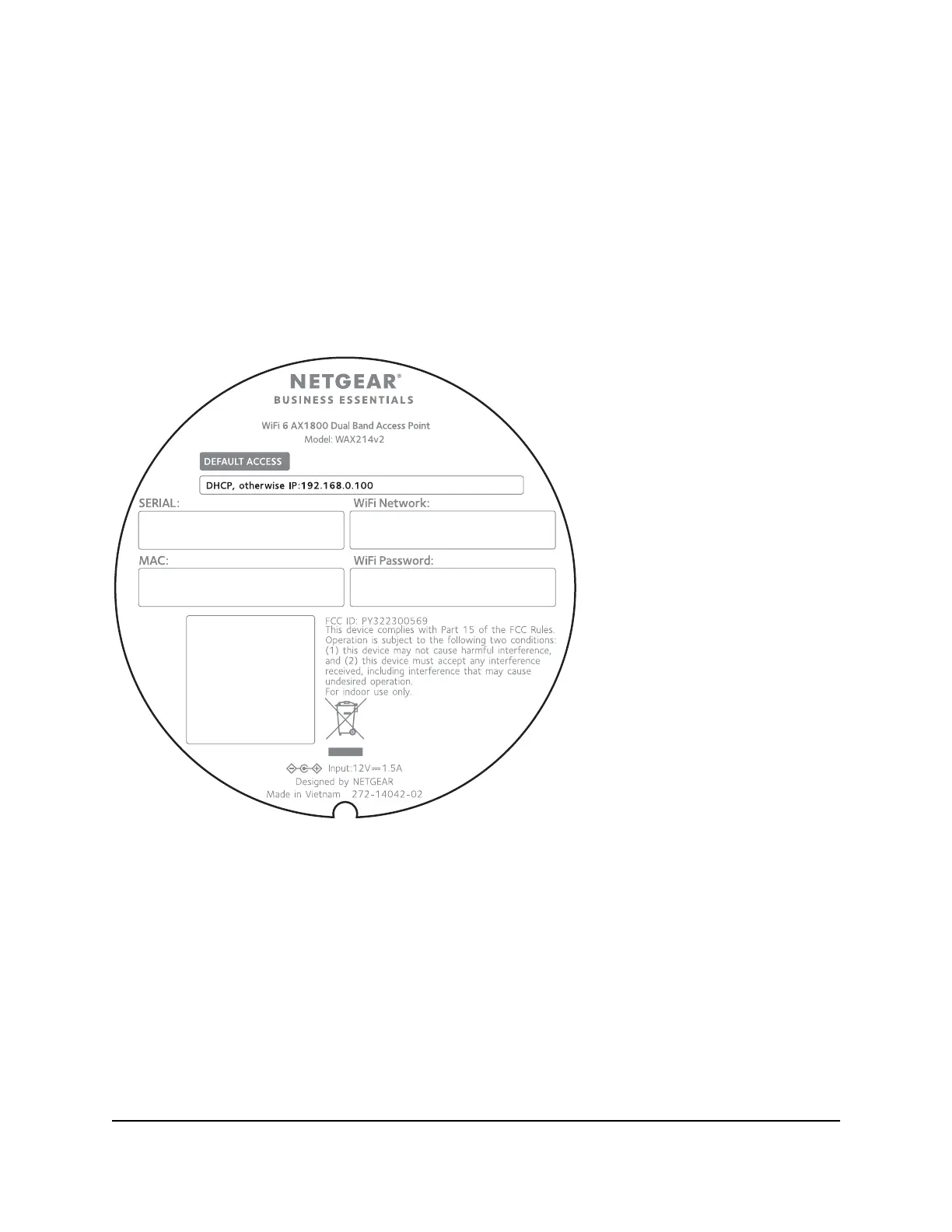

Figure 3. Label
User Manual12Hardware Overview Model
WAX214v2
Essentials WiFi 6 AX1800 Dual Band Access Point Model WAX214v2

NETGEAR WAX214v2 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Placement	Ceiling, Wall
Product color	White
Security algorithms	SSID, WPA2, WPA3
Number of SSID supported	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Antenna type	Internal
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Width	196 mm
Height	44.4 mm
Weight	523 g
