Nexcom NSA 5130 - RJ45 Type Console Port; Software Push Button

Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
15
NSA 5130 User Manual
Chapter 2: Jumpers and Connectors

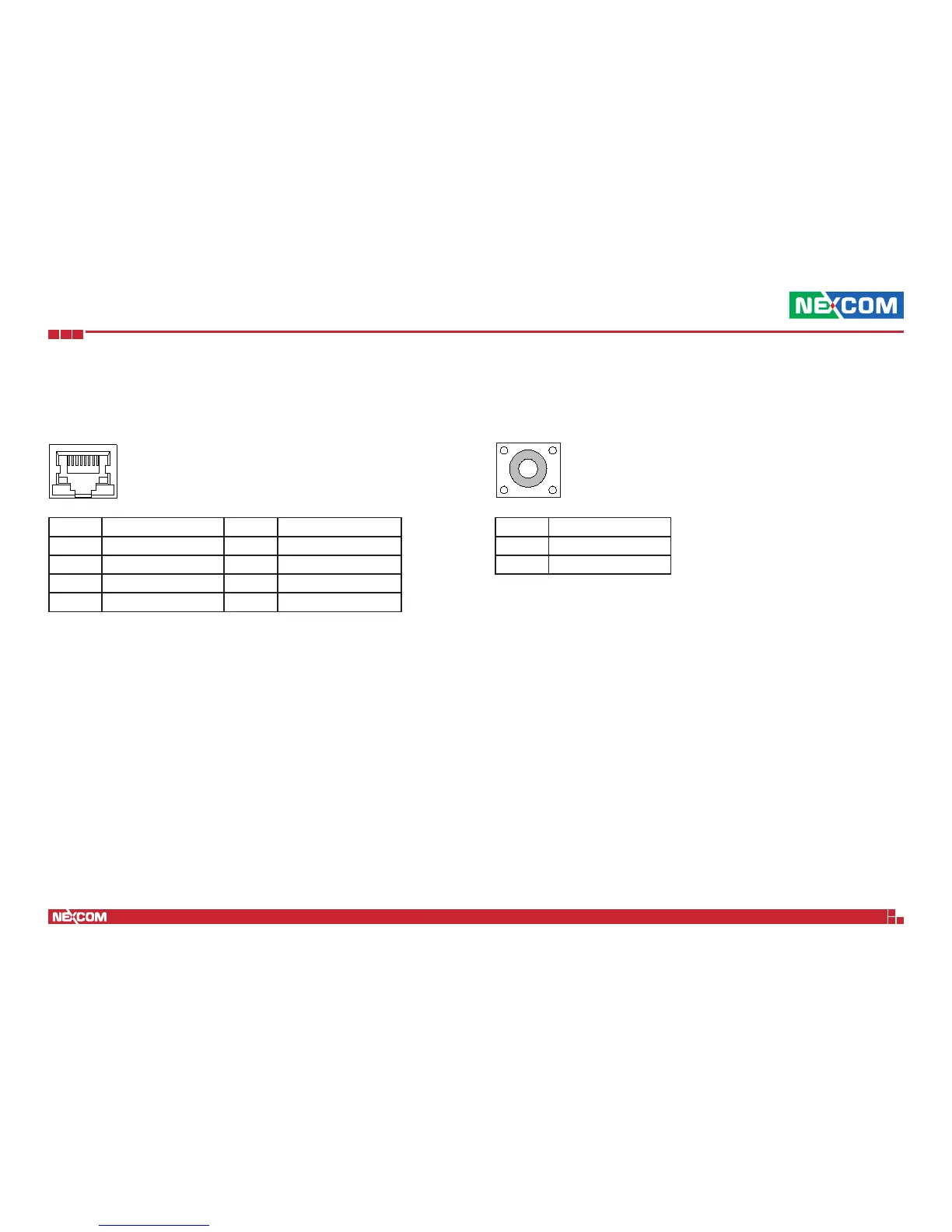

RJ45 Type Console LAN Port (RS232)
Connector type: RJ45 port
Connector location: LAN1
Pin Definition Pin Definition
1 SP_RTS1_R 2 SP_DTR1_R
3 SP_TXD1_R 4 GND
5 SP_DCD1_R 6 SP_RXD1_R
7 SP_DSR1_R 8 SP_CTS1_CON
Software Push Button
Connector type: 2-pin jack
Connector location: SW1
Pin Definition
1 GND
2 RW_SW_RST
