NSA 5130 User Manual
Chapter 2: Jumpers and Connectors

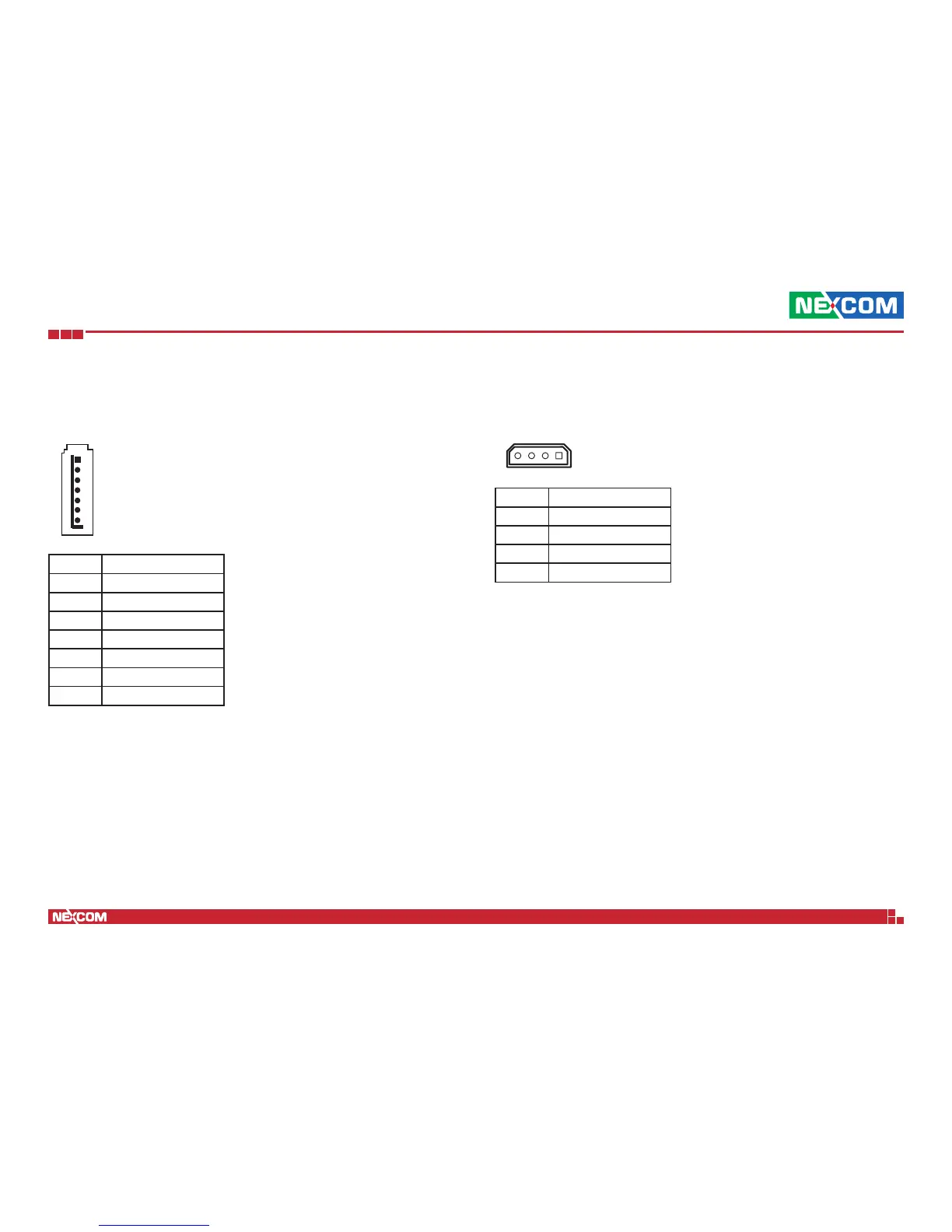

SATA4 Port
Connector type: Standard Serial ATAII, 1.27mm
Connector location: J14
Pin Definition
1 GND
2 SATA_TX0P
3 SATA_TX0N
4 GND
5 SATA_RX0N
6 SATA_RX0P
7 GND
1
7
SATA Power Connector
Connector type: 1x4 4-pin header
Connector location: J17
1
4
Pin Definition
1 VCC12
2 GND
3 GND
4 VCC5
