NSA 5130 User Manual
Chapter 2: Jumpers and Connectors

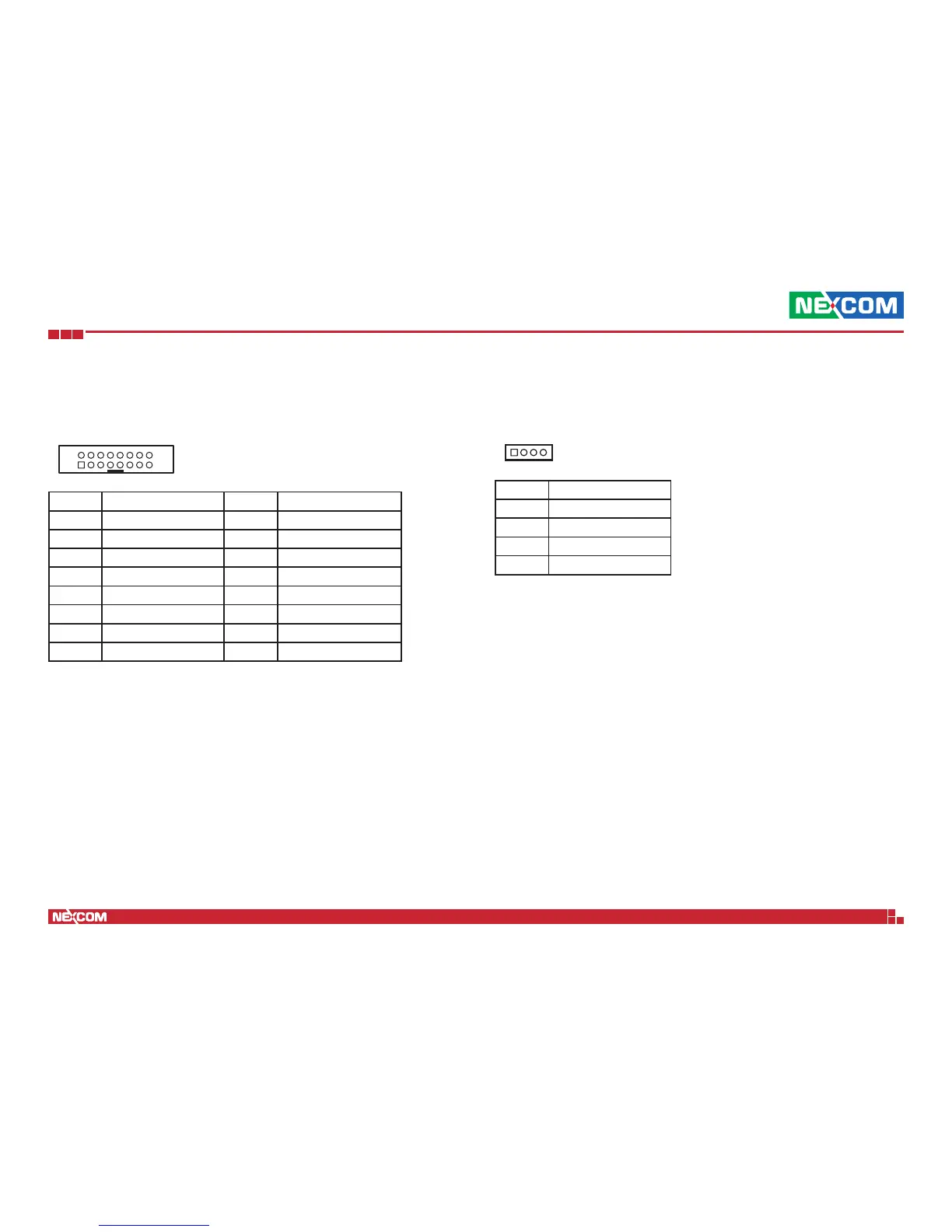

Parallel Interface for LCM Module
Connector type: 2x8 16-pin boxed header, 2.54 mm pitch
Connector location: CN2
1
2
15
16
Pin Definition Pin Definition
1 P5V 2 GND
3 LPT_SLIN#R 4 LPT_RES
5 LPT_AFD#R 6 LPT_INIT#R
7 LPT_PDR1 8 LPT_PDR0
9 LPT_PDR3 10 LPT_PDR2
11 LPT_PDR5 12 LPT_PDR4
13 LPT_PDR7 14 LPT_PDR6
15 LPT_PW 16 VCC5
LCM Keypad Connector
Connector type: 1x4 4-pin header, 2.54 mm
Connector location: JP2
1 4
Pin Definition
1 KEY_PIN1
2 KEY_PIN2
3 KEY_PIN3
4 KEY_PIN4
