NSA 5130 User Manual
Chapter 2: Jumpers and Connectors

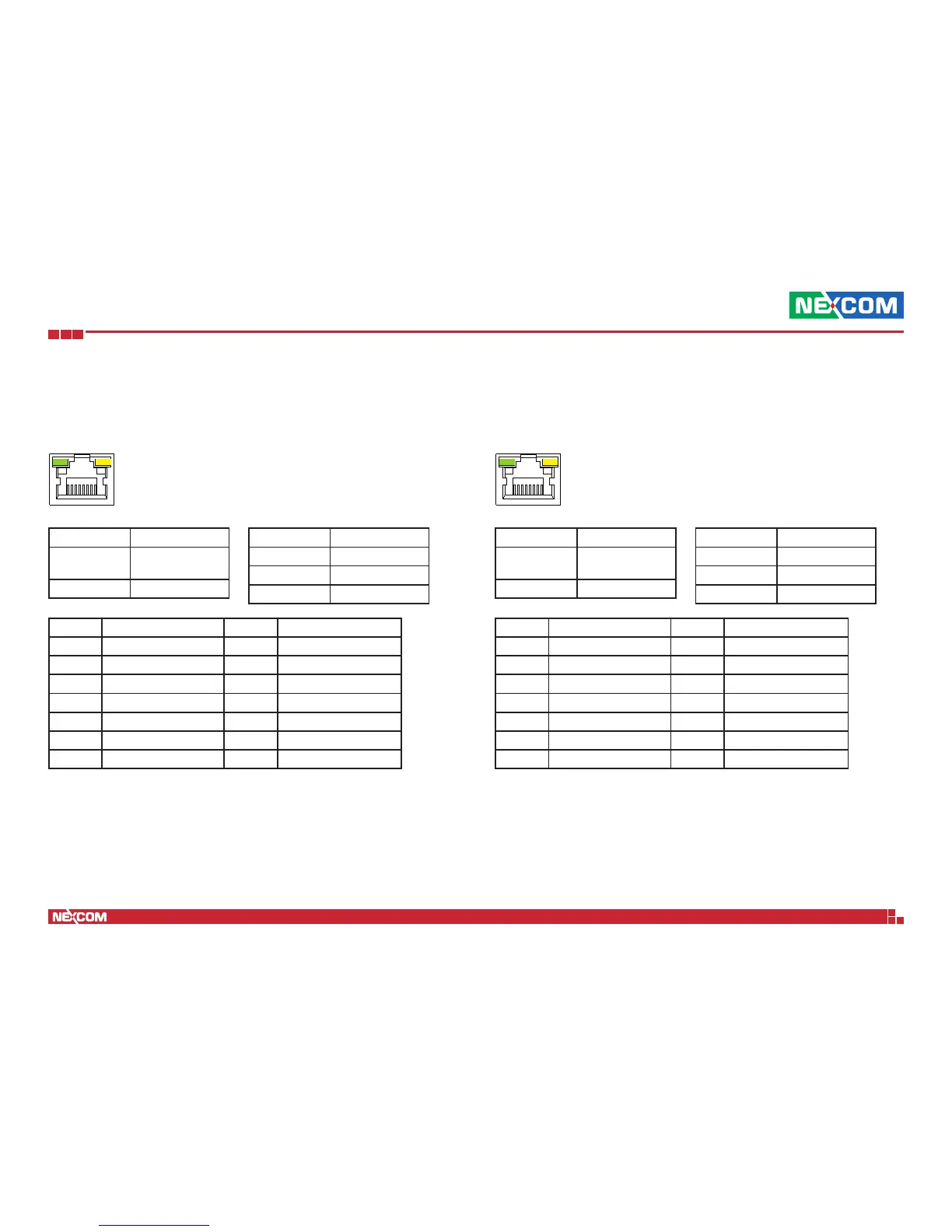

LAN3 Port
Connector type: RJ45 port with LEDs
Connector location: CON1C
Act
Link
Act Status
Green
Blinking
Data Activity
Off No Acitivity
Link Status
Green 1GB
Yellow 100MB
Off 10MB
Pin Definition Pin Definition
A1 LAN3_TXP0_CON A2 LAN3_TXN0_CON
A3 LAN3_TXP1_CON A4 LAN3_TXP2_CON
A5 LAN3_TXN2_CON A6 LAN3_TXN1_CON
A7 LAN3_TXP3_CON A8 LAN3_TXN3_CON
A9 LAN3_LED_LINK100# A10 LAN3_LED_LINK1G#
A11 LAN3_LED_ACT# A12 LAN3_ACTPW
MH1 GND_IO
LAN4 Port
Connector type: RJ45 port with LEDs
Connector location: CON1D
Act
Link
Act Status
Green
Blinking
Data Activity
Off No Acitivity
Link Status
Green 1GB
Yellow 100MB
Off 10MB
Pin Definition Pin Definition
A1 LAN4_TXP0_CON A2 LAN4_TXN0_CON
A3 LAN4_TXP1_CON A4 LAN4_TXP2_CON
A5 LAN4_TXN2_CON A6 LAN4_TXN1_CON
A7 LAN4_TXP3_CON A8 LAN4_TXN3_CON
A9 LAN4_LED_LINK100# A10 LAN4_LED_LINK1G#
A11 LAN4_LED_ACT# A12 LAN4_ACTPW
MH1 GND_IO
