Nexcom NSA 5130 - VGA Connector

Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
20
NSA 5130 User Manual
Chapter 2: Jumpers and Connectors
15
1115

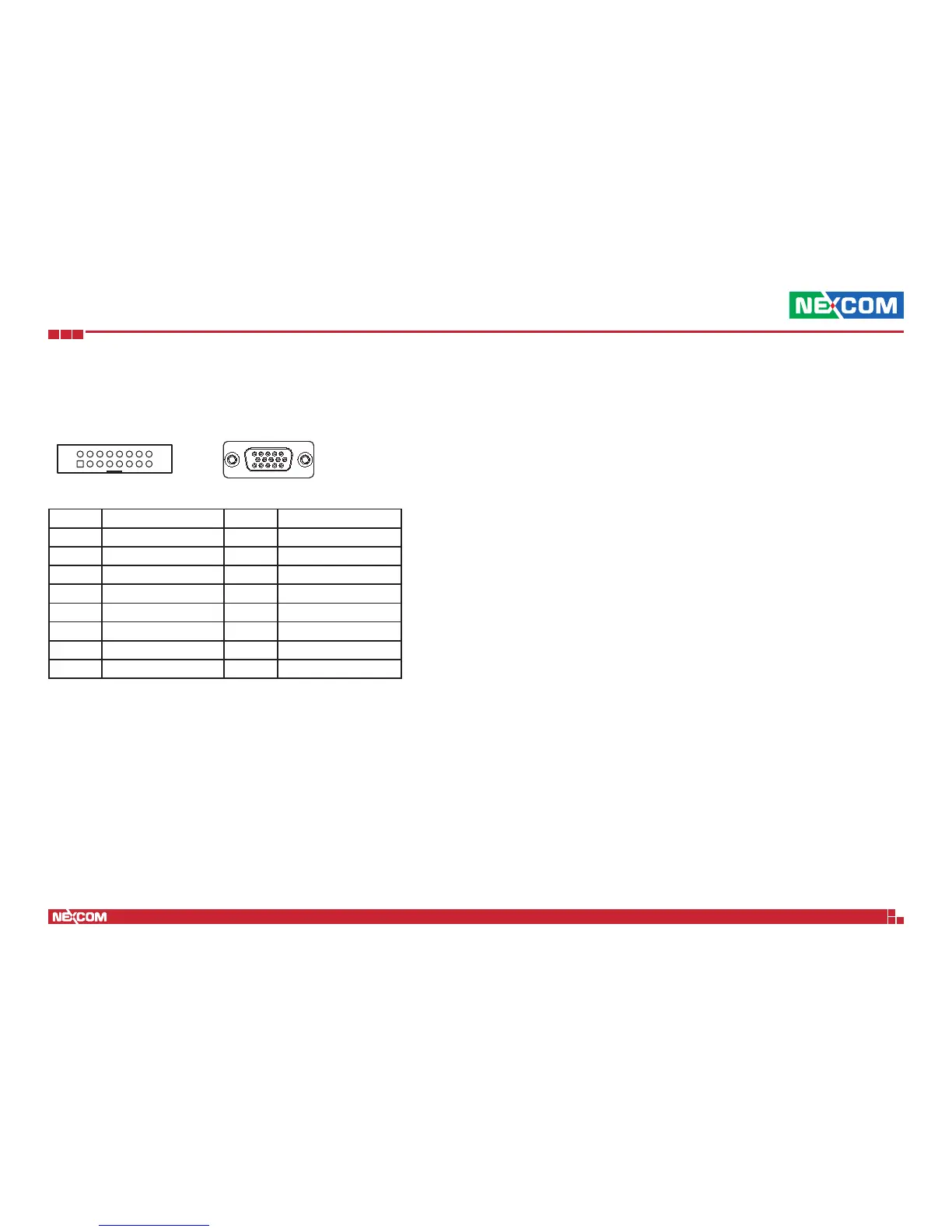

VGA Connector
Connector type: 2x8 16-pin box header, 2.0 mm pitch
Connector location: CN5
1
2
15
16
Pin Definition Pin Definition
1 VGA_R_CON 9 VGA_VCC
2 VGA_G_CON 10 GND
3 VGA_B_CON 11 NC
4 NC 12 VGA_I2CDAT_CON
5 GND 13 VGA_HSYNC_CON
6 GND 14 VGA_VSYNC_CON
7 GND 15 VGA_I2CCLK_CON
8 GND 16 NC
