NSA 5130 User Manual
Chapter 3: System Setup

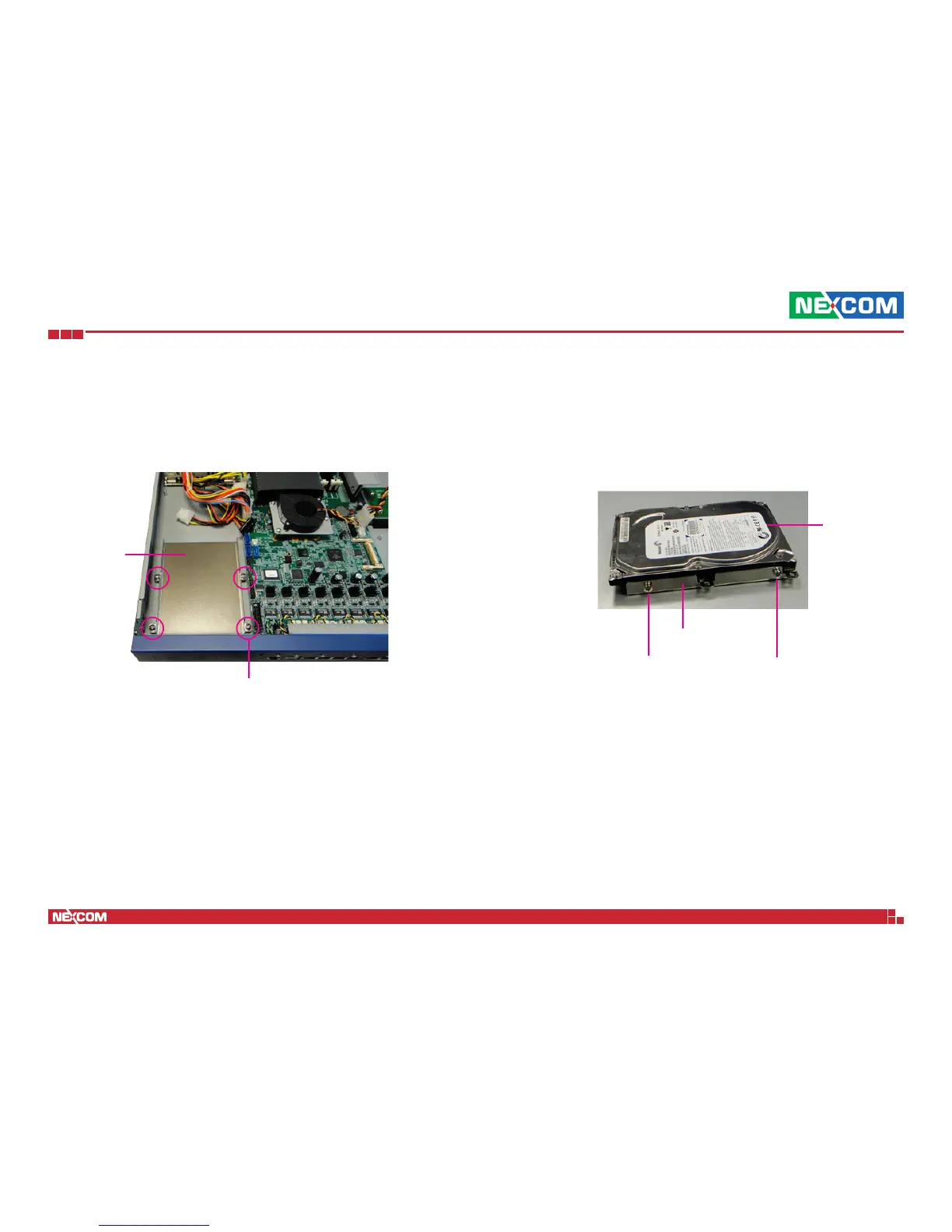

Installing a 3.5” SATA Hard Drive
Drive bay
Mounting screw
1. Remove the mounting screws that secure the drive bay to the chassis.
Remove the drive bay. The drive bay is used to hold a 3.5” SATA hard
drive.
2. Place the SATA hard drive onto the drive bay. Align the mounting holes
that are on the sides of the SATA drive with the mounting holes on the
drive bay. Use the provided mounting screws to secure the SATA drive
in place.
Drive bay
SATA drive
Mounting screw
Mounting screw
To Next Page
