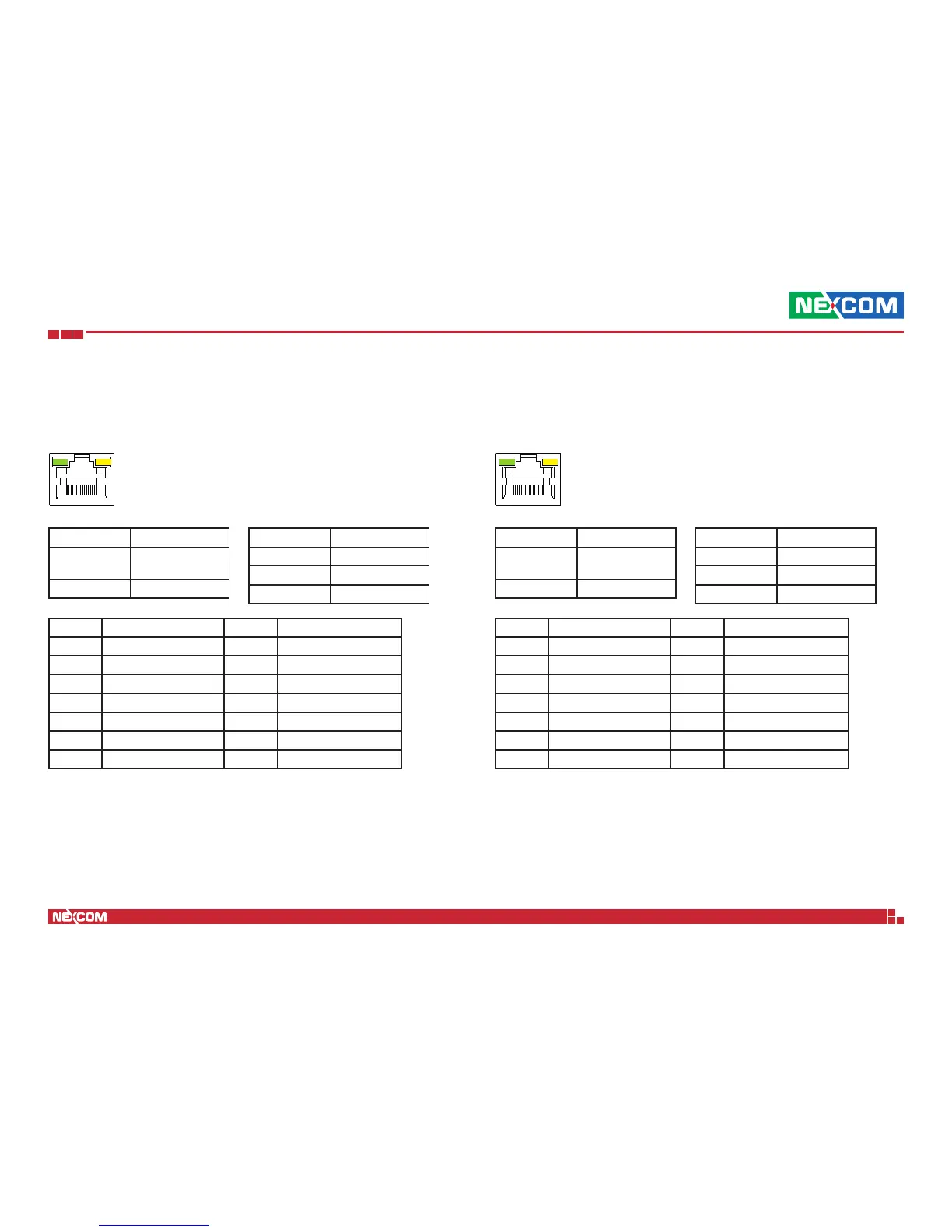

Nexcom NSA 5130 - LAN5 Port; LAN6 Port

Copyright © 2011 NEXCOM International Co., Ltd. All Rights Reserved.
18
NSA 5130 User Manual
Chapter 2: Jumpers and Connectors
LAN5 Port
Connector type: RJ45 port with LEDs
Connector location: CON2A
Act
Link
Act Status
Green
Blinking
Data Activity
Off No Acitivity
Link Status
Green 1GB
Yellow 100MB
Off 10MB
Pin Definition Pin Definition
A1 LAN5_TXP0_CON A2 LAN5_TXN0_CON
A3 LAN5_TXP1_CON A4 LAN5_TXP2_CON
A5 LAN5_TXN2_CON A6 LAN5_TXN1_CON
A7 LAN5_TXP3_CON A8 LAN5_TXN3_CON
A9 LAN5_LED_LINK100# A10 LAN5_LED_LINK1G#
A11 LAN5_LED_ACT# A12 LAN5_ACTPW
MH1 GND_IO
LAN6 Port
Connector type: RJ45 port with LEDs
Connector location: CON2B
Act
Link
Act Status
Green
Blinking
Data Activity
Off No Acitivity
Link Status
Green 1GB
Yellow 100MB
Off 10MB
Pin Definition Pin Definition
A1 LAN6_TXP0_CON A2 LAN6_TXN0_CON
A3 LAN6_TXP1_CON A4 LAN6_TXP2_CON
A5 LAN6_TXN2_CON A6 LAN6_TXN1_CON
A7 LAN6_TXP3_CON A8 LAN6_TXN3_CON
A9 LAN6_LED_LINK100# A10 LAN6_LED_LINK1G#
A11 LAN6_LED_ACT# A12 LAN6_ACTPW
MH1 GND_IO
