12 Installation and System Design Guide
Issue Number: 1
2.2 Model number
The way in which the model numbers for the E300 Elevator drive range is formed is illustrated below:

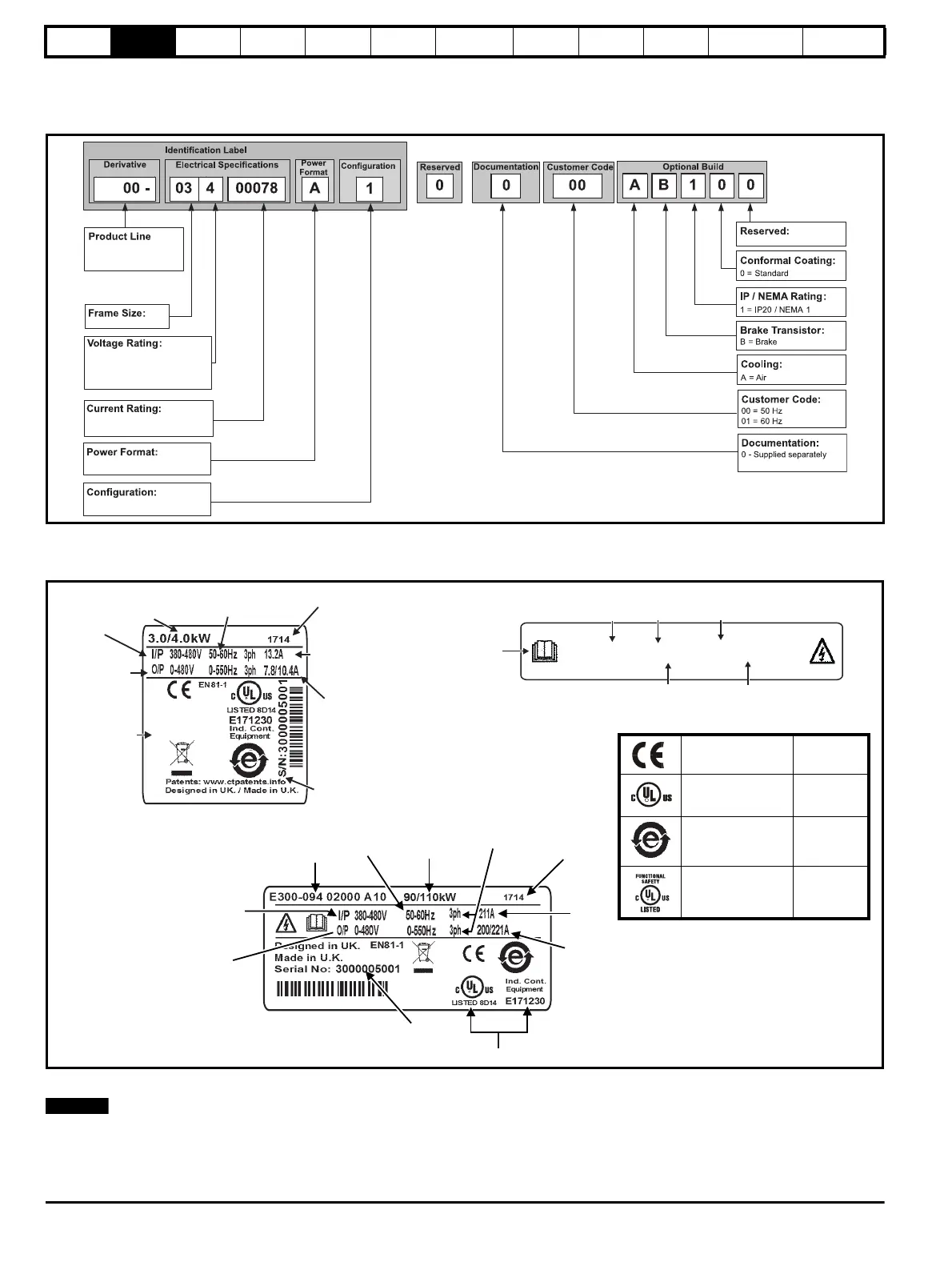

Figure 2-1 Model number
2.3 Nameplate description
Figure 2-2 Typical drive rating labels
* This label is only applicable to size 7 upwards.
Date code format
The date code is four numbers. The first two numbers indicate the year and the remaining numbers indicate the week of the year in which the drive
was built.
Example: A date code of 1710 would correspond to week 10 of year 2017.
E
3
1 - Standard
A - AC in AC out
Heavy Duty current rating x 10
2 - 200 V (200 - 240 ±10 %)
4 - 400 V (380 - 480 ±10 %)
5 - 575 V (500 - 575 ±10 %)
6 - 690 V (500 - 690 ±10 %)
E300 - 1 x STO,
RS845 comms
Model
Input
voltage
Input
frequency
Power rating
Date code
Number of
input phases
Input
current
Output
current
Approvals
Output
voltage
Serial
number
Refer to
Documentation
Model
Frame
size
Voltage
Current rating
Drive format
E300 - 032 00050 A
Approvals
Input voltage
Output
voltage
Power rating
Date code
Serial
number
Input
frequency
No.of phases &
Typical input current
Output current rating
Key to
CE approval Europe
UL / cUL approval
USA &
Canada
RoHS compliant China
Functional safety
USA &
Canada
R
Large label *
NOTE

Nidec E300 Series Specifications
