Installing or Replacing a Hard-Disk Drive
IP390, 105i & 105s Security Platform Installation Guide 81
chassis body and care should be taken when working on the power
supply or power supply wiring without disconnecting the power cord.

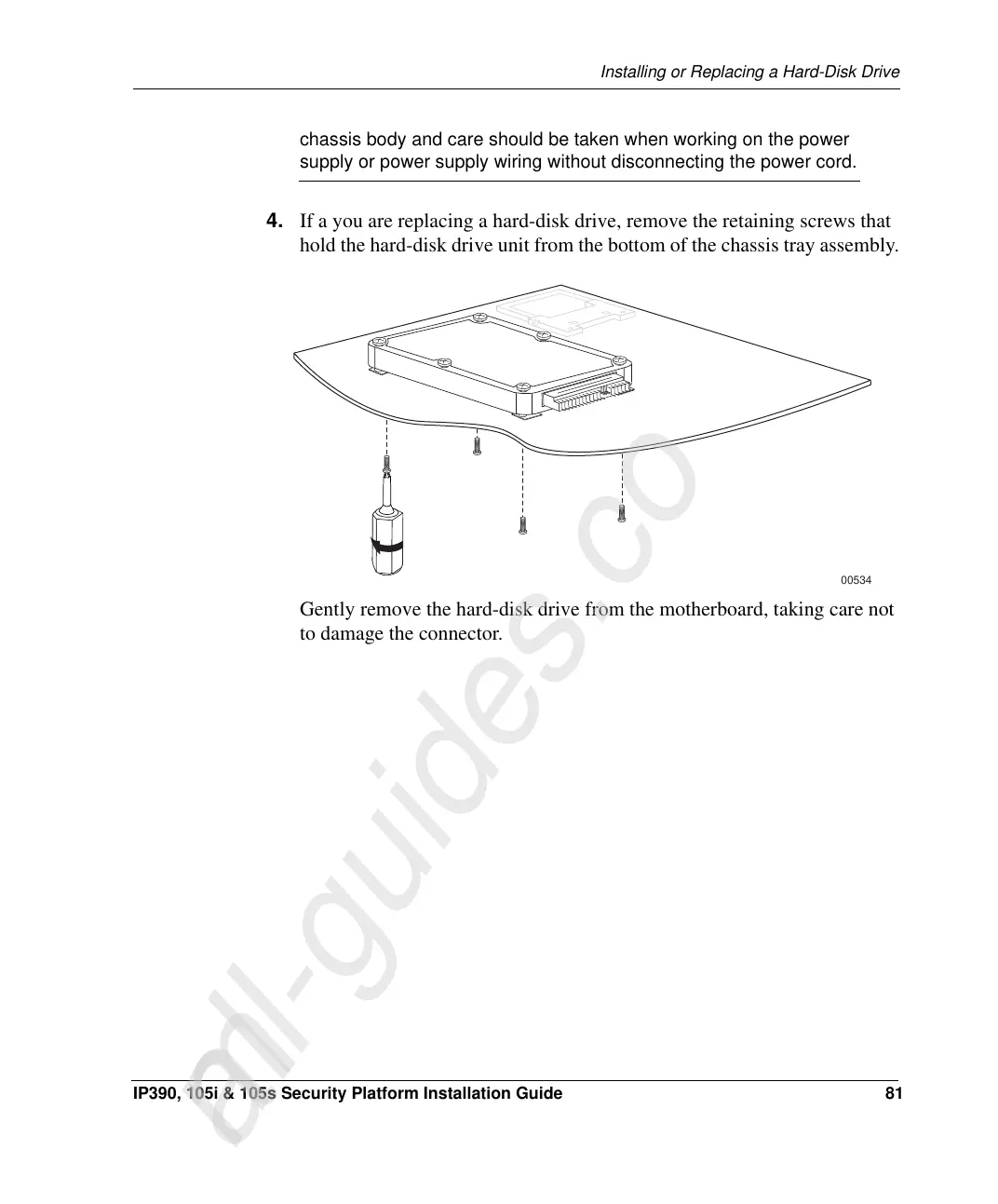

4. If a you are replacing a hard-disk drive, remove the retaining screws that
hold the hard-disk drive unit from the bottom of the chassis tray assembly.
Gently remove the hard-disk drive from the motherboard, taking care not
to damage the connector.
00534
