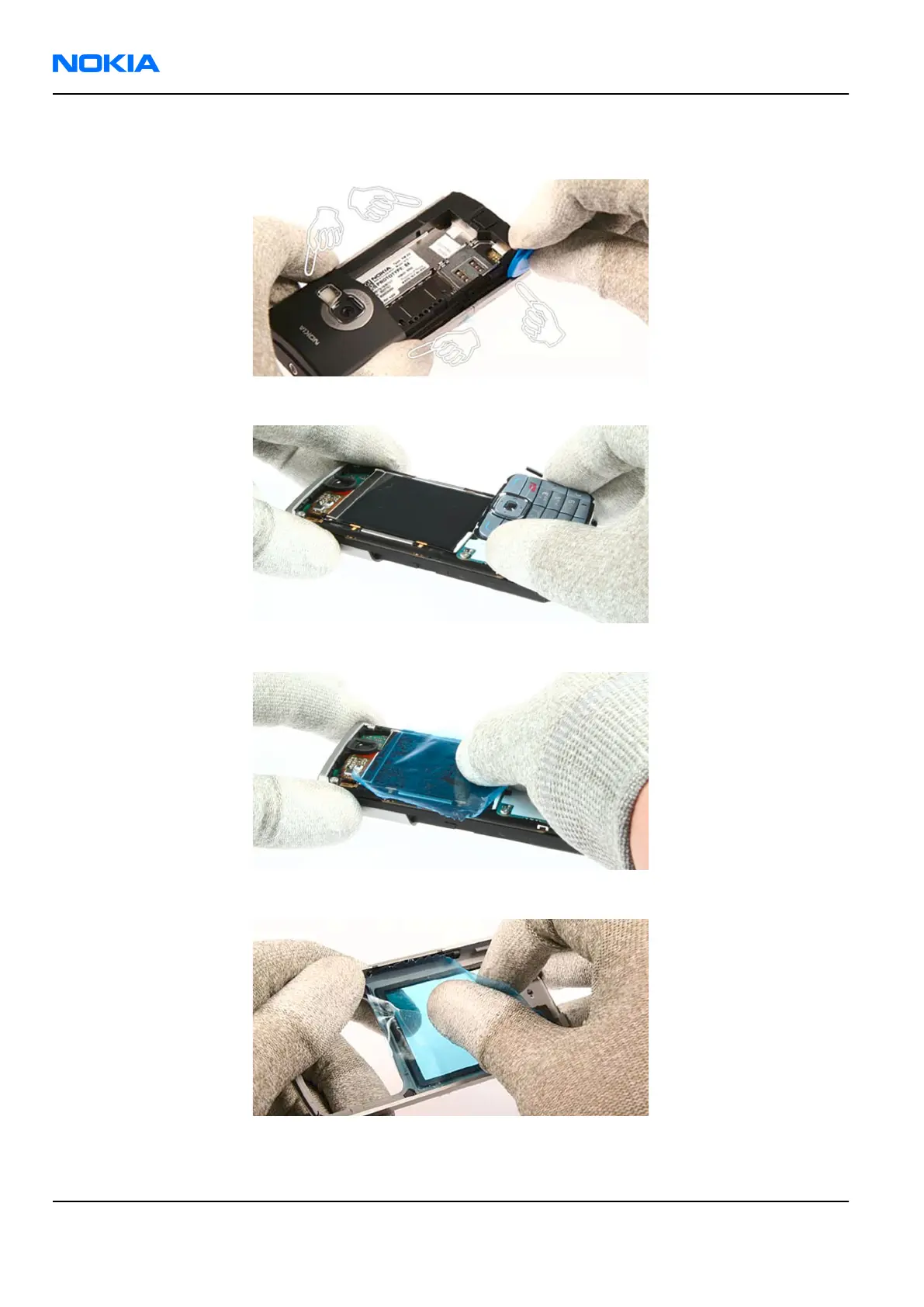

3. Place SRT-6 between the A-Cover and Chassis; release the 4 plastic clips beginning from the bottom
side as shown.
4. Remove the Keymat.
5. Protect the LCD with a plastic film.
6. Protect the inner side window of the A-Cover with a film.
RM-180
Nokia Customer Care Disassembly/Reassembly Instructions
Page 5 –6 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.
