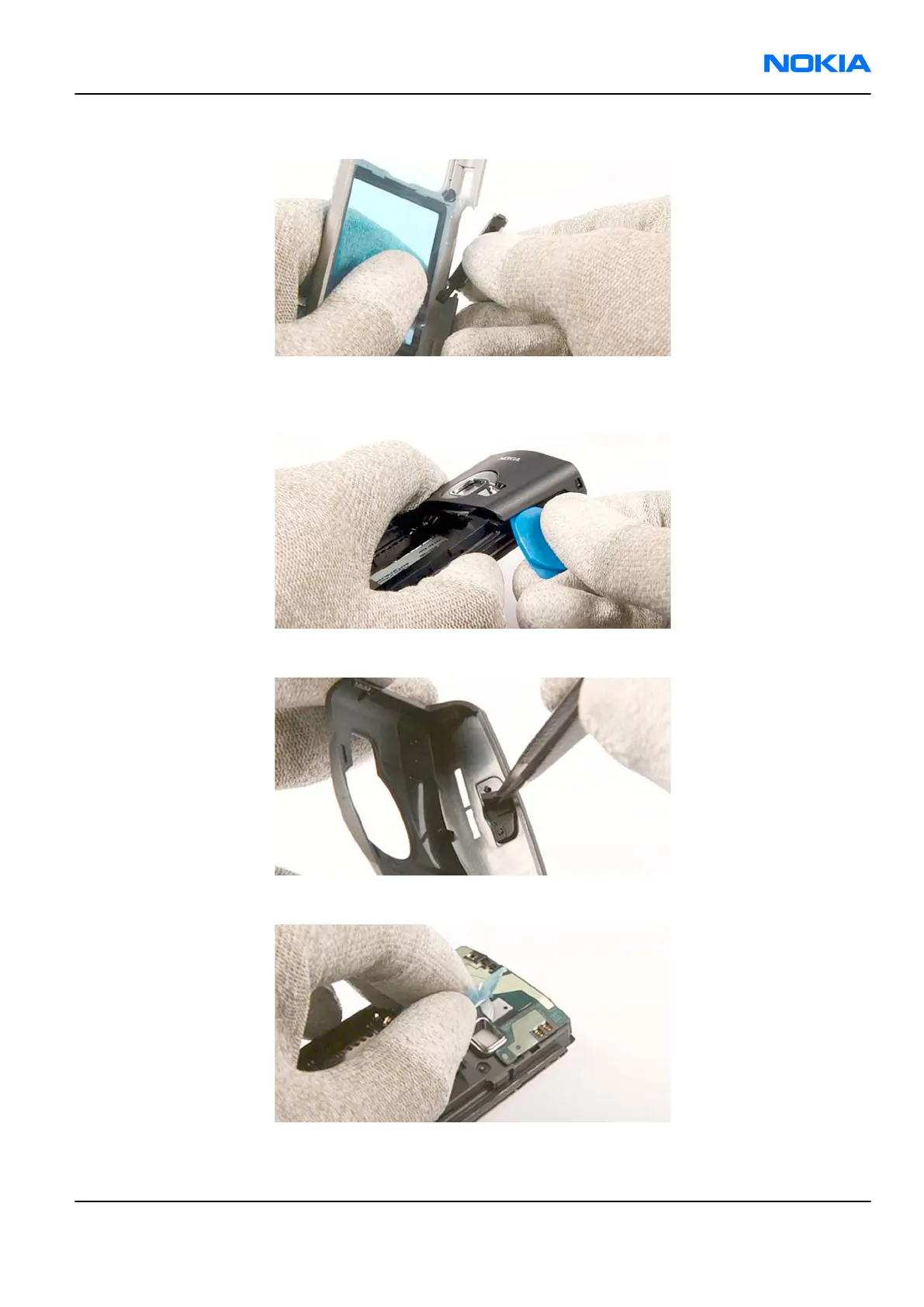

7. Remove the MMC door from the A-Cover.
8. Insert SRT-6 between the Antenna Cover and the Chassis Assy, and open the Antenna Cover clips.
Note: Additional force may be required to open the clips.
9. Use the tweezers to remove the Power Button.
10. Protect the Camera Rear Bezel Assy with a plastic film before turning the unit.
11. Unscrew the 6 Torx size 6 plus screws in the order shown.
Note: When reassembling, use the reverse order and the torque of 25 Ncm.
RM-180
Disassembly/Reassembly Instructions Nokia Customer Care
Issue 1 COMPANY CONFIDENTIAL Page 5 –7
Copyright © 2006 Nokia. All rights reserved.
