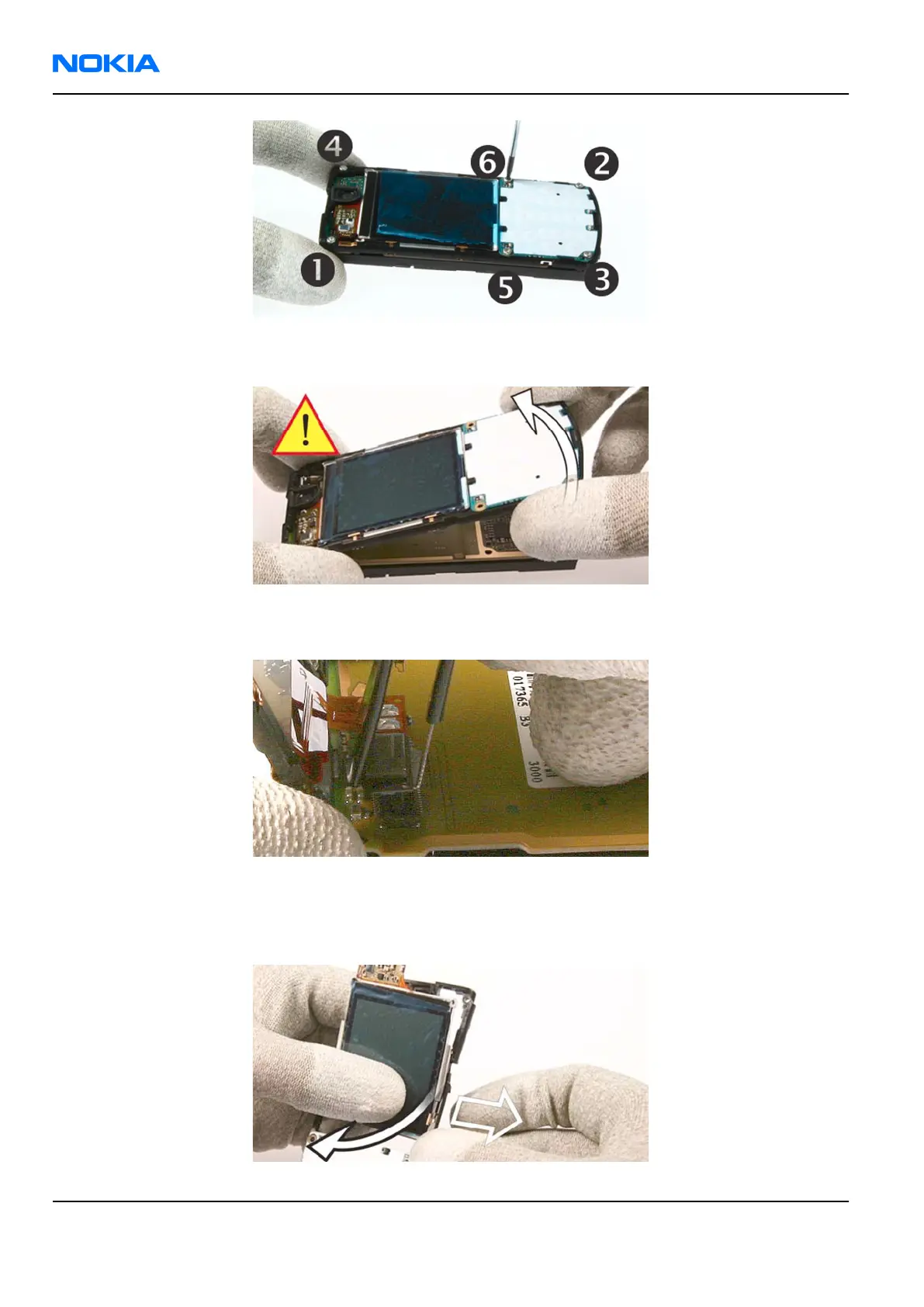

12. Lift the UI Frame from the Chassis. Be careful not to damage the flex foil of the LCD, which is still
connected.
13. Open the flex connector with the SS-34 flex connector opening tool.
Note: Be careful not to damage the surrounding components when using the tool.
After you have opened the flex connector, you can remove the UI Frame.
14. To open each clip of the LCD from the UI Frame, carefully move the UI Frame sideward while pulling
the LCD forward.
