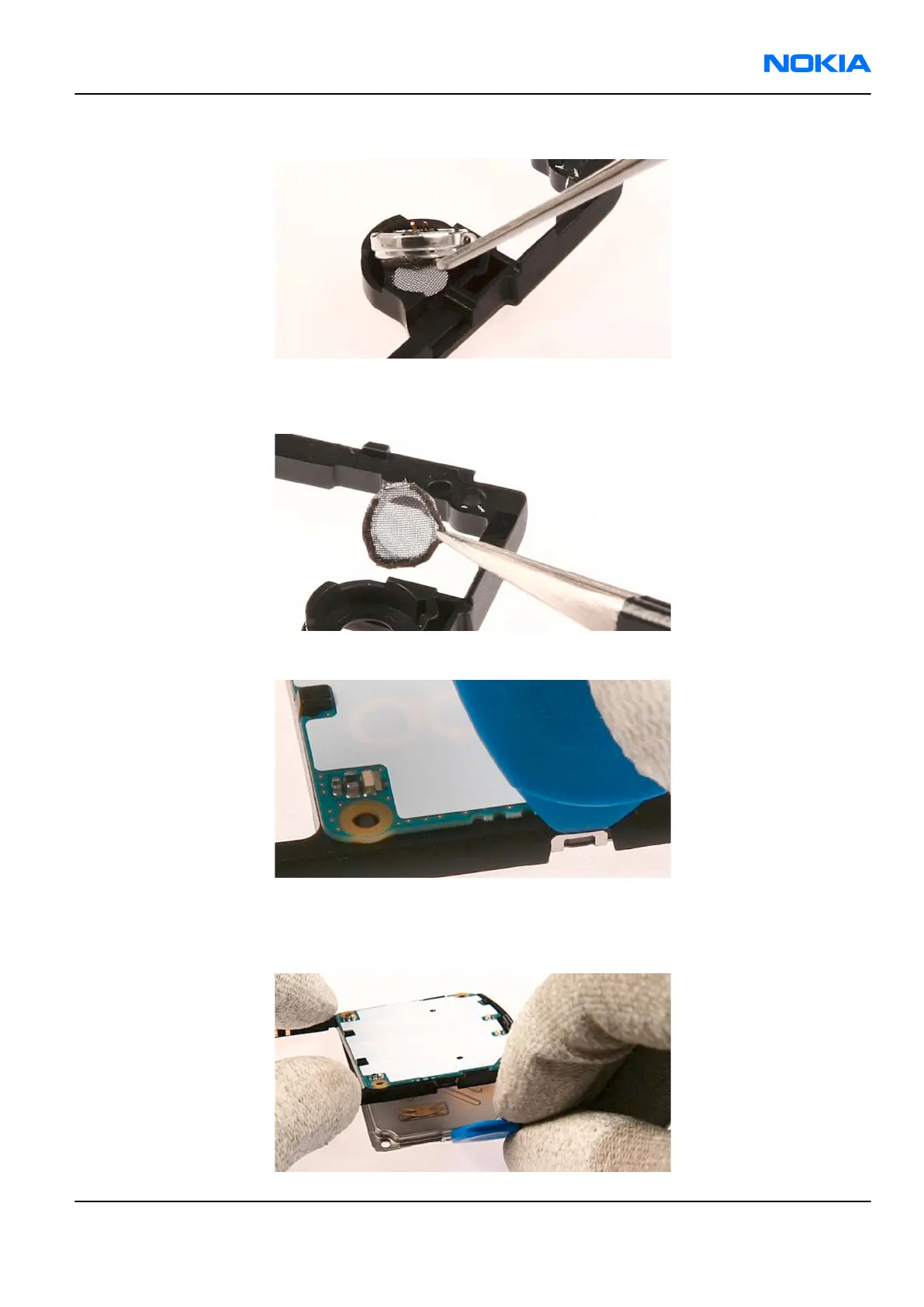

15. Use the dental tool to remove the Earpiece.
16. Use the tweezers to remove the Earpiece Gasket from its compartment.
Note: When reassembling, always use a new gasket.
17. Use SRT-6 to unlatch the BB shield.
18. To remove the BB shield from the UI Frame, hold the frame in your left hand and push down the BB
Shield with SRT-6.
Note: When reassembling, always use a new BB Shield.
