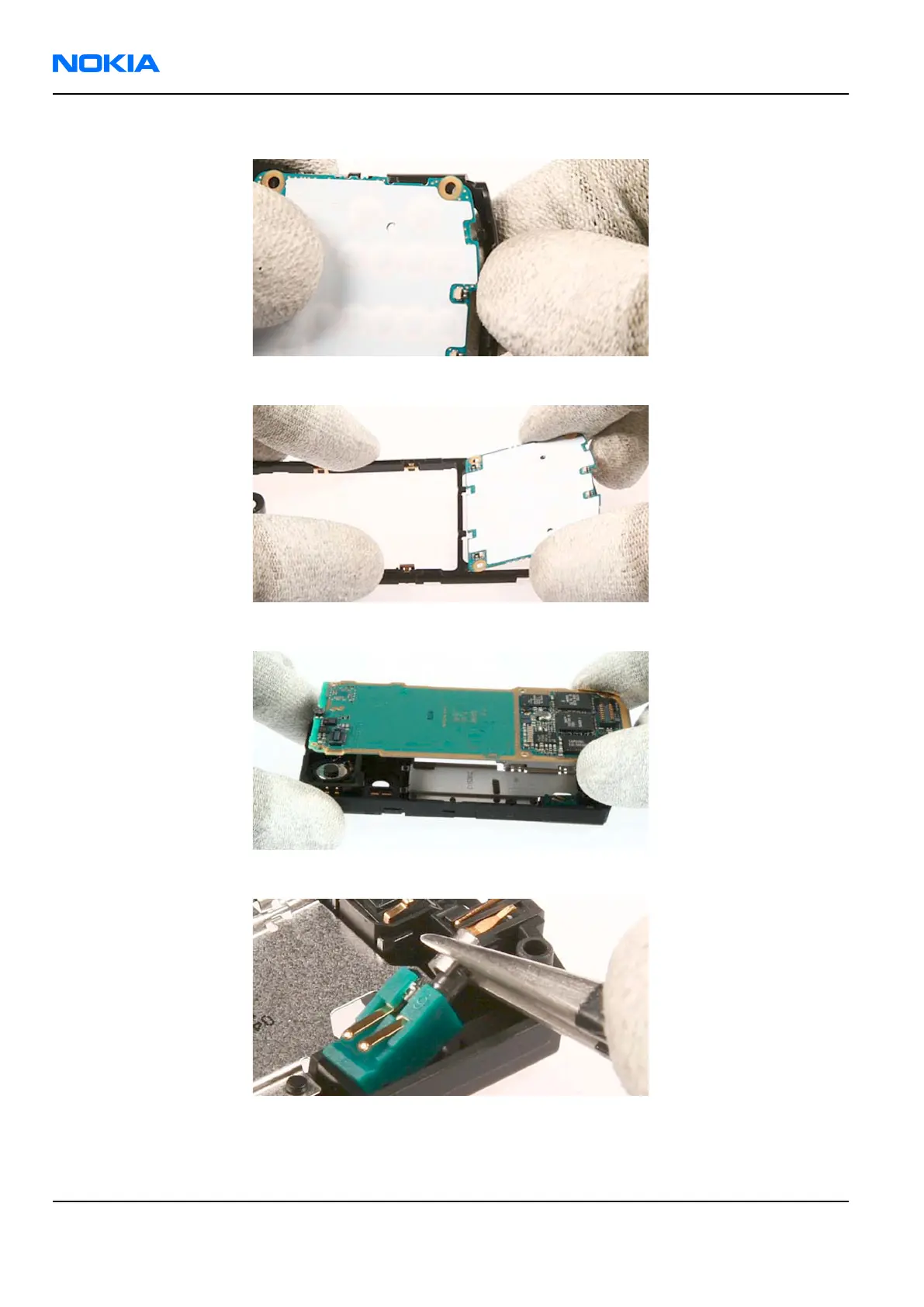

19. To unlock the UI PWB from the UI Frame, carefully pull the PWB upwards.
20. Remove the UI PWB.
21. Remove the Engine Module, and place it onto the RJ-94 jig.
22. Use the tweezers to remove the Vibra Motor.
