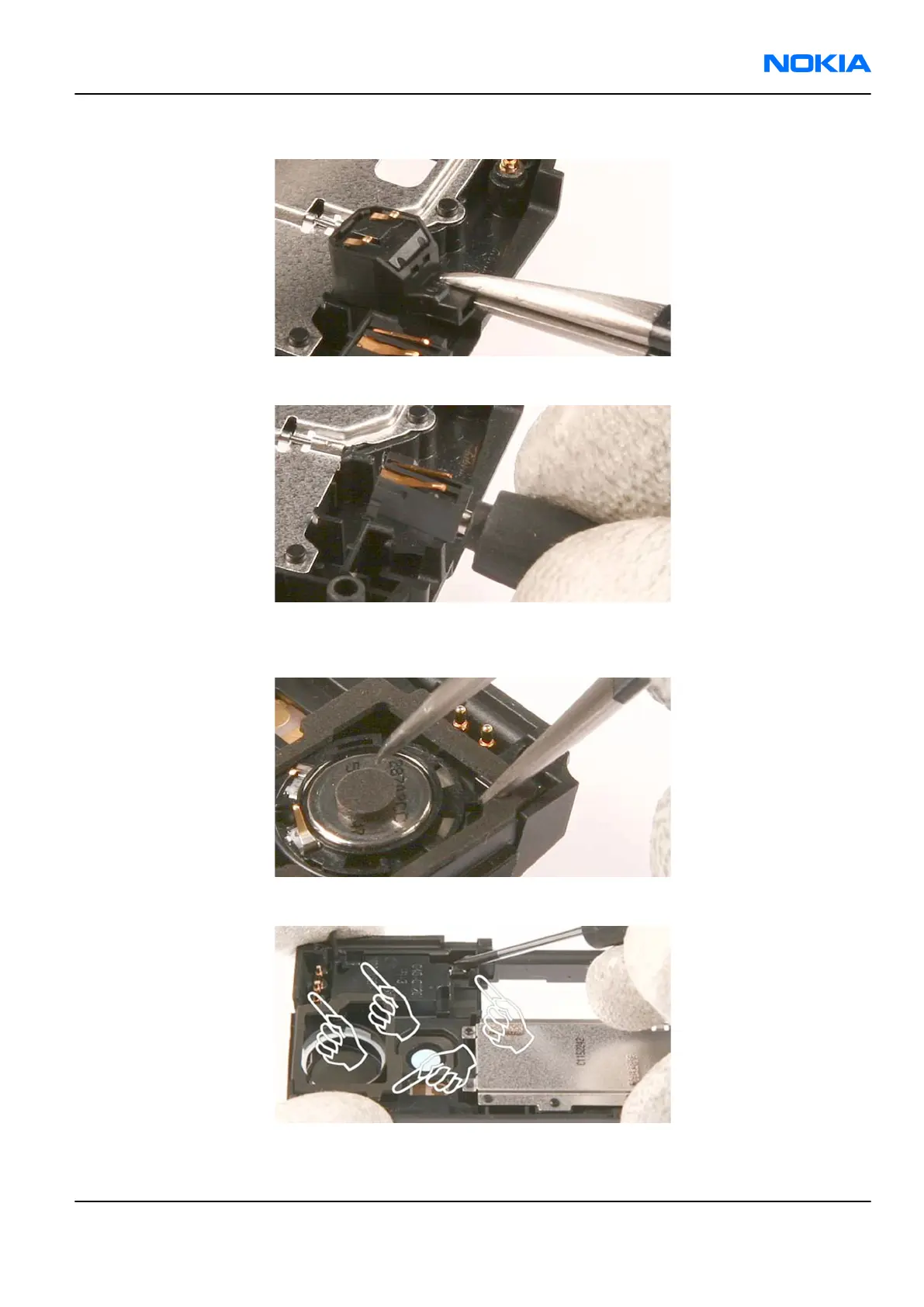

23. Use the tweezers to pull out the Microphone.
24. Use the DC plug to remove the DC Jack.
25. Use the tweezers to lift out the IHF speaker.
Note: When reassembling, note the guide pin.
26. Unlock the 5 plastic clips of the Antenna in the places shown.
