9. Connect the signal generator to the phone and set frequency and amplitude as instructed in the
Tuning
step 1 of 3 - Rx Band Filter Response Compensation for EGSM900
pop-up window.
10. To perform the tuning, click OK.
11. Go through all 9 frequencies.

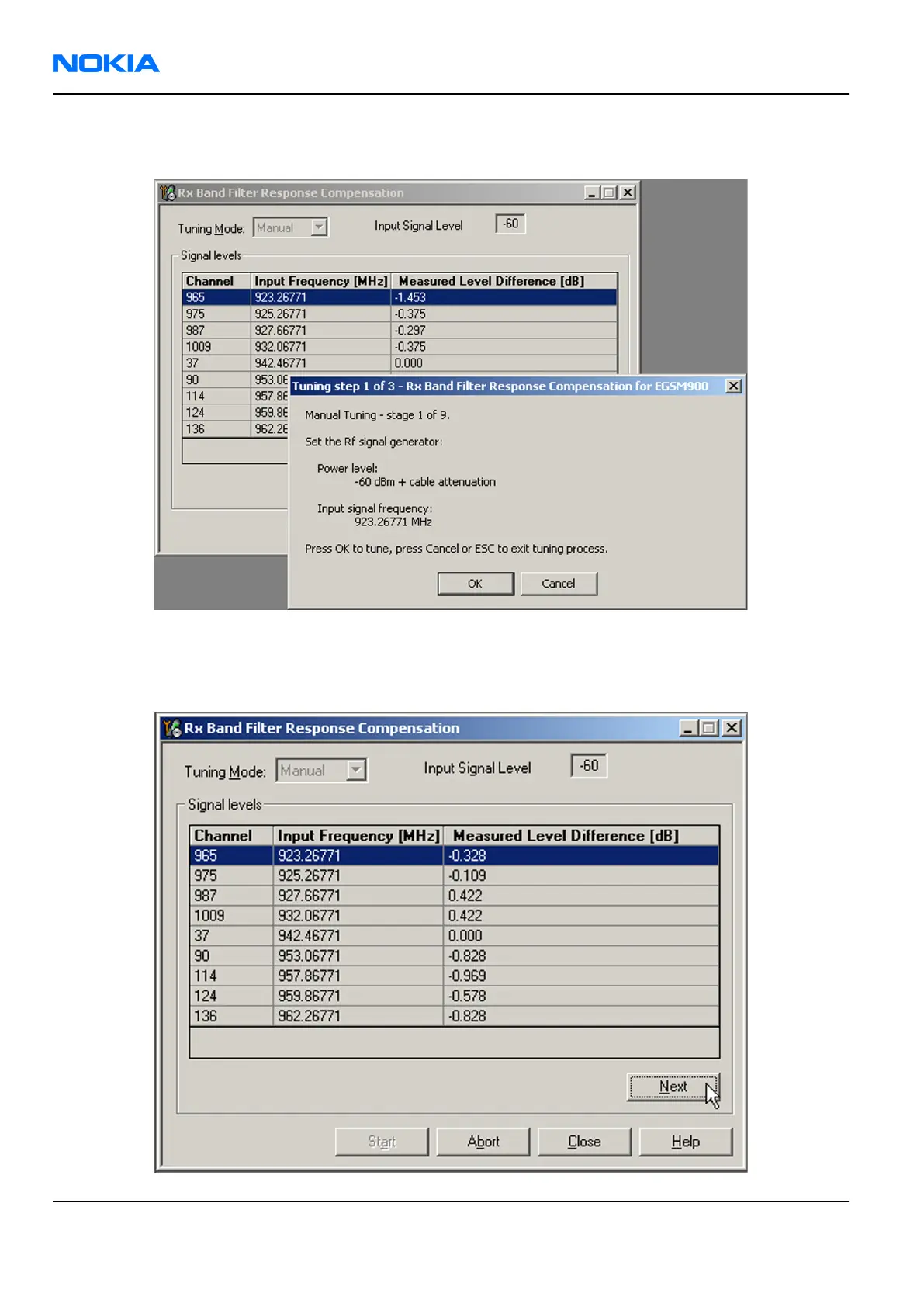

The following window appears, showing signal levels for the input frequencies:
RM-180
Nokia Customer Care RF Troubleshooting and Tuning Guide
Page 7 –24 COMPANY CONFIDENTIAL Issue 1
Copyright © 2006 Nokia. All rights reserved.
