Nordson FP-200 User Manual

2
1
A
B
C
D
Installation
3-10
Part 237478_03
E 2012 Nordson Corporation
Connecting the Gun to the Hose and Air Line (contd)
8. Wrap the hose straps around hydraulic hose, following the steps
illustrated in Figure 3‐8.
NOTE: It is very important that this hose wrapping technique be followed.
Other methods may not provide the correct friction without pinching or
constricting the hose.
a. Wrap the straps around the hoses approximately four feet from the
gun end of the hose.
b. Insert the plastic tie strap from the installation kit through all four
grommet holes.
c. Tighten the tie strap to a 3‐inch diameter loop. Trim excess tie strap.
d. Hang the wrapped hose by the plastic tie strap to the tool balancer.

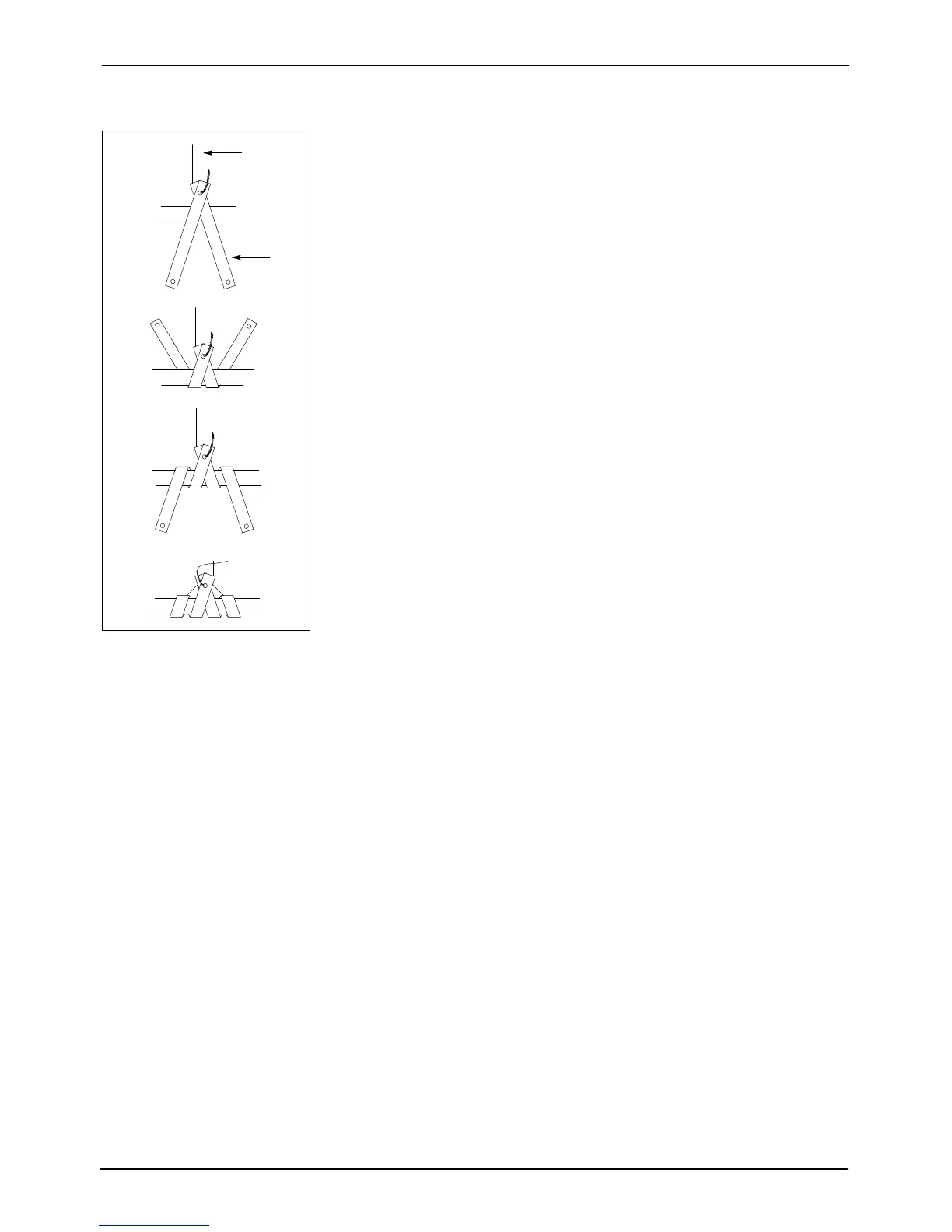

Figure 3‐8 Hose Straps
1. Plastic tie strap
2. Nylon straps with grommets

Nordson FP-200 Specifications

General

Brand	Nordson
Model	FP-200
Category	Paint Sprayer
Language	English
