Big Numerics screen allows observing NIBP+SPO2 parameters and one blood oxygen
binding capacity scan wave.
6.2.3 ECG 7-Lead Half-Screen
ECG 7-Lead Half-Screen
6-3：

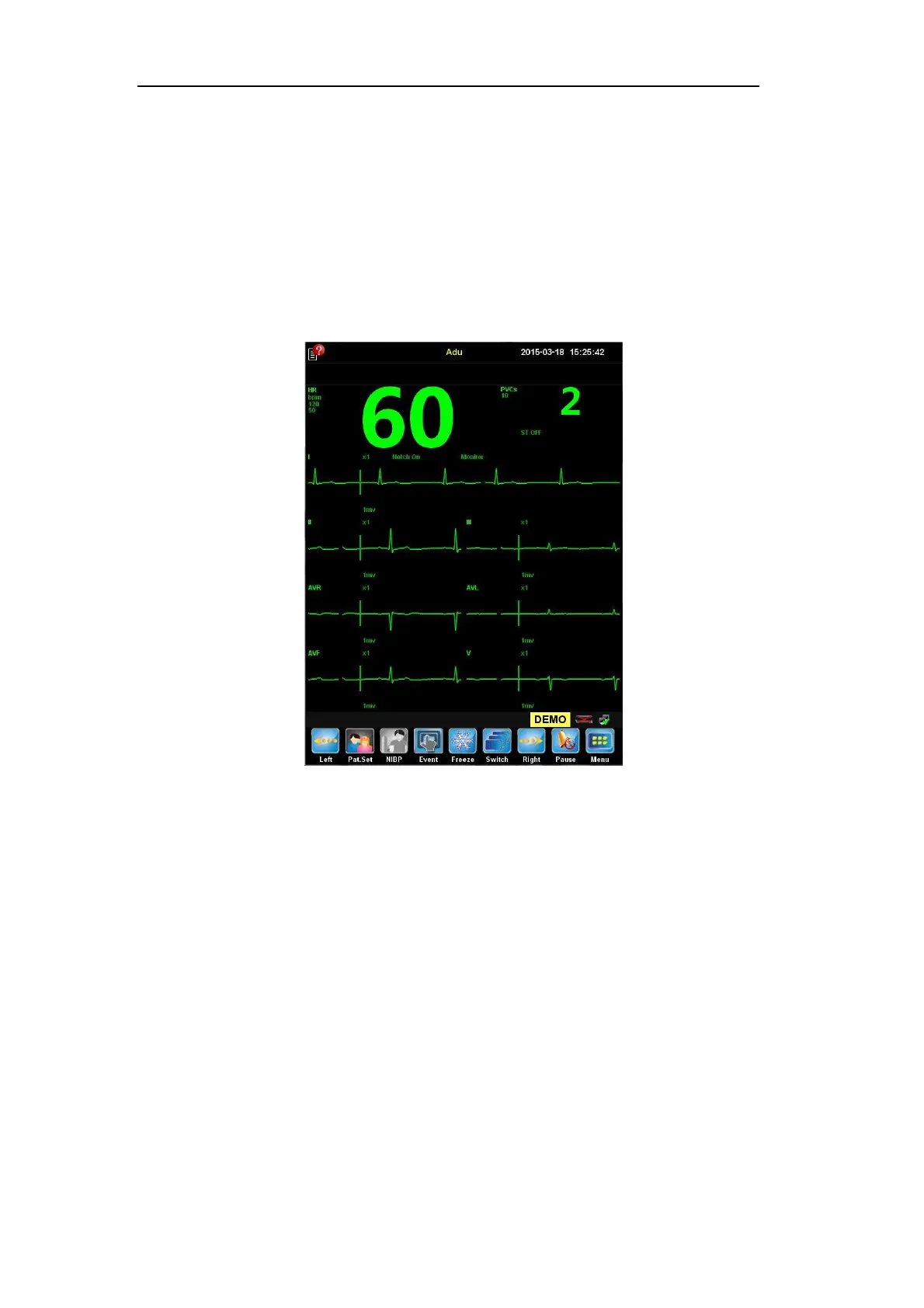

Fig.6-3 ECG 7-Lead Half-Screen
ECG 7-Lead Half-Screen allows observing all parameters, seven ECG waves (I, II, III, AVR, AVL,
AVF, V)
