21Northstar Explorer 650 Installation and Operation Manual

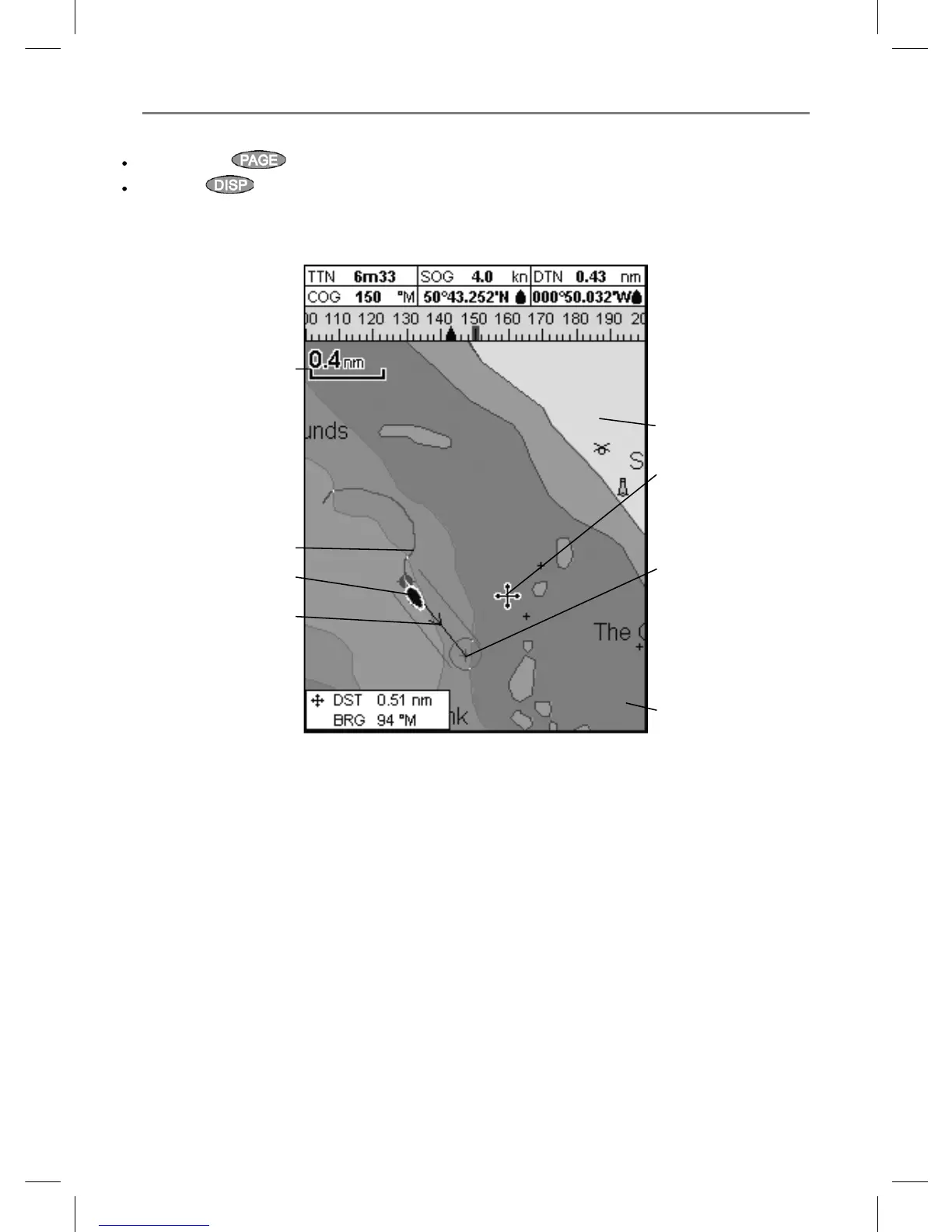

A typical chart display shows:
3-2 Chart display
To go to the Chart display:
either press
one or more times until the chart is displayed
or press , select Chart, then select Chart.
A Data header. To turn the data off or on or to
change what data is displayed (see section
2-7-3)
B Compass (see section 2-7-4)
C Chart scale (see section 3-2-3)
D Boat position (see section 3-2-1)
E Boat track (see section 3-5)
F Boat course and CDI lines (see Appendix C,
CDI). The boat is going to the waypoint called
FISH6
G Distance and bearing of cursor from boat
H Land
I Sea
J The cursor (see section 3-2-1)
K A typical waypoint (see section 5)
Note:
To change the types of information displayed on
the chart, see section 17-2.
To change to a perspective view of the chart, see
section 3-2-6.
D
E
J
H
I
K
C
A
B
F
G
