13 Tides display
The tides display is available on C-MAP charts.
The tides display shows tide information at a tide
station for the selected date.
Note: The tides display requires the local time
offset to be set to work correctly (see section
14-11)
To show the tides display for the tide station
nearest to the boat, press
, select Other,
then select Tides.
To go to the tides display for any tide station:
1 From the chart display, press
and
select Find.
2 Select Tide stations.
3 A list of tide stations are displayed. Select the
tide station to display. The chart redraws with
the tide station centred.
4 Press
and select Chart info.
5 Select Tide height.
Choosing the date of the tide chart
1 Press
.
2 Select Today, Next day or Prev day.
To choose a different date from these, select
Set date, edit the date, press
.

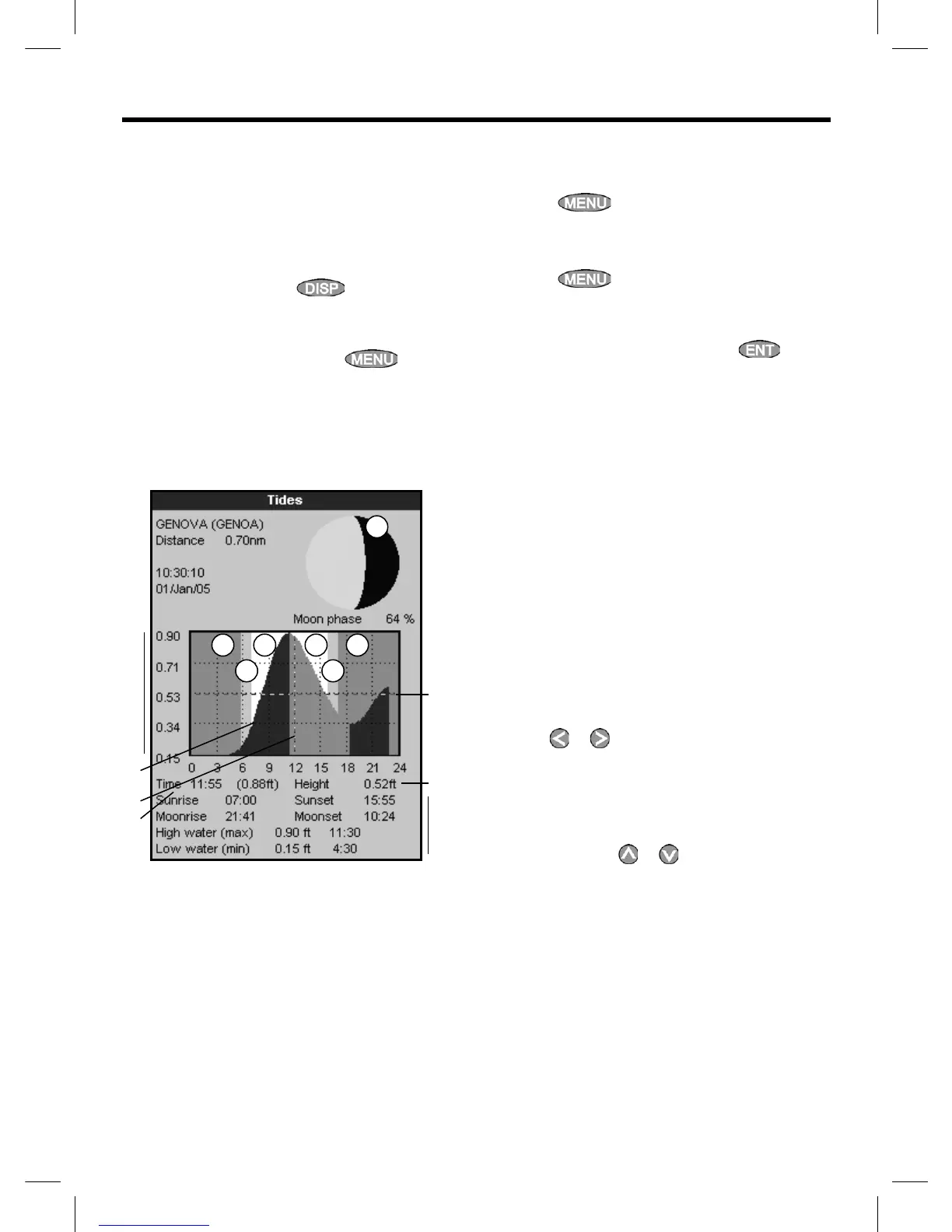

A Tide station name and distance from
boat
B Current time and chosen date for display
C Tide chart
D Night
E Dawn
F Day
G Dusk
H Tide height
I Time cursor, a vertical dotted line. Press
or to move cursor sideways
J Time of cursor and tide height at that
time
K Data for the chosen date
L Tide height cursor, a horizontal dotted
line. Press
or to move cursor up
and down.
M Height of cursor on the tide chart
N Moon phase for moon at the current
time on the chosen date
The tides display shows data for the chosen date
A
C
B
D
E
F
G
D
F
L
M
N
H
I
J
K
