NTN K-ECF25 - Driving and Adjustment Procedures; Operation Panel & Key Usage

21
8. Driving and adjustment

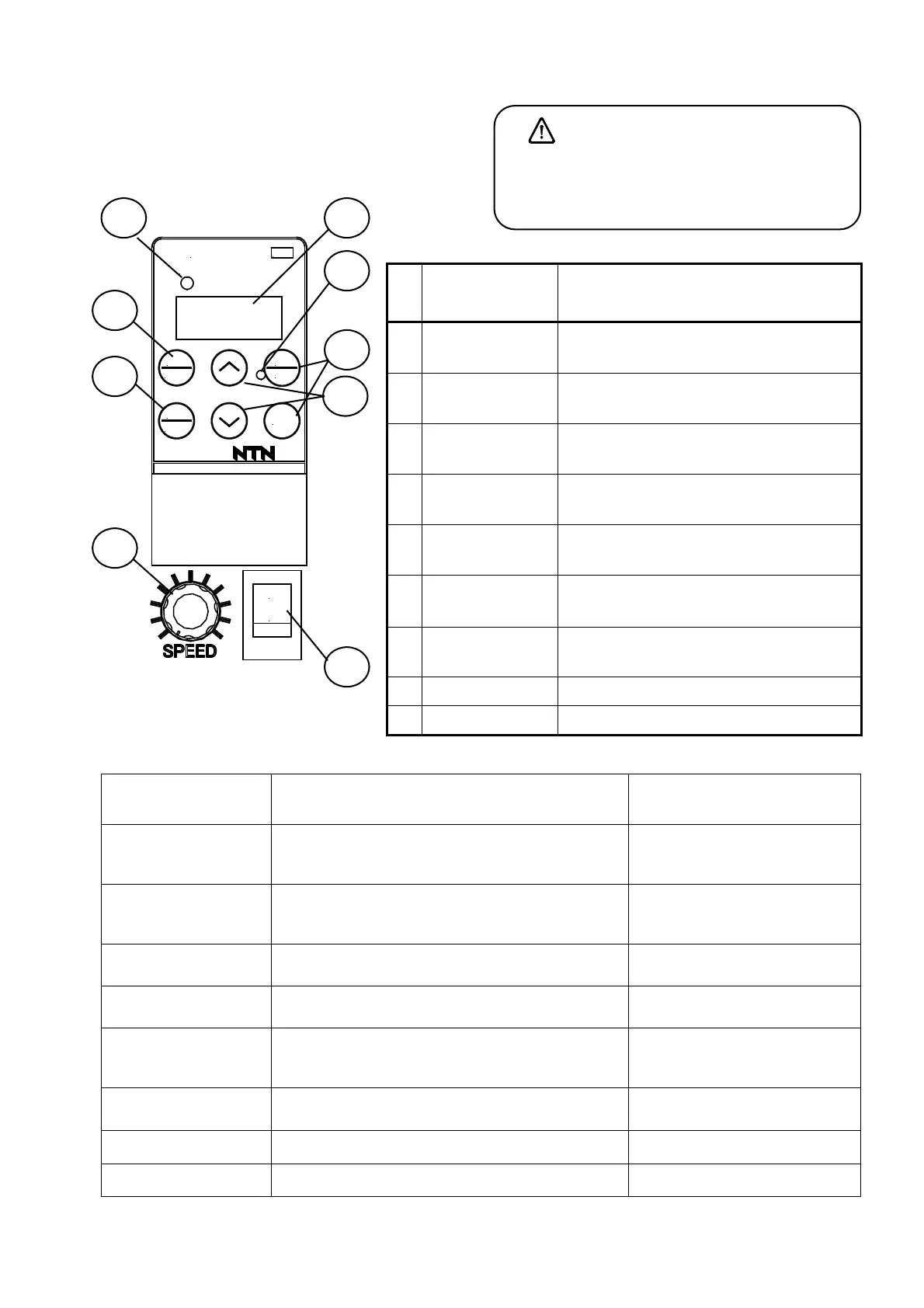

Description of the operation panel
№
Name of each
portion
Description
A
Data display portion
(LED)
LED of 7 seg 4 digits. Monitoring of various
kinds of data, display of setting, warning etc.
B Pilot lamp
Pilot lamp lights when controller is in
outputting (driving) state.
C
Function key
(Reset key)
Switching to function setting mode and return,
reset of emergency
D
Data key
(Enter key)
Setting of data, switching of monitor content,
setting of knob lock function
E
UP/DN key
(Up/Down key)
Up/Down of function and data when data
setting
F RUN/STOP key
Drive/stop is operated when panel operation is
selected.
G Power supply switch
ON/OFF of main power supply of controller
H Speed adjusting knob
Setting of the value of output voltage
I JOG display lamp
It lights when JOG can drive.
Key
（Nominal name）
Short press（less than 2 seconds） Long press (2 seconds or longer)
FUNC/RESET
（Function）
Return from various modes to normal mode (normal
screen). Reset of emergency signal at abnormal
state.
Shift from normal mode (normal
screen) to function mode
DATA/ENTER
（Data）
Shift and return from normal mode (normal screen)
or operation lock mode to data display mode.
When data is changed, data is decided.
Shift from normal mode (normal
screen) to knob lock mode and
return
UP［Upward arrow］
(UP)
Increment of each function and data
(sending in order)
－
DOWN［downward arrow］
(DN or Down)
Decrement of each function and data
(sending backward)
－
RUN /JOG
（Run）
Instruction of beginning of driving when selected on
the operation panel. When the JOG function is
selected, driving continues while it is pressing.
－
STOP
（Stop）
Instruction of stopping of driving when selected on
the operation panel.
－
STOP＋UP (DN) In case when the data of J00 and J10 are changed －
UP＋DN It shifts to the data transfer mode. －
Caution
Only when 2 or 3 (both are on the operation
panel) is selected by the function J02, the
RUN/STOP key can be used.
Ｋ－ＥＣＦ２５
Ｖ．Ｆ． ＣＯＮＴＲＯＬＬＥＲ
ＲＵＮ
ＪＡＰＡＮ
ＡＣ１００－１１５／２００－２３０Ｖ ５０／６０Ｈｚ ２Ａ
ＦＵＮＣ
ＲＥＳＥＴ
ＤＡＴＡ
ＥＮＴＥＲ
ＳＴＯＰ
ＪＯＧ
ＲＵＮ
l
0
ＲｏＨＳ
A B
C
E
G
H
D
Outline of ke
y
operation
I
F
